USD 402.49
AC-powered compact PLC CPU with 24 DI, 16 relay DO, 20K-step logic, 4-axis 100 kHz counters and pulse outputs.

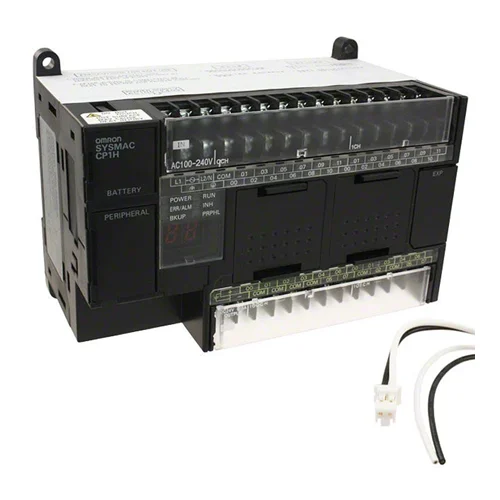

Compact CP1H CPU unit with AC power supply, 24 digital inputs, 16 relay outputs, 20K-step program capacity, 100 kHz high-speed counters on 4 axes, and 100 kHz pulse outputs on 4 axes. Designed for DIN-rail mounting in compact machine control, with optional expansion cards and USB/option-card communications support. Omron identifies this exact model as an AC-powered relay-output CP1H-X CPU unit. DigiKey lists the supply range as 100 to 240 VAC, 32K-word memory, battery backup, and 0 to 55°C operating temperature.
| Parameter | Value |
|---|---|
| Power supply | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 100 VA max. |
| Inrush current | 20 A max. at 100 to 120 VAC; 40 A max. at 200 to 240 VAC (cold start, room temperature) |
| External power supply | 300 mA at 24 VDC |
| Insulation resistance | 20 MΩ min. at 500 VDC between external AC terminals and GR terminals |
| Dielectric strength | 2,300 VAC at 50/60 Hz for 1 min between external AC and GR terminals |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power supply line) |
| Vibration resistance | JIS C60068-2-6, 10 to 57 Hz, 0.075-mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Shock resistance | JIS C60068-2-27, 147 m/s², three times each in X/Y/Z directions |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Power holding time | 10 ms min. |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function block definitions | 128 max. |
| Function block instances | 256 max. |
| Instruction length | 1 to 7 steps per instruction |
| Approx. instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.10 μs min.; Special instructions: 0.15 μs min. |
| Common processing time | 0.7 ms |
| Program capacity | 20K steps |
| Number of tasks | 288 (32 cyclic tasks and 256 interrupt tasks) |
| Input bits | 272 bits (17 words): CIO 0.00 to 16.15 |
| Output bits | 272 bits (17 words): CIO 100.00 to 116.16 |
| Serial PLC Link Area | 1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 |
| Work bits | 8,192 bits (512 words): W0.00 to W511.15 |
| CIO Area | 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 |
| TR Area | 16 bits: TR0 to TR15 |
| Holding Area | 8,192 bits (512 words): H0.00 to H511.15 |
| AR Area | Read-only: 7,168 bits (448 words); Read/write: 8,192 bits (512 words) |
| Timers | 4,096 bits: T0 to T4095 |
| Counters | 4,096 bits: C0 to C4095 |
| DM Area | 32 Kwords: D0 to D32767 |
| Data Register Area | 16 registers (16 bits): DR0 to DR15 |
| Index Register Area | 16 registers (32 bits): IR0 to IR15 |
| Task Flag Area | 32 flags (32 bits): TK0000 to TK0031 |
| Trace Memory | 4,000 words |
| Memory Cassette | CP1W-ME05M special memory cassette supported |
| Clock function | Supported |
| Inputs | 24 digital inputs |
| Outputs | 16 relay outputs |
| Expandable | 7 modules max |
| Communications | USB, option cards available |
| Memory size | 32K words |
| Mounting type | Chassis mount, DIN rail |
| Display type | LED - Red Characters |
| Number of characters per row | 2 |
| Features | Battery backup |
| Operating temperature | 0°C to 55°C |
| Approval agency | CE, cULus, Lloyd, NK |
| Weight | 1.7 lbs (771.1 g) |
The 24 digital inputs and 16 relay outputs support discrete sensors, solenoids, and interlocks, while the 20K-step program and cyclic scan control suit compact packaging lines.
Provides a small-footprint controller for synchronized machine sequencing without needing a larger PLC.
The 100 kHz high-speed counters and 100 kHz pulse outputs on 4 axes make it well suited for positioning, indexing, and coordinated motion in compact material handling systems.
Enables precise position tracking and pulse-based coordination for multiple axes in a single controller.
The AC 100 to 240 VAC supply, battery backup, USB connectivity, and option-card support make it practical for replacing older relay logic or legacy controllers in existing machines.
Simplifies retrofit into mixed-voltage industrial panels while preserving ladder-logic workflow and expansion capability.
