1. Multi-Axis Packaging Machine Positioning Control

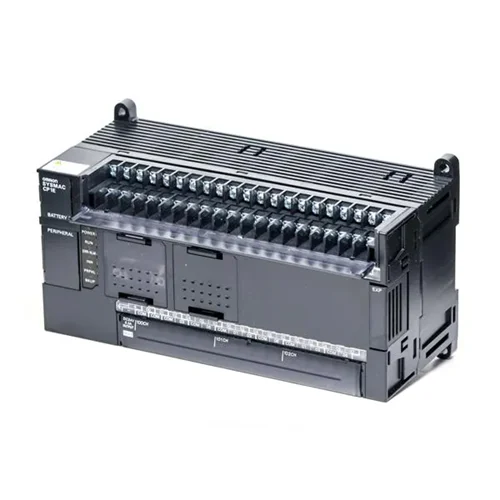

Using the CP1E-N60SDT-D's high-speed processing and built-in pulse outputs to command servo drives and step motors on a packaging conveyor. It coordinates the precise alignment of packaging materials, cutting knives, and labeling heads.
Problem SolvedSolves the issue of timing mismatch and synchronization lag between the conveyor feed and sealing mechanism by utilizing the built-in 100 kHz high-speed counters to read rotary encoders and adjust motor speeds on-the-fly.
Position ControlHigh-speed CounterTransistor OutputServo Integration
2. Conveyor System Sorting and Assembly Line Automation
Controls a high-density sorting line with numerous proximity sensors and pneumatic actuators. The 36 digital inputs monitor sensor states along the line, while the 24 sinking transistor outputs quickly trigger pneumatic valves.
Problem SolvedEliminates the need for expensive expansion modules or multi-rack configurations for medium-scale conveyor networks by offering 60 high-speed built-in I/O points directly on a single compact DIN-rail footprint.
Digital I/OSinking OutputsDIN-rail MountingCyclic Scan
3. Industrial Pump Station HMI & Inverter Coordination
Coordinates multiple water booster pumps through variable frequency drives (VFDs) and acts as the central hub for local touchscreens. Utilizing its built-in RS-232C port, the controller communicates directly with an HMI, while monitoring system pressure and driving VFD run/stop commands.
Problem SolvedSolves the communication gap between HMIs, drives, and the controller without requiring external serial cards, while operating on standard 24 VDC power supplies commonly available in pump control cabinets.
RS-232C Communication24 VDC PowerHMI IntegrationNPN Transistor
