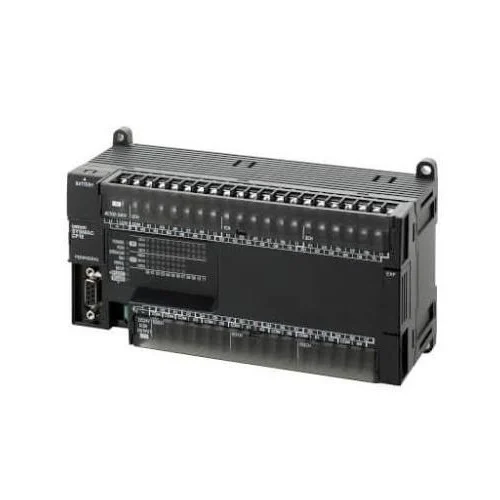

Name: Omron CP1E-N60S1DT-D Programmable Logic Controller - INOSAKI
SKU: Omron-CP1E-N60S1DT-D
Price: 332.09 USD
Availability: InStock

Technical Overview

Compact 24 VDC CPU with 36 inputs & 24 NPN sinking outputs. Features 8K steps memory, built-in USB, RS-232C, and RS-485 ports, plus 100kHz pulse outputs.

Key Features

Three built-in communication ports (USB 2.0, RS-232C, and RS-485) as standard for direct connection to HMIs, drives, and controllers without serial options boards
Sinking NPN transistor outputs (24 points, rated 0.3 A at 24 VDC)
36 digital 24 VDC inputs with fast input response times
8K-step program capacity and 8K-word data memory, expandable via CP1W series I/O modules
Compact housing depth of just 79 mm, reducing control cabinet space requirements by 20 mm compared to standard models
Equipped with 2-axis 100 kHz pulse outputs for high-precision motion and position control

Technical Specification Matrix

Parameter	Value
Supply Voltage	24 VDC (allowable range: 20.4 to 26.4 VDC)
Total I/O Points	60 (36 inputs, 24 outputs)
Input Type	24 VDC, 36 points
Output Type	Transistor Sinking (NPN), 24 points
Output Current Rating	0.3 A per point
Program Capacity	8K steps
Data Memory Capacity	8K words
Communications Interface	1x USB (Peripheral), 1x RS-232C, 1x RS-485 (Half-Duplex)
High-Speed Counters	100 kHz (2 axes), 10 kHz (4 axes), single phase
Pulse Outputs	100 kHz (2 axes)
IP Rating	IP20 (enclosure mounted in panel)
Current Consumption	0.31 A at 5 VDC, 0.02 A at 24 VDC
Physical Weight (kg)	0.67
Dimensions L x W x H (cm)	7.9 x 19.5 x 9

Industrial Applications

1. Compact Flow-Wrapping Packaging Motion Control

Utilizing the built-in 2-axis 100 kHz pulse outputs, this controller manages the synchronized positioning of servo motor drives for rotary sealing cutters and bag-feeding conveyors.

Problem Solved

Provides precise multi-axis motion and position control on compact vertical or horizontal form-fill-seal machines without needing expensive, bulky external motion modules, fitting easily into tight 79 mm-clearance electrical cabinets.

Pulse OutputsServo ControlHigh-Speed CountersTransistor NPN OutputVFFS

2. Decentralized Pump Skid VFD Speed Control Network

Leveraging the integrated RS-485 half-duplex port, the controller acts as a Modbus-RTU master to sequentially command and read speed parameters from multiple variable frequency drives on water filtration or pumping systems.

Problem Solved

Eliminates the cost and bulk of adding optional RS-485 serial boards, providing a single-component solution to interface with local instrumentation (flow switches, pressure transmitters) while maintaining serial communication to pump drives.

RS-485Modbus-RTUVariable Frequency DriveSkid IntegrationSerial Port

3. High-Density Sensor Sortation Conveyor System

Utilizing the high density of 60 physical local I/O points (36 inputs / 24 outputs), the controller processes optical and proximity sensor signals through high-speed counters to trigger fast-acting NPN-switched pneumatic reject solenoids.

Problem Solved

Solves signal latency and early failure issues common with mechanical relays in high-speed sorting, allowing the direct switching of 0.3A solenoids with microsecond-level response times (<1 ms cycle time).

NPN OutputSolenoid ValveHigh-Density I/OCycle TimeSortation
