USD 90.35
Compact DIN-rail PLC CPU, 100-240 VAC supply, 6 digital inputs, 4 transistor outputs, 2K steps, USB, 2K-word memory.

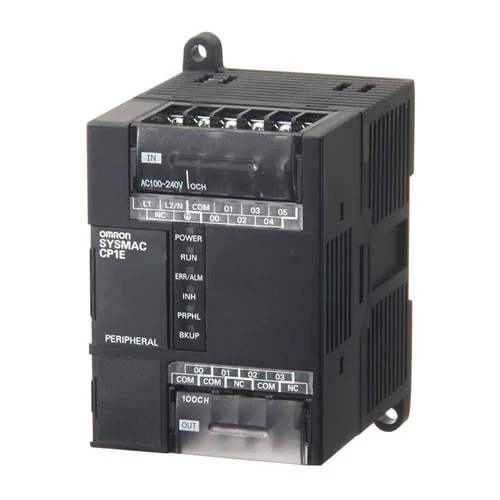

Basic-model CP1E CPU unit with 10 total I/O points, 100 to 240 VAC supply, 6 digital inputs, and 4 transistor outputs in sourcing configuration. Official Omron and distributor listings identify it as a compact DIN-rail programmable logic controller with USB communications, 2K-step program capacity, and 2K-word data memory. The platform is intended for small machine control and panel automation where a simple AC-powered PLC with solid-state outputs is required.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC |
| Inputs | 6 digital inputs |
| Outputs | 4 transistor outputs (sourcing) |
| Program capacity | 2K steps |
| Data memory capacity | 2K words |
| Communications | USB |
| Mounting type | Chassis mount, DIN rail |
| Operating temperature | 0°C to 55°C |
| Approval agencies | CE, cULus, Lloyd, NK |
| Product family | CP1E basic CPU unit |
| Model designation | E-type CPU unit with 10 I/O points |
The 100 to 240 VAC supply and 4 transistor outputs suit small conveyor sections, diverters, and simple sequencing panels that need reliable solid-state switching.
Eliminates the need for a larger controller when only modest I/O and straightforward sequencing are required.
With 6 digital inputs, 4 outputs, and 2K-step memory, the unit can handle basic sensors, actuators, and interlocked machine cycles in compact packaging stations.
Provides enough control capacity for compact machine logic without overengineering the panel.
The non-expandable basic CPU and USB programming make it well suited for fixed-function interlock panels, starter logic, and small auxiliary equipment supervision.
Offers a low-complexity controller for simple panel automation with minimal wiring and commissioning effort.
