USD 101.00

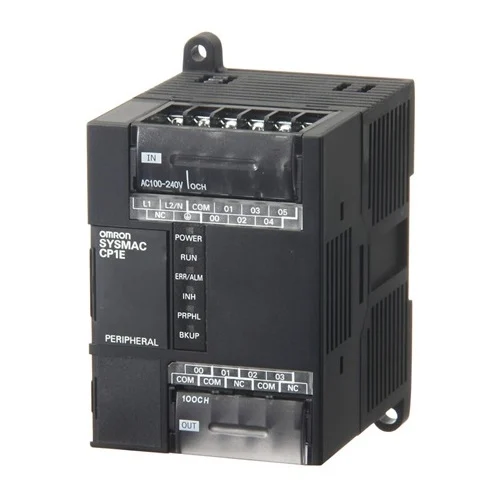

10-point PLC CPU, 100-240 VAC, 6 inputs, 4 sinking transistor outputs, USB, 2K steps, DIN-rail mount.
Compact CP1E-series CPU unit with built-in USB, 6 digital inputs, 4 transistor outputs (sinking), and 100 to 240 VAC supply. The official Omron lineup identifies it as a 10-point E-type CPU unit with 2K-step program capacity and 2K-word data memory, while distributor data confirms chassis/DIN-rail mounting and active PLC controller status.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC |
| Input count | 6 digital inputs |
| Output count | 4 digital outputs |
| Output type | Transistor (sinking) |
| Program capacity | 2K steps |
| Data memory capacity | 2K words |
| Communication port | USB |
| Mounting type | Chassis mount, DIN rail |
| Operating temperature | 0 to 55 °C |
| Product weight | 300 g max. (official OMRON hardware manual); DigiKey lists 299.82 g |
| Dimensions (H x D x W) | 90 mm x 85 mm x 66 mm |
| Enclosure | Mounted in a panel |
Controls compact machines with up to 10 local points where 6 inputs and 4 transistor outputs are sufficient for sensors and fast DC actuators.
Replaces relay-only control with deterministic logic in a compact DIN-rail package.
Suitable for simple indexers, gate actuators, and presence-sensing stations that need fast sinking transistor outputs and basic logic memory.
Provides direct switching for DC loads without external interposing for every output.
Fits retrofit projects where a small panel-mounted PLC must replace hardwired relay logic and operate from universal AC mains.
Simplifies modernization while keeping wiring and panel footprint small.
