Industrial Power Supply Unit: 24 VDC nominal input (20.4–26.4 VDC range) generating regulated 5 VDC/23 W and 24 VDC/55 W outputs. Specifications include IEC 60068-compliant shock/vibration resistance, 510 VAC dielectric strength, and a maximum power consumption of 101.7 W, optimized for CK3M/CK5M PMAC architectures.

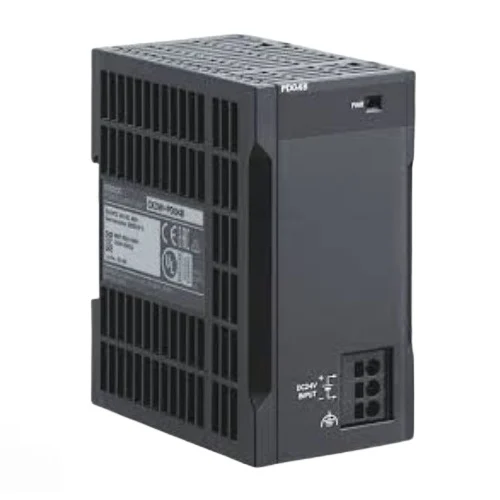

The Omron CK3W-PD048 is an industrial-grade Power Supply Unit exclusively designed to power the highly advanced CK3M and CK5M Programmable Multi-Axis Controllers. Requiring a 24 VDC input, this compact DIN-rail module delivers regulated 5 VDC and 24 VDC simultaneous outputs, providing up to 23 W and 55 W respectively. It is engineered to sustain the high-speed computational power required by multi-axis precision machining, offering robust resilience with IEC 60068-compliant vibration and shock resistance. Its screwless ferrule wiring block and modular slider connection facilitate streamlined, tool-free panel assembly.
| Parameter | Value |
|---|---|
| Input Power Supply Voltage | 24 VDC |
| Allowable Input Voltage Range | 20.4 to 26.4 VDC |
| Rated Output Voltage | 5 VDC / 24 VDC |
| Maximum Output Power | 23 W (5 VDC), 55 W (24 VDC) |
| Maximum Power Consumption | 101.7 W max |
| Dimensions (H x D x W) | 90 mm x 80 mm x 45 mm |
| Weight | 130 g max |
| Operating Ambient Temperature | 0 to +55 °C |
| Mounting | DIN rail |
| Isolation Method | Not isolated |
| Dielectric Strength | 510 VAC (1 minute, 5 mA max leakage) |
| Shock & Vibration Resistance | Conforms to IEC 60068-2-6 / IEC 60068-2-27 |
Providing highly stable 5V and 24V DC power to the CK3M multi-axis controller in precision CNC equipment, ensuring uninterrupted logic execution for sub-millisecond servo loops.
Eliminates power-related jitter and logic dropout in high-speed trajectory processing environments where control calculation speeds reach 50 µs per 5 axes.
Powering the CK3M Programmable Multi-Axis Controller in a cleanroom-based wafer transfer robot mechanism. The compact 45mm width footprint allows for streamlined control cabinets.
Meets the strict spatial constraints of semiconductor machinery control panels while safely powering vibration-free multi-motor linear and rotary axis synchronization.
Serves as the central logic power hub for the CK3M/CK5M controller managing advanced EtherCAT slaves, high-speed vision systems, and custom servo algorithms across complex robotic pick-and-place lines.
Prevents power delivery limitations and voltage sags under high processing loads when continuous heavy matrix calculations are performed, backed by the 101.7 W max input load rating.
