Name: Omron CK3W-AX1515N 4-Axis Interface Unit True DAC NPN - INOSAKI
SKU: Omron-CK3W-AX1515N
Price: 1411.78 USD
Availability: InStock

Technical Overview

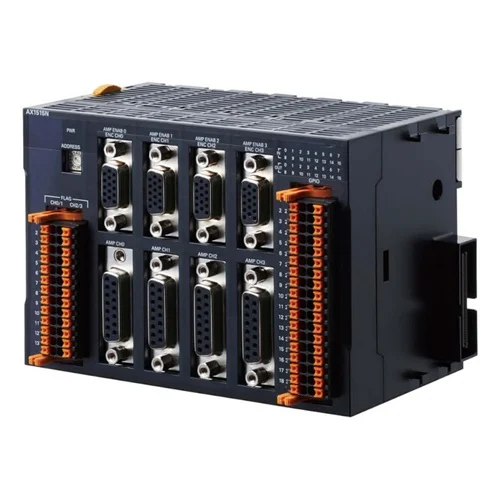

The Omron CK3W-AX1515N is an advanced 4-Axis Interface Unit designed for the modular CK3M/CK5M Programmable Multi-Axis Controller series. It provides precise high-speed multi-axis control via analog commands, supporting a True DAC (Digital-to-Analog Converter) output for highly smooth motion profiles. This unit seamlessly integrates up to four axes per module and can connect directly to analog input servo drives. Engineered with robust compatibility, it supports digital quadrature, pulse, and serial encoders. To augment machine control synchronization, the CK3W-AX1515N features an NPN output configuration and includes 16 built-in general-purpose digital inputs and 16 digital outputs.

Key Features

Controls up to 4 individual axes per CK3W-AX unit
DA output (True DAC) for ultra-smooth, high-speed analog encoder connections
Broad encoder compatibility: Pulse + direction, phase difference, digital quadrature, and serial encoders
20 Digital Inputs: 4 high-speed (10MHz) line receiver inputs and 16 general-purpose NPN inputs
20 Digital Outputs: 4 pulse outputs (line driver, 10MHz) and 16 general-purpose NPN outputs
Compact IP20 enclosure rated for standard DIN rail mounting
Provides an encoder power supply output of 5 VDC at 500 mA per channel (1A total max per unit)

Technical Specification Matrix

Parameter	Value
Product Type	Axial Interface Unit
Output Type	DA Output (True DAC)
Axis Capacity	Up to 4 Axes
Digital I/O Type	NPN
Encoder Support	Pulse Encoder / Serial Encoder / Digital Quadrature
Total Digital Inputs	20 (4x 10MHz Line Receiver, 16x General Purpose NPN)
Total Digital Outputs	20 (4x 10MHz Line Driver Pulse, 16x General Purpose NPN)
Power Consumption (5 VDC)	4.5 W max
Power Consumption (24 VDC)	12.5 W max
Operating Temperature	0°C to +55°C
Degree of Protection	IP20
Dimensions (H x W x D)	90 mm x 130 mm x 80 mm
Mounting	DIN Rail
Weight	520 g max

Industrial Applications

1. Precision CNC Machining & Milling Contouring

Utilizing the CK3W-AX1515N's True DAC analog output, the Omron CK3M controller provides exceptionally smooth, high-resolution velocity and torque commands directly to analog servo drives. This configuration is critical for mitigating machining surface imperfections and reducing quantization noise typically seen with standard pulse-train outputs on multi-axis setups.

Problem Solved

Achieving nanometer-level precision and ultra-smooth complex contouring on multi-axis CNC machines where discrete digital lag or jitter can compromise surface finish quality.

True DACanalog outputmulti-axis controlanalog servo driveCNC contouring

2. High-Speed Web Processing and Packaging Synchronization

The unit integrates its multi-axis analog control with digital quadrature or serial encoders to easily capture a master-axis position with virtually zero latency. It processes these inputs alongside its 16 built-in general-purpose NPN digital I/Os, allowing for immediate high-speed triggering of cutting or sealing mechanisms across up to 4 slave axes.

Problem Solved

Perfectly synchronizing multiple continuous moving axes with a master encoder signal while simultaneously managing local high-speed sensor triggering during rapid web manufacturing.

Digital quadrature encoder10MHz line receiver16 NPN I/Ohigh-speed synchronizationweb processing

3. Semiconductor Wafer Handling Robotics

In delicate pick-and-place systems inside clean rooms, erratic step-changes in motor voltage can cause mechanical resonance or wafer damage. The True DAC analog interface operates seamlessly with accurate serial absolute encoders to command precise movements, ensuring vibration-free, ultra-smooth acceleration profiles in a compact IP20 DIN-rail form factor.

Problem Solved

Preventing mechanical resonance, vibration, and resulting breakage of delicate materials by demanding highly smooth and continuous servo commands instead of jagged pulse adjustments.

True DAC analog controlserial encodersIP20DIN rail mountinglow vibration control
