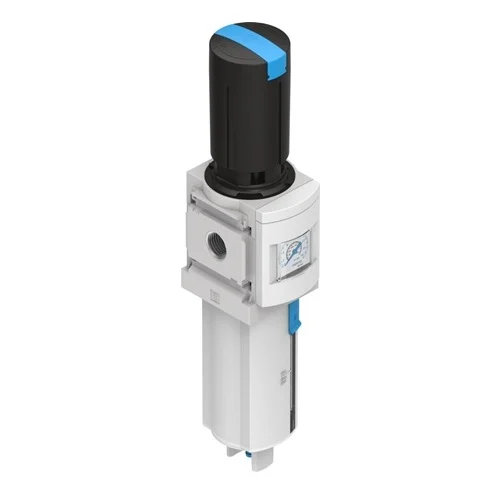

1. Main Air Supply for Robotic Welding Cell
Functions as the primary point-of-use air preparation unit for a robotic welding station, regulating plant air down to operating pressure for pneumatic clamping fixtures and welding tip dressers. The unit is mounted on the safety fence or control cabinet.
Problem SolvedEliminates pressure fluctuations from the main plant supply that could cause inconsistent clamping force, ensuring weld accuracy. The 40 µm filter protects sensitive valve islands from compressor scale and rust particles commonly found in older factory pipework.
Standard nominal flow rate 4500 l/minGrade of filtration 40 µmMetal bowlOperating pressure 0.8 bar ... 20 bar
2. Pneumatic Distribution for Automated Palletizer
Installed at the air intake of a high-speed end-of-line palletizing machine to regulate air pressure for heavy-duty lifting cylinders, pushers, and vacuum gripper generators.
Problem SolvedSolves the issue of 'pressure droop' during high-demand cycles (e.g., simultaneous lifting) via its high flow capacity (4500 l/min), preventing dropped loads or timing errors. The robust metal bowl protects the unit from accidental impacts in busy logistics environments.
Pneumatic connection G1/2Pressure regulation range 0.5 bar ... 12 barMax. pressure hysteresis 0.25 barProduct weight 1087 g
3. Air Blast & Actuation for CNC Machining Center
Regulates air pressure for the Automatic Tool Changer (ATC) carousel and the spindle taper cleaning 'air blast' on a vertical CNC milling machine.
Problem SolvedProvides the high instantaneous flow required to effectively blow chips off the tool holder during changes, while maintaining stable pilot pressure for the release mechanism. The robust metal bowl and die-cast housing withstand the harsh machine shop environment involving potential coolant mist and vibration.
Material housing Die-cast aluminiumCorrosion resistance class CRC 2Operating medium Inert gasesMedia temperature -10 °C ... 60 °C
