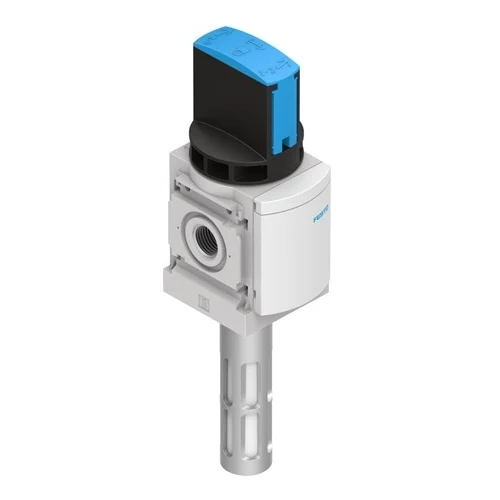

1. Main Pneumatic Isolation for Automated Packaging Lines
Used as a primary manual shut-off valve at the air preparation stage of high-speed automated packaging machinery to securely cut off supply and vent downstream air during routine servicing or maintenance.
Problem SolvedEnsures safe Lockout/Tagout (LOTO) procedures by safely exhausting downstream pressure via an integrated silencer, preventing accidental actuation of cylinders while satisfying high machine air demands without starvation.
8700 l/min nominal flow rate3/2 bistable valve functionIntegrated silencerManual rotary gate valve
2. Sectional Depressurization in Automotive Assembly Jigs
Deployed to manually isolate and vent specific pneumatic clamping zones within heavy-duty automotive welding and assembly stations without affecting the main facility supply line.
Problem SolvedAllows operators to safely swap tooling or perform localized maintenance. The rugged die-cast aluminum housing and CRC 2 rating protect against harsh factory wear, while the G1/2 port effectively feeds localized high-demand clamping manifolds.
G1/2 pneumatic connectionDie-cast aluminium housingCorrosion resistance class CRC 2-10 °C ... 60 °C ambient temperature
3. Branch Line Isolation for Compressed Air Ring Mains
Acts as a manual branch isolation valve within industrial compressed air distribution networks, allowing facility managers to shut off inert gas or compressed air flow to specific production halls or machine groups.
Problem SolvedPrevents complete facility downtime by enabling localized shut-offs for leak repairs or pipe routing. The robust 18 bar maximum pressure rating safely handles high-pressure main lines, minimizing pressure drops across the distribution branch.
Operating pressure 0 bar ... 18 barInert gases compatibilityDirect piloting typeC value 30.8 l/sbar
