$ 68.75
G1/4 filter regulator, 5 µm grade, 1200 l/min flow. Features 0.5-12 bar regulation, manual rotating drain, and rotary knob with detent lock.

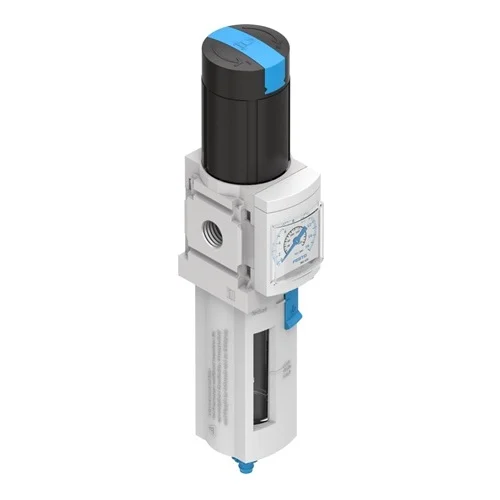

The MS4-LFR-1/4-D7-CRM-AS-Z is a high-performance filter regulator from Festo's MS series, designed for industrial compressed air preparation. It provides a standard nominal flow rate of 1200 l/min with a 5 µm filtration grade. This unit features a pressure regulation range of 0.5 to 12 bar, an integrated analog pressure gauge, and a manual rotating condensate drain. Constructed with a die-cast aluminium housing and a plastic bowl guard, it offers secondary venting and a return flow function to ensure constant output pressure and reliable pneumatic performance.
| Parameter | Value |
|---|---|
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator with pressure gauge |
| Max. condensate volume | 19 ml |
| Controller function | Output pressure constant With secondary venting With return flow function |
| Bowl guard | Plastic bowl guard |
| Degree of condensate separation | >75 % |
| Symbol | 00991589 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure (MPa) | 0.08 MPa ... 1.4 MPa |
| Operating pressure (bar) | 0.8 bar ... 14 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1200 l/min |
| Operating medium | Inert gases |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C ... 60 °C |
| Suitable for use with food | See supplementary material information |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [6:4:4] |
| Media temperature | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Pore size | <5 µm |
| Product weight | 275 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS-compliant |
| Material sub-base | Die-cast aluminium |
| Material control panel | PA POM |
| Material seals | NBR |
| Material filter | PE |
| Material housing | Die-cast aluminium |
| Material membrane | NBR |
| Material bowl | PC |
| Material separating plate | POM |
Serves as the primary air preparation unit for pilot-operated valve manifolds in automated packaging lines, ensuring both air cleanliness and safety compliance.
Standard regulators trap downstream pressure during Emergency Stops, creating hazardous stored energy. Additionally, standard 40µm filters allow fine particles that jam sensitive pilot valve spools.
Provides a regulated, clean air barrier to the labyrinth seals of high-speed machining spindles to prevent coolant and chip ingress.
Contaminants in shop air or insufficient purge pressure can ruin expensive spindle bearings. The 5µm filter removes fine dust, while the regulator maintains constant positive pressure despite line fluctuations.
Regulates operating pressure for end-of-arm tooling (EOAT) on pick-and-place robots handling fragile electronic components.
Fluctuating plant air pressure causes grippers to crush delicate parts. This unit steps down high input pressure (up to 14 bar) to a stable, low range (0.5-12 bar) to ensure consistent, non-destructive grip force.
