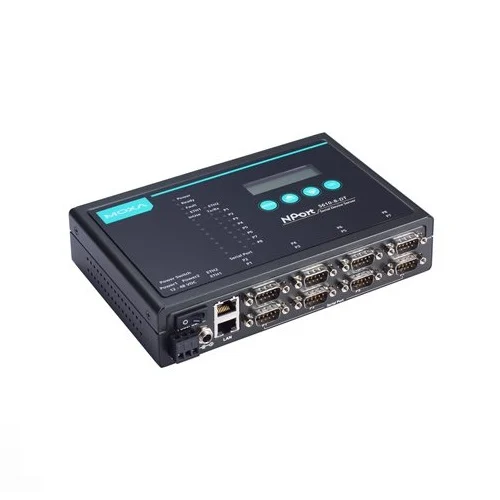

8-port RS-232 to Ethernet device server with dual 10/100M ports for cascading. Features 15kV ESD protection, 12-48 VDC power, and an LCD configuration panel.
8-port RS-232 to Ethernet device server with dual 10/100M ports for cascading. Features 15kV ESD protection, 12-48 VDC power, and an LCD configuration panel.
| Parameter | Value |
|---|---|
| Number of Serial Ports | 8 |
| Serial Standard | RS-232 |
| Serial Connector | DB9 Male |
| Ethernet Ports | 2 x 10/100BaseT(X) RJ45 |
| Power Input | 12 to 48 VDC (Dual inputs) |
| Input Current | 611 mA @ 12 VDC |
| ESD Protection | 15 kV (Built-in) |
| Operating Temperature | 0 to 60°C |
| Housing Material | Metal |
| Physical Weight (kg) | 1.57 |
| Dimensions L x W x H (cm) | 12.5 x 19.7 x 4.4 |
Connects multiple legacy RS-232 PLCs or sensors to a central supervisory network, utilizing the device's Real COM mode and 15 kV ESD protection in electrically noisy environments.
Eliminates the need for costly PC-based serial expansion cards by networking remote legacy RS-232 equipment onto modern Ethernet LANs.
Integrates up to eight RS-232 serial card readers or biometric terminals into an IP-based security network, utilizing the dual cascade-capable Ethernet ports to simplify facility wiring.
Reduces wiring complexity and switch port requirements by daisy-chaining Ethernet connections directly through the device server.
Networks legacy serial payment terminals and receipt printers onto a local LAN for centralized management, relying on the compact desktop housing and built-in LCD interface for quick field setup.
Provides a robust, space-saving bridge to integrate RS-232 peripheral devices into contemporary IP-based retail architectures without PC intervention.
