USD 912.44

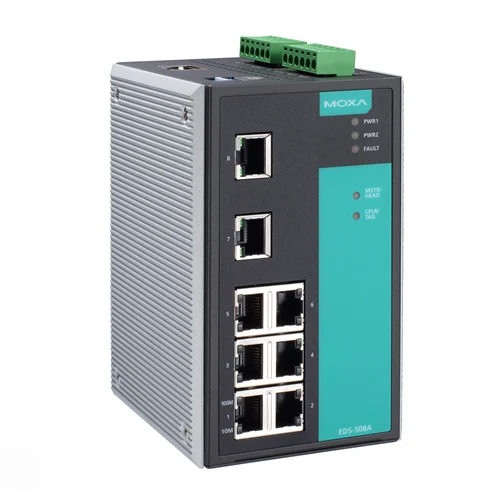

8-port Layer 2 managed Ethernet switch. Features Turbo Ring & Turbo Chain with <20ms recovery, IP30 metal housing, redundant 12/24/48 VDC power, DIN-rail.
8-port Layer 2 managed Ethernet switch. Features Turbo Ring & Turbo Chain with <20ms recovery, IP30 metal housing, redundant 12/24/48 VDC power, DIN-rail.
| Parameter | Value |
|---|---|
| Ethernet Ports | 8 x 10/100BaseT(X) RJ45 |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | 0.22 A @ 24 VDC |
| Redundancy Protocols | Turbo Ring v1/v2, Turbo Chain, RSTP, STP, MSTP |
| IP Rating | IP30 |
| Housing Material | Metal |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Physical Weight (kg) | 1.04 |
| Dimensions L x W x H (cm) | 10.5 x 8.02 x 13.5 |
Provides ultra-reliable Ethernet connectivity for PLCs, HMIs, and robotic cells on the factory floor, utilizing proprietary ring protocols to prevent network downtime during physical link failures.
Eliminates costly production halts caused by single-point network failures by ensuring sub-20ms packet recovery across interconnected industrial automation nodes.
Deploys in remote pump stations or electrical substations to aggregate sensor data over Modbus TCP, transmitting vital diagnostics securely to central SCADA network servers.
Resolves the challenge of managing multiple remote I/O and telemetry devices under fluctuating power scenarios by operating seamlessly on 12/24/48 VDC dual power feeds.
Acts as a central data aggregation switch in traffic control cabinets, handling camera feeds, toll collection data, and signaling instructions in uncontrolled enclosure environments.
Solves environmental vulnerability by using a rugged metal chassis and wide voltage range to maintain high-uptime traffic management without the need for active cabinet cooling.
