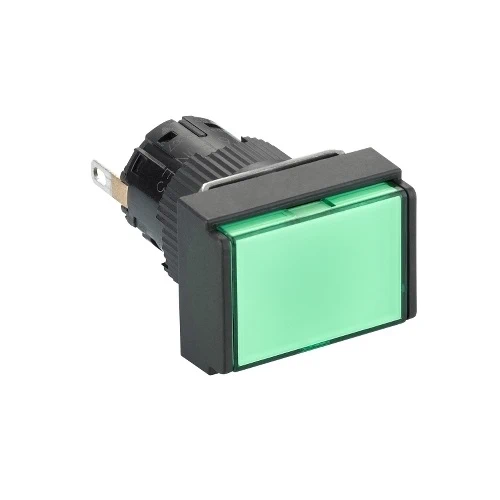

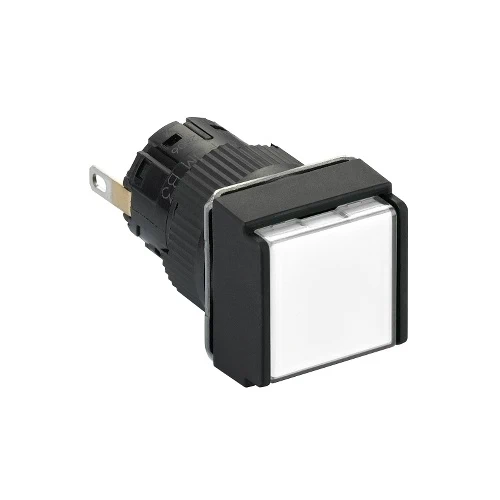

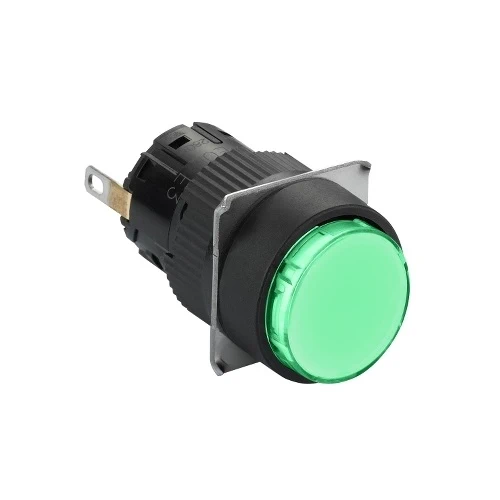

Model Name	XB6EAV3BP	XB6EAV4BP	XB6ECV1BP	XB6EDV3BP
Range of Product	Harmony XB6E	Harmony XB6E	Harmony XB6E	Harmony XB6E
Product or Component Type	Monolithic pilot light	Monolithic pilot light	Monolithic pilot light	Monolithic pilot light
Device short name	XB6E	XB6E	XB6E	XB6E
Bezel material	Plastic	Plastic	Plastic	Plastic
Mounting diameter	0.6 in (16 mm)	0.6 in (16 mm)	0.6 in (16 mm)	0.6 in (16 mm)
Sale per indivisible quantity	5	5	5	5
Shape of signaling unit head	Round	Round	Square	Rectangular
Cap/operator or lens colour	Green	Red	White	Green
Light source	Integral LED	Integral LED	Integral LED	Integral LED
Light block supply	Direct	Direct	Direct	Direct
[Us] rated supply voltage	24 V DC polarised	24 V DC polarised	24 V DC polarised	24 V DC polarised
Complementary
Net Weight	0.013 lb(US) (0.006 kg)	0.013 lb(US) (0.006 kg)	0.013 lb(US) (0.006 kg)	0.013 lb(US) (0.006 kg)
Overvoltage category	II conforming to IEC 60536	II conforming to IEC 60536	II conforming to IEC 60536	II conforming to IEC 60536
Operating position	Any position	Any position	Any position	Any position
Marking	CE	CE	CE	CE
Connections – terminals	Insulated faston 2.8 x 0.5 mm	Insulated faston 2.8 x 0.5 mm	Insulated faston 2.8 x 0.5 mm	Insulated faston 2.8 x 0.5 mm
	Solder terminal <= 0.75 mm² AWG 19	Solder terminal <= 0.75 mm² AWG 19	Solder terminal <= 0.75 mm² AWG 19	Solder terminal <= 0.75 mm² AWG 19
	Fast connector socket	Fast connector socket	Fast connector socket	Fast connector socket
Tightening torque	5.3…8.9 lbf.in (0.6…1 N.m)	5.3…8.9 lbf.in (0.6…1 N.m)	5.3…8.9 lbf.in (0.6…1 N.m)	5.3…8.9 lbf.in (0.6…1 N.m)
[Ui] rated insulation voltage	250 V 3)IEC 60947-1	250 V 3)IEC 60947-1	250 V 3)IEC 60947-1	250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage	2.5 kV IEC 60947-1	2.5 kV IEC 60947-1	2.5 kV IEC 60947-1	2.5 kV IEC 60947-1
Signalling type	Steady	Steady	Steady	Steady
Current Consumption	10 mA	10 mA	10 mA	10 mA
Service life	30000 h	30000 h	30000 h	30000 h
Environment
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	-40…158 °F (-40…70 °C)	-40…158 °F (-40…70 °C)	-40…158 °F (-40…70 °C)
ambient air temperature for operation	14…131 °F (-10…55 °C)	14…131 °F (-10…55 °C)	14…131 °F (-10…55 °C)	14…131 °F (-10…55 °C)
IP degree of protection	IP65 IEC 60529	IP65 IEC 60529	IP65 IEC 60529	IP65 IEC 60529
Standards	JIS C 852	IEC 60947-5-1	JIS C 852	JIS C 852
	IEC 60947-5-1	CSA C22.2 No 14	IEC 60947-1	IEC 60947-5-1
	UL 508	JIS C 852	CSA C22.2 No 14	UL 508
	JIS C8201-5-1	JIS C8201-5-1	IEC 60947-5-1	IEC 60947-1
	IEC 60947-1	UL 508	JIS C8201-5-1	JIS C8201-5-1
	CSA C22.2 No 14	IEC 60947-1	UL 508	CSA C22.2 No 14
	JIS C8201-1	JIS C8201-1	JIS C8201-1	JIS C8201-1
Product Certifications	cURus	cURus	CCC	CCC
	CCC	CCC	cURus	cURus
Vibration resistance	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category	US10CS222459	US10CS222459	US10CS222459	US10CS222459
Discount Schedule	0CS2	0CS2	0CS2	0CS2
GTIN	3389110624731	3389110624748	3389110626421	3389110630169
Returnability	No	No	No	No
Country of origin	US	CN	CN	CN
Packing Units
Unit Type of Package 1	PCE	PCE	PCE	PCE
Number of Units in Package 1	1	1	1	1
Package 1 Height	3.54 in (9.000 cm)	1.18 in (3.000 cm)	0.94 in (2.400 cm)	3.54 in (9.000 cm)
Package 1 Width	1.18 in (3.000 cm)	3.74 in (9.500 cm)	1.50 in (3.800 cm)	1.18 in (3.000 cm)
Package 1 Length	2.63 in (6.670 cm)	3.15 in (8.000 cm)	3.74 in (9.500 cm)	3.94 in (10.000 cm)
Package 1 Weight	0.353 oz (10.000 g)	0.353 oz (10.000 g)	0.388 oz (11.000 g)	0.423 oz (12.000 g)
Unit Type of Package 2	BB1	BB1	BB1	BB1
Number of Units in Package 2	5	5	5	5
Package 2 Height	3.54 in (9.000 cm)	1.18 in (3.000 cm)	0.98 in (2.500 cm)	3.54 in (9.000 cm)
Package 2 Width	1.18 in (3.000 cm)	3.74 in (9.500 cm)	3.74 in (9.500 cm)	1.18 in (3.000 cm)
Package 2 Length	7.87 in (20.000 cm)	7.87 in (20.000 cm)	7.68 in (19.500 cm)	7.87 in (20.000 cm)
Package 2 Weight	1.905 oz (54.000 g)	1.905 oz (54.000 g)	1.975 oz (56.000 g)	2.116 oz (60.000 g)
Unit Type of Package 3	S01	S01	S01	S01
Number of Units in Package 3	50	50	50	50
Package 3 Height	5.91 in (15.000 cm)	5.91 in (15.000 cm)	5.91 in (15.000 cm)	5.91 in (15.000 cm)
Package 3 Width	5.91 in (15.000 cm)	5.91 in (15.000 cm)	5.91 in (15.000 cm)	5.91 in (15.000 cm)
Package 3 Length	15.75 in (40.000 cm)	15.75 in (40.000 cm)	15.75 in (40.000 cm)	15.75 in (40.000 cm)
Package 3 Weight	27.372 oz (776.000 g)	27.372 oz (776.000 g)	29.665 oz (841.000 g)	29.489 oz (836.000 g)
Contractual warranty
Warranty	18 months	18 month	18 months	18 months
