Mitutoyo Vernier Caliper – Series 530 – 0-150mm/0-6″, 0,02mm, Metric/Inch
$ 70.62
SKU: Mitutoyo 530-312
Description: Mitutoyo Vernier Caliper, Manufacturer Part Number 530-312
A Mitutoyo dual-scale vernier caliper equipped with standard outside and inside jaws. Hardened stainless steel construction with easy-to-read, satin-chromed scales.
Mitutoyo Vernier Caliper Feature:
| With upper locking screw: |
Yes
|
| Range: |
0 – 150 mm
|
| Depth bar: |
flat
|
| Max. Permissible Error E MPE: |
±0,03 mm
|
| Max. Permissible Error S MPE: |
±0,05 mm
|
| Delivered: |
In a case
|
| Mass: |
143 g
|

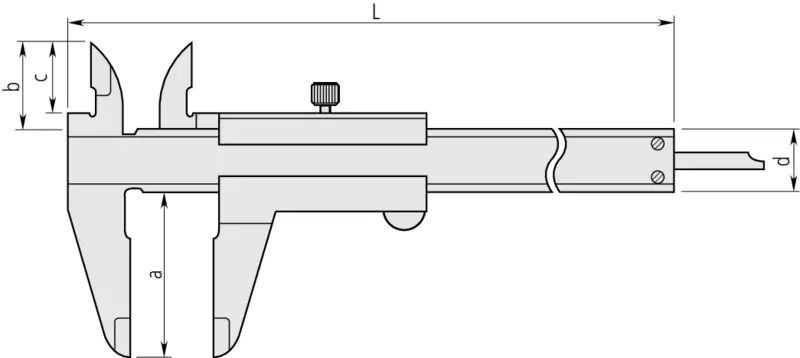

Mitutoyo Vernier Caliper Dimensions
| L: |
229 mm
|
| a: |
40 mm
|
| b: |
21 mm
|
| c: |
17 mm
|
| d: |
16 mm
|
Variants
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-150mm, 0,02mm, Metric | 0-1000mm, 0,05mm, Metric | ||
| Mitutoyo Vernier Caliper Part Number: 530-122 | Mitutoyo Vernier Caliper Part Number: 530-502 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-200mm, 0,02mm, Metric | 0-200mm/0-8″, 0,02mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-123 | Mitutoyo Vernier Caliper Part Number: 530-118 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-300mm, 0,02mm, Metric | 0-300mm/0-12″, 0,02mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-124 | Mitutoyo Vernier Caliper Part Number: 530-119 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-100mm, 0,05mm, Metric | 0-150mm/0-6″, 0,05mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-100 | Mitutoyo Vernier Caliper Part Number: 530-104 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper with Depth Meas. Rod |  |
Vernier Caliper with Thread Table |
| 0-150mm, 0,05mm, Metric | 0-150mm/0-6″, 0,05mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-102 | Mitutoyo Vernier Caliper Part Number: 530-316 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-150mm, 0,05mm, Metric | 0-200mm/0-8″, 0,05mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-101 | Mitutoyo Vernier Caliper Part Number: 530-114 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-200mm, 0,05mm, Metric | 0-300mm/0-12″, 0,05mm, Metric/Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-108 | Mitutoyo Vernier Caliper Part Number: 530-115 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-300mm, 0,05mm, Metric | 0-6″, 0,001″, Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-109 | Mitutoyo Vernier Caliper Part Number: 530-105 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Vernier Caliper |  |
Vernier Caliper |
| 0-600mm, 0,05mm, Metric | 0-8″, 0,001″, Inch | ||
| Mitutoyo Vernier Caliper Part Number: 530-501 | Mitutoyo Vernier Caliper Part Number: 530-116 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my |
Accessories
Standard accessories:
 |
Depth Base Attachment for Caliper, 75mm width |
| 75mm width for 100, 150, 200mm Range | |
| 050083-10 | |
| For more : sales@inosaki.my | |
 |
Depth Base Attachment for Caliper |
| 100mm width for 100, 150, 200mm Range | |
| 050084-10 | |
| For more : sales@inosaki.my |
| Weight | 0.143 kg |
|---|---|
| Dimensions | 22.9 cm |
