Mitutoyo Outside Micrometer Economy Design, Manufacturer Part Number 103-130

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

Mitutoyo Outside Micrometer Economy Design Features:

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	25-50 mm
Graduation:	0,001 mm
Maximum Permissible Error J MPE:	±2 µm
Flatness:	0,6 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish
Mass:	215 g
Measuring spindle:	With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 – 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)

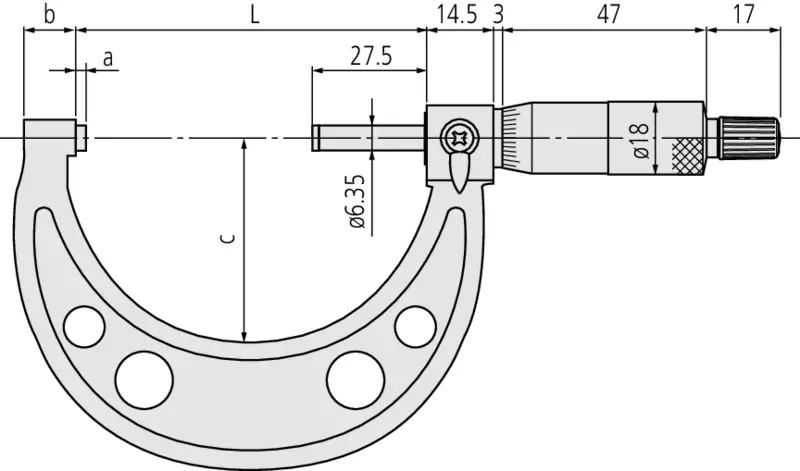

Mitutoyo Outside Micrometer Economy Design Dimensions

L:	55.3 mm
a:	2.8 mm
b:	10 mm
c:	38 mm
d:	6.35 mm

Variants

Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
0-25mm, 0,001mm	325-350mm	675-700mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-129	Mitutoyo Outside Micrometer Economy Design Part Number: 103-150	Mitutoyo Outside Micrometer Economy Design Part Number: 103-164
More Info	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
0-25mm	350-375mm	700-725mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-137	Mitutoyo Outside Micrometer Economy Design Part Number: 103-151	Mitutoyo Outside Micrometer Economy Design Part Number: 103-165
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
25-50mm	375-400mm	725-750mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-138	Mitutoyo Outside Micrometer Economy Design Part Number: 103-152	Mitutoyo Outside Micrometer Economy Design Part Number: 103-166
More Info	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
50-75mm	400-425mm	750-775mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-139-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-153	Mitutoyo Outside Micrometer Economy Design Part Number: 103-167
More Info	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
75-100mm	425-450mm	775-800mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-140-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-154	Mitutoyo Outside Micrometer Economy Design Part Number: 103-168
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
100-125mm	450-475mm	800-825mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-141-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-155	Mitutoyo Outside Micrometer Economy Design Part Number: 103-169
For more : sales@inosaki.my	For more : sales@inosaki.my	sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
125-150mm	475-500mm	825-850mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-142-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-156	Mitutoyo Outside Micrometer Economy Design Part Number: 103-170
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
150-175mm	500-525mm	850-875mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-143-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-157	Mitutoyo Outside Micrometer Economy Design Part Number: 103-171
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
175-200mm	525-550mm	875-900mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-144-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-158	Mitutoyo Outside Micrometer Economy Design Part Number: 103-172
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
200-225mm	550-575mm	900-925mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-145-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-159	Mitutoyo Outside Micrometer Economy Design Part Number: 103-173
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
225-250mm	575-600mm	925-950mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-146-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-160	Mitutoyo Outside Micrometer Economy Design Part Number: 103-174
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
250-275mm	600-625mm	950-975mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-147-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-161	Mitutoyo Outside Micrometer Economy Design Part Number: 103-175
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design	Outside Micrometer Economy Design
275-300mm	625-650mm	975-1000mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-148-10	Mitutoyo Outside Micrometer Economy Design Part Number: 103-162	Mitutoyo Outside Micrometer Economy Design Part Number: 103-176
For more : sales@inosaki.my	For more : sales@inosaki.my	For more : sales@inosaki.my
Outside Micrometer Economy Design	Outside Micrometer Economy Design
300-325mm	650-675mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-149	Mitutoyo Outside Micrometer Economy Design Part Number: 103-163
For more : sales@inosaki.my	For more : sales@inosaki.my

Accessories

Optional accessories:

	Micrometer Stand, 45° Angle Type
	for Micrometer 0-50mm/0-2″
	156-105-10
	For more : sales@inosaki.my
	Micrometer Stand, Adjustable Angle Type
	for Micrometer 0-100mm/0-4″
	156-101-10
	More Info
