Mitutoyo Outside Micrometer Economy Design – Series 103 – 0-25mm, 0,001mm

$ 93.15 $ 74.52

SKU: Mitutoyo 103-129

Mitutoyo Outside Micrometer Economy Design, Manufacturer Part Number 103-129

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

Mitutoyo Outside Micrometer Economy Design Features:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
0-25 mm
Graduation:
0,001 mm
Maximum Permissible Error J MPE:
±2 µm
Flatness:
0,6 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish
Mass:
175 g
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 – 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)

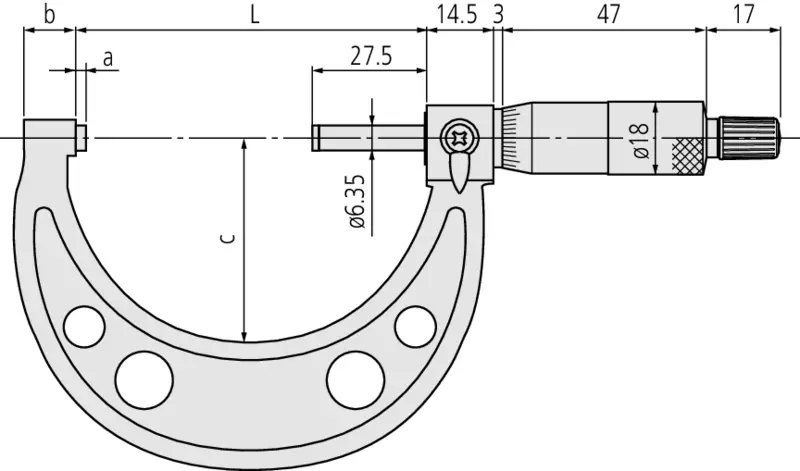

Mitutoyo Outside Micrometer Economy Design Dimensions

103-139-10_d1.eps
L:
30.3 mm
a:
2.8 mm
b:
9 mm
c:
28 mm
d:
6.35 mm















Variants

103-137_z1.eps Outside Micrometer Economy Design 103-150.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
25-50mm, 0,001mm 325-350mm 675-700mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-130 Mitutoyo Outside Micrometer Economy Design Part Number: 103-150 Mitutoyo Outside Micrometer Economy Design Part Number: 103-164
More Info For more : sales@inosaki.my For more : sales@inosaki.my
103-137_ z.eps Outside Micrometer Economy Design 103-151.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
0-25mm 350-375mm 700-725mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-137 Mitutoyo Outside Micrometer Economy Design Part Number: 103-151 Mitutoyo Outside Micrometer Economy Design Part Number: 103-165
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-138_z1.webp Outside Micrometer Economy Design 103-152_2.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
25-50mm 375-400mm 725-750mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-138 Mitutoyo Outside Micrometer Economy Design Part Number: 103-152 Mitutoyo Outside Micrometer Economy Design Part Number: 103-166
More Info For more : sales@inosaki.my For more : sales@inosaki.my
103-139-10_z1.webp Outside Micrometer Economy Design 103-153.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
50-75mm 400-425mm 750-775mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-139-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-153 Mitutoyo Outside Micrometer Economy Design Part Number: 103-167
More Info For more : sales@inosaki.my For more : sales@inosaki.my
103-140-10_z1.webp Outside Micrometer Economy Design 103-154.webp Outside Micrometer Economy Design 103-168.webp Outside Micrometer Economy Design
75-100mm 425-450mm 775-800mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-140-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-154 Mitutoyo Outside Micrometer Economy Design Part Number: 103-168
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-141-10_z1.webp Outside Micrometer Economy Design 103-155.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
100-125mm 450-475mm 800-825mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-141-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-155 Mitutoyo Outside Micrometer Economy Design Part Number: 103-169
For more : sales@inosaki.my For more : sales@inosaki.my  sales@inosaki.my
103-142-10_z1.webp Outside Micrometer Economy Design 103-156.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
125-150mm 475-500mm 825-850mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-142-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-156 Mitutoyo Outside Micrometer Economy Design Part Number: 103-170
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-143-10_z1.webp Outside Micrometer Economy Design 103-157.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
150-175mm 500-525mm 850-875mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-143-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-157 Mitutoyo Outside Micrometer Economy Design Part Number: 103-171
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-144.webp Outside Micrometer Economy Design 103-158.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
175-200mm 525-550mm 875-900mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-144-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-158 Mitutoyo Outside Micrometer Economy Design Part Number: 103-172
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-145.webp Outside Micrometer Economy Design 103-159.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
200-225mm 550-575mm 900-925mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-145-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-159 Mitutoyo Outside Micrometer Economy Design Part Number: 103-173
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-146.webp Outside Micrometer Economy Design 103-160.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
225-250mm 575-600mm 925-950mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-146-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-160 Mitutoyo Outside Micrometer Economy Design Part Number: 103-174
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-147.webp Outside Micrometer Economy Design 103-161.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
250-275mm 600-625mm 950-975mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-147-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-161 Mitutoyo Outside Micrometer Economy Design Part Number: 103-175
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-148.webp Outside Micrometer Economy Design 103-162.webp Outside Micrometer Economy Design 103-149_d1.eps Outside Micrometer Economy Design
275-300mm 625-650mm 975-1000mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-148-10 Mitutoyo Outside Micrometer Economy Design Part Number: 103-162 Mitutoyo Outside Micrometer Economy Design Part Number: 103-176
For more : sales@inosaki.my For more : sales@inosaki.my For more : sales@inosaki.my
103-149.webp Outside Micrometer Economy Design 103-163.webp Outside Micrometer Economy Design
300-325mm 650-675mm
Mitutoyo Outside Micrometer Economy Design Part Number: 103-149 Mitutoyo Outside Micrometer Economy Design Part Number: 103-163
For more : sales@inosaki.my For more : sales@inosaki.my

Accessories

Optional accessories:

156-105-10_z2.eps Micrometer Stand, 45° Angle Type
for Micrometer 0-50mm/0-2″
156-105-10
For more : sales@inosaki.my
156-101-10_z3.webp Micrometer Stand, Adjustable Angle Type
for Micrometer 0-100mm/0-4″
156-101-10
More Info



Weight 0.175 kg
Dimensions 3.03 cm
