Mitutoyo Magnetic Stand – Series 7 – 150mm Working Radius
$ 57.86
SKU: Mitutoyo 7010S-10
Description: Mitutoyo Magnetic Stand, Manufacturer Part Number 7010S-10
- V-block base type.
Mitutoyo Magnetic Stand Feature:
| Magnetic force: |
600 N vertical retractile force
|
| Clamping device: |
magnetic
|
| Magnetic force (vertical): |
600 N
|
| Base size (LxWxH): |
59 x 50 x 55 mm
|
| Total height: |
235 mm
|
| Fine adjustment: |
None
|
| Stem hole ø: |
3/8″ / 9.53 mm, 4 mm, 8 mm (with stem bush)
|
| Working radius: |
150 mm
|
| Thread Arm/Base: |
M8 x 1.25
|
| Mass: |
1.38 kg
|

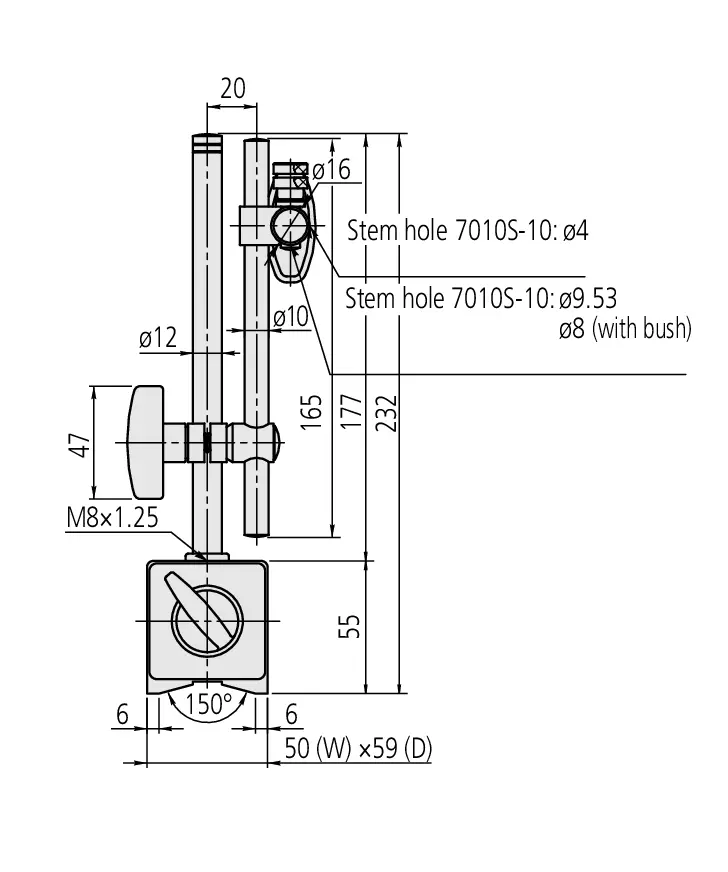

Mitutoyo Magnetic Stand Dimensions
Variants
All products of product family Series 7:
 |
Magnetic Stand |
| 160mm Working Radius | |
| Mitutoyo Magnetic Stand Part Number: 7015-10 | |
| For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Cross arm for Magnet Stand |
| 300mm | |
| 02AZC282 | |
| For more : sales@inosaki.my |
Standard accessories:
 |
Stem Bush for Magnet Stand |
| 9,53mm to 8mm | |
| 02AZC291 | |
| For more : sales@inosaki.my |
| Weight | 1.38 kg |
|---|---|
| Dimensions | 5.9 × 5.0 × 23.5 cm |
