Mitutoyo Gauge Stand With Hardened Steel Anvil – Series 7 – D=58mm, Flat Anvil
$ 476.52 $ 381.22
SKU: Mitutoyo 1863742
Description: Mitutoyo Gauge Stand With Hardened Steel Anvil, Manufacturer Part Number 7002-10
Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
Mitutoyo Gauge Stand With Hardened Steel Anvil Feature:
| Effective table dimensions: |
Ø 58 mm
|
| Column Ø: |
30 mm
|
| Base size : |
168 x 110 mm
|
| Max. measurement height : |
95 mm
|
| Measuring table: |
Flat (101,461)
|
| Fine adjustment: |
1 mm
|
| Stem hole ø: |
ø 3/8″ / 9.53 mm , 8 mm with bush (standard accessory)
|
| Stem hole ø: |
9,53 mm, 8 mm with bush (standard accessory)
|
| Perpendicularity table-stem hole: |
0,4/100 mm
|
| Table flatness: |
1,3 µm
|
| Mass: |
4 kg
|

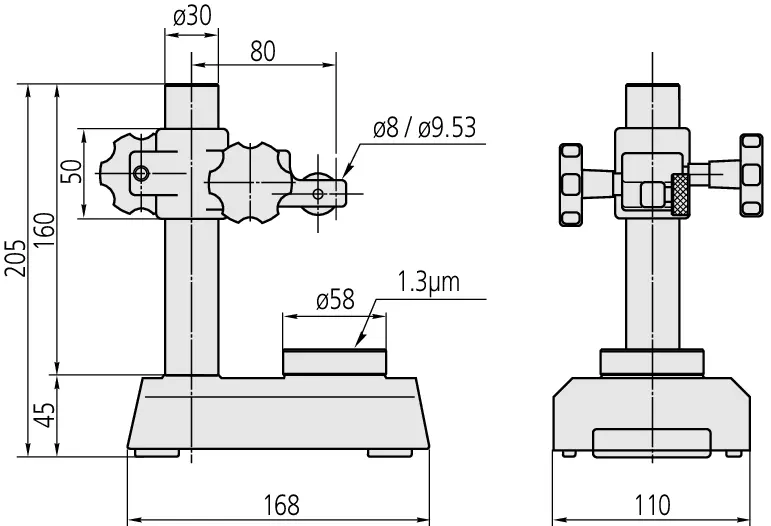

Mitutoyo Gauge Stand With Hardened Steel Anvil Dimensions
Variants
All products of product family Series 7:
 |
Gauge Stand with Hardened Steel Anvil |
| D=58mm, Serrated Anvil | |
| Max. measurement height | |
| : 95 mm | |
| Mitutoyo Gauge Stand with Hardened Steel Anvil Part Number: 7001-10 | |
| For more : sales@inosaki.my | |
 |
Gauge Stand with Hardened Steel Anvil |
| D=58mm, Serrated Anvil, Heigh Column | |
| Max. measurement height | |
| : 318 mm | |
| Mitutoyo Gauge Stand with Hardened Steel Anvil Part Number: 519-109-10 | |
| For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Convex Anvil for Gauge Stand |
| Ø58mm | |
| 101463 | |
| For more : sales@inosaki.my |
Standard accessories:
 |
Flat Anvil for Gauge Stand |
| Ø58mm | |
| 101461 | |
| For more : sales@inosaki.my | |
 |
Stem Bush for Gauge Stand |
| 9,53mm to 8mm | |
| 21JAA316 | |
| For more : sales@inosaki.my |
| Weight | 4.0 kg |
|---|---|
| Dimensions | 9.5 cm |
