Mitutoyo Digital Tubular Inside Micrometer (Rod) – Series 337 – 200-1000mm, IP65, incl. 6 Rods
$ 2,055.74 $ 1,644.59
SKU: Mitutoyo 337-301
Description: Mitutoyo Digital Tubular Inside Micrometer, Manufacturer Part Number 337-301
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces.
- Digimatic type, with data output.
- It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
Mitutoyo Digital Tubular Inside Micrometer Feature:
| Inch-Metric: |
Metric
|
| Range: |
200 – 1000 mm
|
| Measuring span: |
25 mm
|
| Digital step: |
0,001 mm
|
| Spindle feed error: |
3 µm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
Spindle pitch 0.5 mm
|
| Measuring face: |
Carbide
|
| Extension: |
ø12,5 mm
|
| Extension rods: |
6 (25, 50, 100 (2 pcs.), 200, 300 mm)
|
| Power supply: |
1 battery SR-44
|
| Delivered: |
Including box, key, 1 battery, extensions, micrometer head
|
| DATA/HOLD: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Low voltage alarm: |
Yes
|
| Function lock: |
Yes
|
| 2 x PRESET: |
Yes
|
| Digital/Analog: |
Digital
|
| Data output: |
Yes
|
| Mass: |
1040 g
|

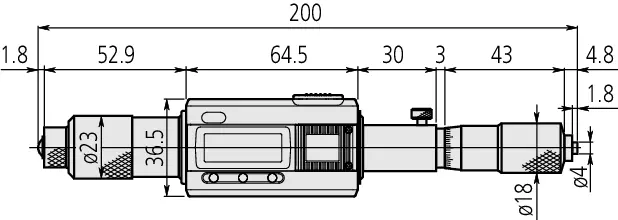

Mitutoyo Digital Tubular Inside Micrometer Dimensions
Variants
All products of product family Series 337:
 |
Digital Tubular Inside Micrometer (Rod) |
| 200-225mm, Digimatic, IP65 | |
| Mitutoyo Digital Tubular Inside Micrometer Part Number: 337-101 | |
| For more : sales@inosaki.my | |
 |
Digital Tubular Inside Micrometer (Rod) |
| 200-1500mm, IP65, incl. 7 Rods | |
| Mitutoyo Digital Tubular Inside Micrometer Part Number: 337-302 | |
| More Info | |
|
Digital Tubular Inside Micrometer (Rod) |
| Inch/Metric, 8-9″, IP65 | |
| Mitutoyo Digital Tubular Inside Micrometer Part Number: 337-102 | |
| For more : sales@inosaki.my | |
|
Digital Tubular Inside Micrometer (Rod) |
| Inch/Metric, 8-60″, IP65, incl. 7 Rods | |
| Mitutoyo Digital Tubular Inside Micrometer Part Number: 337-304 | |
| For more : sales@inosaki.my | |
 |
Digital Tubular Inside Micrometer (Rod) |
| Inch/Metric, 8-40″, IP65, incl. 6 Rods | |
| Mitutoyo Digital Tubular Inside Micrometer Part Number: 337-303 | |
| For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Digimatic Cable with Data Button IP Type |
| 1m, Micrometer Type | |
| 05CZA662 | |
| More Info | |
|
Digimatic Cable with Data Button IP Type |
| 2m, Micrometer Type | |
| 05CZA663 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, With Data Button IP Micrometer Type | |
| 06AFM380B | |
| More Info | |
 |
U-WAVE-T, Buzzer Type |
| Wireless Transmitter | |
| 02AZD880G | |
| For more : sales@inosaki.my | |
 |
U-WAVE-T, IP67 Type |
| Wireless Transmitter | |
| 02AZD730G | |
| For more : sales@inosaki.my | |
 |
U-WAVE-T Connection Cable B |
| with Data Button IP Micrometer Type | |
| 02AZD790B | |
| For more : sales@inosaki.my |
Standard accessories:
 |
Digital Tubular Inside Micrometer (Rod) |
| 200-225mm, Digimatic, IP65 | |
| 337-101 | |
| For more : sales@inosaki.my |
Accessories
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
| Weight | 1.04 kg |
|---|
