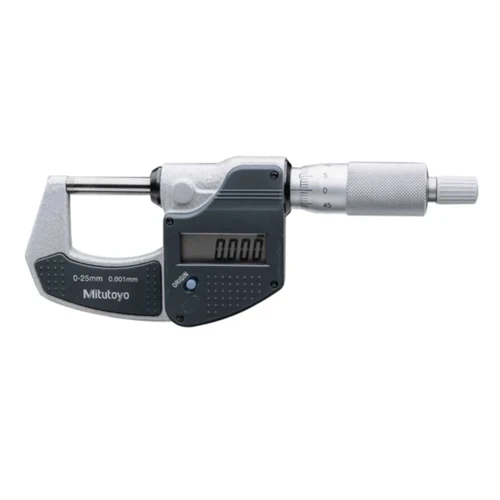

Mitutoyo Digital Micrometer, Manufacturer Part Number 293-821-30
A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
Mitutoyo Digital Micrometer Features:
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±2 µm
|
| Flatness: |
0,3 µm
|
| Parallelism: |
1 µm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Mass: |
275 g
|
| Measuring spindle: |
ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 – 10 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
Including box, key, 1 battery,
certificate of inspection
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|

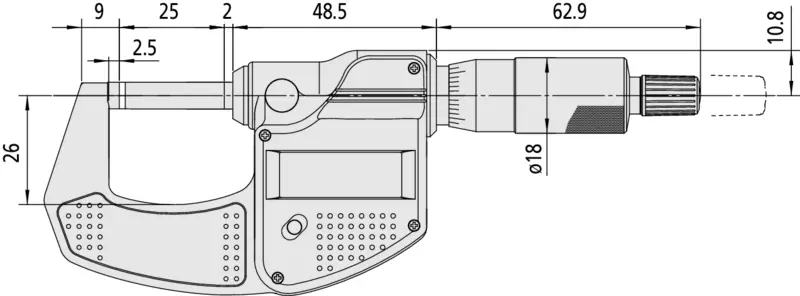

Mitutoyo Digital Micrometer Dimensions
Variants
All products of product family Series 293:
 |
Digital Micrometer, Inch/Metric |
| 0-1″, w/o Data Output |
| Mitutoyo Digital Micrometer Part Number: 293-831-30 |
| More Info |
|
Digital Micrometer, Inch/Metric |
| 0-1″, w/o Output, Friction Thimble |
| Mitutoyo Digital Micrometer Part Number: 293-832-30 |
| For more : sales@inosaki.my |
Optional accessories:
 |
Micrometer Stand, 45° Angle Type |
| for Micrometer 0-50mm/0-2″ |
| 156-105-10 |
| For more : sales@inosaki.my |
 |
Micrometer Stand, Adjustable Angle Type |
| for Micrometer 0-100mm/0-4″ |
| 156-101-10 |
| More Info |
Spare Parts
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
