Original price was: $ 263.12.$ 206.31Current price is: $ 206.31.
This IP65 micrometer offers outstanding accuracy, without data output, is highly robust and offers the following benefits:
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±1 µm
|
| Flatness: |
0,3 µm
|
| Parallelism: |
1 µm
|
| Data output: |
Yes
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Mass: |
270 g
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 – 10 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
including box, key, 1 battery, gauge block (from 25 mm upward), up to 50 mm measuring range with factory certificate
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|

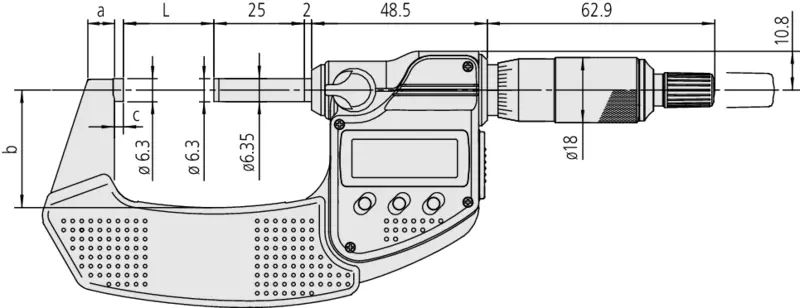

| L: |
0 mm
|
| a: |
6.5 mm
|
| b: |
25 mm
|
| c: |
2.5 mm
|
All products of product family Series 293 – Individual Range with Data Output:
 |
Digital Micrometer IP65 |
| 0-25mm | |
| Mitutoyo Digital Micrometer Part Number: 293-230-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 0-25mm, w/o Output | |
| Mitutoyo Digital Micrometer Part Number: 293-240-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 25-50mm, w/o Output | |
| Mitutoyo Digital Micrometer Part Number: 293-241-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 50-75mm, w/o Output | |
| Mitutoyo Digital Micrometer Part Number: 293-242-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 75-100mm, w/o Output | |
| Mitutoyo Digital Micrometer Part Number: 293-243-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 100-125mm | |
| Mitutoyo Digital Micrometer Part Number: 293-250-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 125-150mm | |
| Mitutoyo Digital Micrometer Part Number: 293-251-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 150-175mm | |
| Mitutoyo Digital Micrometer Part Number: 293-252-30 | |
| More Info | |
 |
Digital Micrometer IP65 |
| 175-200mm | |
| Mitutoyo Digital Micrometer Part Number: 293-253-30 | |
| More Info | |
 |
Digital Micrometer IP65, Inch/Metric |
| 0-1″, w/o Output | |
| Mitutoyo Digital Micrometer Part Number: 293-340-30 | |
| More Info | |
 |
Digital Micrometer |
| 0-25mm, w/o Data Output | |
| Mitutoyo Digital Micrometer Part Number: 293-821-30 | |
| More Info | |
 |
Digital Micrometer, Inch/Metric |
| 0-1″, w/o Data Output | |
| Mitutoyo Digital Micrometer Part Number: 293-831-30 | |
| More Info |
Optional accessories:
 |
Micrometer Stand, Adjustable Angle Type |
| for Micrometer 0-100mm/0-4″ | |
| 156-101-10 | |
| More Info |
 |
Micrometer Setting Standard |
| Length: 25mm | |
| 167-101 | |
| For more : Contact us |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : Contact us |
