$ 353.76 $ 300.70
A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±1 µm
|
| Flatness: |
0,3 µm
|
| Parallelism: |
1 µm
|
| Data output: |
Yes
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Mass: |
270 g
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 – 10 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
including Box, key, 1 battery, gauge block (from 25 mm upward), up to 50 mm measuring range with factory certificate
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| 2 x PRESET (over 100 mm): |
Yes
|

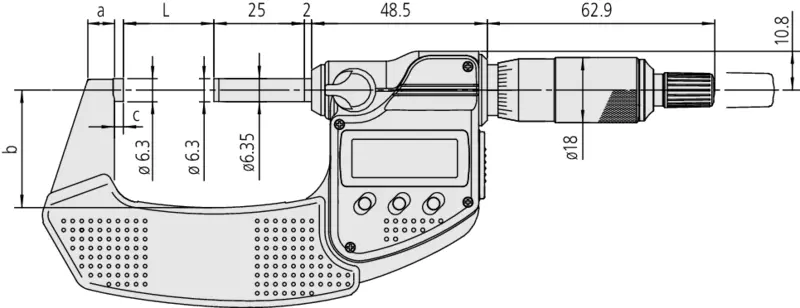

| L: |
0 mm
|
| a: |
6,5 mm
|
| b: |
25 mm
|
| c: |
2.5 mm
|
All products of product family Series 293 – Individual Range with Data Output:
 |
Digital Micrometer IP65 |  |
Digital Micrometer IP65 |
| 25-50mm | 225-250mm, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-231-30 | Mitutoyo Digital Micrometer Part Number: 293-255-30 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
 |
Digital Micrometer IP65 |  |
Digital Micrometer IP65 |
| 50-75mm, with Output | 250-275mm, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-232-30 | Mitutoyo Digital Micrometer Part Number: 293-256-30 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
 |
Digital Micrometer IP65 |  |
Digital Micrometer IP65 |
| 75-100mm, with Output | 275-300mm, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-233-30 | Mitutoyo Digital Micrometer Part Number: 293-257-30 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital Micrometer IP65 |  |
Digital Micrometer IP65 |
| 100-125mm, with Output | 0-25mm, Ratched Thimble, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-250-30 | Mitutoyo Digital Micrometer Part Number: 293-234-30 | ||
| More Info | For more : sales@inosaki.com | ||
|
Digital Micrometer IP65 |  |
Digital Micrometer IP65 |
| 125-150mm, with Output | 25-50mm, Ratched Thimble, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-251-30 | Mitutoyo Digital Micrometer Part Number: 293-235-30 | ||
| More Info | For more : sales@inosaki.com | ||
|
Digital Micrometer IP65 | |
Digital Micrometer IP65 |
| 150-175mm, with Output | 50-75mm, Ratched Thimble, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-252-30 | Mitutoyo Digital Micrometer Part Number: 293-236-30 | ||
| More Info | For more : sales@inosaki.com | ||
|
Digital Micrometer IP65 | |
Digital Micrometer IP65 |
| 175-200mm, with Output | 75-100mm, Ratched Thimble, with Output | ||
| Mitutoyo Digital Micrometer Part Number: 293-253-30 | Mitutoyo Digital Micrometer Part Number: 293-237-30 | ||
| More Info | For more : sales@inosaki.com | ||
|
Digital Micrometer IP65 | ||
| 200-225mm, with Output | |||
| Mitutoyo Digital Micrometer Part Number: 293-254-30 | |||
| For more : sales@inosaki.com | |||
Proposed additional product:
 |
Digimatic Cable with Data Button IP Type |
| 1m, Micrometer Type | |
| 05CZA662 | |
| More Info | |
|
Digimatic Cable with Data Button IP Type |
| 2m, Micrometer Type | |
| 05CZA663 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, With Data Button IP Micrometer Type | |
| 06AFM380B | |
| More Info | |
 |
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-622 | |
| For more : sales@inosaki.com | |
 |
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-623 | |
| For more : sales@inosaki.com | |
 |
Connection Unit, U-WAVE fit |
| Waterproof Type | |
| 02AZF310 | |
| For more : sales@inosaki.com | |
| Optional accessories: | |
|
Digimatic Cable with Data Button IP Type |
| 1m, Micrometer Type | |
| 05CZA662 | |
| More Info | |
|
Digimatic Cable with Data Button IP Type |
| 2m, Micrometer Type | |
| 05CZA663 | |
| More Info | |
|
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, With Data Button IP Micrometer Type | |
| 06AFM380B | |
| More Info | |
|
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-622 | |
| For more : sales@inosaki.com | |
|
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-623 | |
| For more : sales@inosaki.com | |
 |
U-WAVE fit Bluetooth, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-626 | |
| For more : sales@inosaki.com | |
 |
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-627 | |
| For more : sales@inosaki.com | |
|
Connection Unit, U-WAVE fit |
| Waterproof Type | |
| 02AZF310 | |
| For more : sales@inosaki.com | |
 |
Micrometer Stand |
| for Micrometer 100-300mm/5-12″ | |
| 156-102 | |
| For more : sales@inosaki.com | |
| Standard accessories: | |
 |
Micrometer Setting Standard |
| Length: 100mm | |
| 167-104 | |
| For more : sales@inosaki.com | |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
