Mitutoyo Digital Indicator ID-C – Series 543 – 25,4mm, 0,0005mm, Flat Back Plate
$ 658.68 $ 526.94
SKU: Mitutoyo 543-720B
Description: Mitutoyo Digital Indicator, Manufacturer Part Number 543-720B
This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display
- Model with 0,5 µm digital step is available
- Measurements such as simple calculation and peak detection are possible
- Equipped with a calibration schedule warning function
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Mitutoyo Digital Indicator Feature:
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
25.4 mm
|
| Digital step: |
0.0005 mm/0.001 mm/0,01mm
|
| Max. Permissible Error E MPE (Total Range): |
0.003 mm
|
| H MPE (Hysteresis): |
0.002 mm
|
| R MPE (Repeatability): |
0.002 mm
|
| Protection: |
IP42
|
| Type: |
EN ISO Standard
|
| Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Display: |
LCD, character height 11 mm, 330° rotatable
|
| Max. response speed: |
Unlimited
|
| Measurement frequency (MAX/MIN/RANGE): |
50 times/s
|
| Alarm: |
Low voltage, setting errors, sensor error, display overflow a.s.o.
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5×0.45
|
| Power supply: |
1 battery CR2032
|
| Battery life: |
Approx. 2700 hours (continuous use)
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| ON/OFF: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Customizing keys: |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch/Metric switchable: |
No
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
Yes
|
| Mass: |
195 g
|
| Delivered: |
Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
|

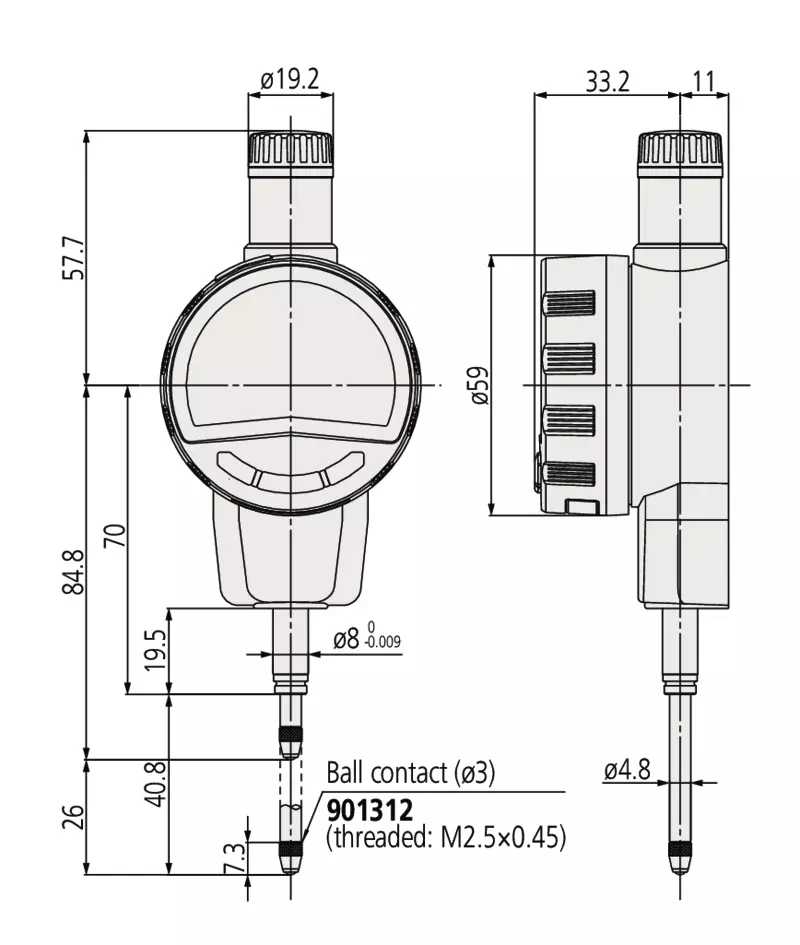

Mitutoyo Digital Indicator Dimensions
