Mitutoyo Digital Indicator ID-C – Series 543 – 12,7mm, 0,0005mm, Flat Back Plate
$ 447.48 $ 357.98
SKU: Mitutoyo 543-700B
Description: Mitutoyo Digital Indicator, Manufacturer Part Number 543-700B
This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display
- Model with 0,5 µm digital step is available
- Measurements such as simple calculation and peak detection are possible
- Equipped with a calibration schedule warning function
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Mitutoyo Digital Indicator Feature:
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| No. Lug back plate: |
543-700
|
| Range: |
12.7 mm
|
| Digital step: |
0.0005 mm/0.001 mm/0,01mm
|
| Max. Permissible Error E MPE (Total Range): |
0.003 mm
|
| H MPE (Hysteresis): |
0.002 mm
|
| R MPE (Repeatability): |
0.002 mm
|
| Protection: |
IP42
|
| Type: |
EN ISO Standard
|
| Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Display: |
LCD, character height 11 mm, 330° rotatable
|
| Max. response speed: |
Unlimited
|
| Measurement frequency (MAX/MIN/RANGE): |
50 times/s
|
| Alarm: |
Low voltage, setting errors, sensor error, display overflow a.s.o.
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5×0.45
|
| Power supply: |
1 battery CR2032
|
| Battery life: |
Approx. 2700 hours (continuous use)
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| ON/OFF: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Customizing keys: |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch/Metric switchable: |
No
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
Yes
|
| Mass: |
165 g
|
| Delivered: |
Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
|

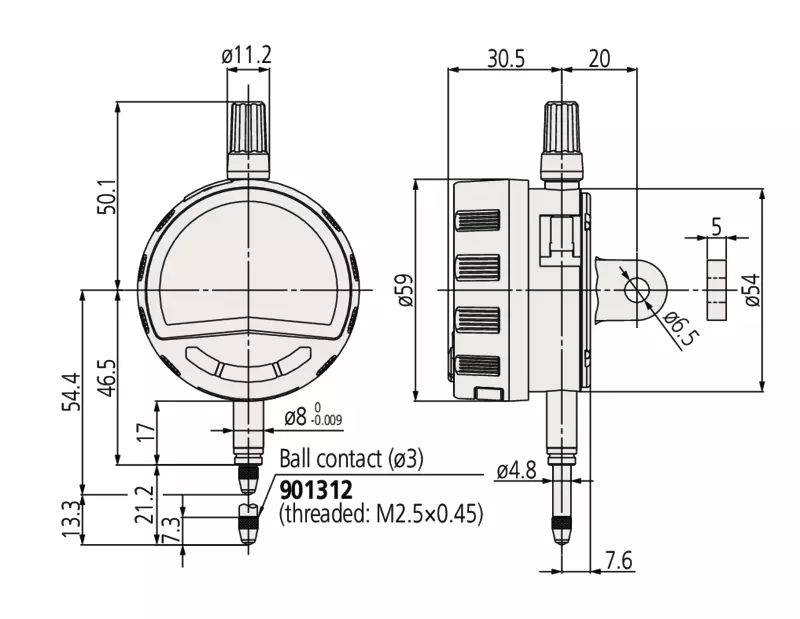

Mitutoyo Digital Indicator Dimensions
Variants
All products of product family Series 543:
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| 12,7mm, 0,0005mm, Lug Back Plate | Inch/Metric, 0,5″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-700 | Mitutoyo Digital Indicator Part Number: 543-711B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| Low Force Type, 12,7mm, 0,0005mm, Lug Back Plate | Low Force Type, Inch/Metric, 0,5″, 0,0005″, Lug Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-705 | Mitutoyo Digital Indicator Part Number: 543-716 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C | |
Digital Indicator ID-C |
| Low Force Type, 12,7mm, 0,0005mm, Flat Back Plate | Low Force Type, Inch/Metric, 0,5″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-705B | Mitutoyo Digital Indicator Part Number: 543-716B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| 12,7mm, 0,01mm, Lug Back Plate | Inch/Metric, 1″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-710 | Mitutoyo Digital Indicator Part Number: 543-721B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| 12,7mm, 0,01mm, Flat Back Plate | Inch/Metric, 1″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-710B | Mitutoyo Digital Indicator Part Number: 543-726B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| Low Force Type, 12,7mm, 0,01mm, Lug Back Plate | Inch/Metric, 2″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-715 | Mitutoyo Digital Indicator Part Number: 543-731B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C |
| Low Force Type, 12,7mm, 0,01mm, Flat Back Plate | Inch/Metric, 2″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-715B | Mitutoyo Digital Indicator Part Number: 543-736B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| 25,4mm, 0,0005mm, Flat Back Plate | Inch/Metric, 0,5″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-720B | Mitutoyo Digital Indicator Part Number: 543-702B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C | |
Digital Indicator ID-C, ASME/ANSI Type |
| 25,4mm, 0,01mm, Flat Back Plate | Low Force Type, Inch/Metric, 0,5″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-725B | Mitutoyo Digital Indicator Part Number: 543-707B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| 50,8mm, 0,0005mm, Flat Back Plate | Inch/Metric, 0,5″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-730B | Mitutoyo Digital Indicator Part Number: 543-712B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| 50,8mm, 0,01mm, Flat Back Plate | Inch/Metric, 0,5″, 0,0005″, Lug Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-735B | Mitutoyo Digital Indicator Part Number: 543-712 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| Inch/Metric, 0,5″, 0,00002″, Lug Back Plate | Low Force Type, Inch/Metric, 0,5″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-701 | Mitutoyo Digital Indicator Part Number: 543-717B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C | |
Digital Indicator ID-C, ASME/ANSI Type |
| Inch/Metric, 0,5″, 0,0005″, Lug Back Plate | Low Force Type, Inch/Metric, 0,5″, 0,0005″, Lug Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-711 | Mitutoyo Digital Indicator Part Number: 543-717 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| Inch/Metric, 0,5″, 0,00002″, Flat Back Plate | Inch/Metric, 1″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-701B | Mitutoyo Digital Indicator Part Number: 543-722B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| Low Force Type, Inch/Metric, 0,5″, 0,00002″, Lug Back Plate | Inch/Metric, 2″, 0,00002″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-706 | Mitutoyo Digital Indicator Part Number: 543-732B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digital Indicator ID-C |  |
Digital Indicator ID-C, ASME/ANSI Type |
| Low Force Type, Inch/Metric, 0,5″, 0,00002″, Flat Back Plate | Inch/Metric, 2″, 0,0005″, Flat Back Plate | ||
| Mitutoyo Digital Indicator Part Number: 543-706B | Mitutoyo Digital Indicator Part Number: 543-737B | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Digimatic Cable, Straight, 1m |
| Digimatic/Digimatic 2/Digimatic S1 Interface | |
| 06AGL011 | |
| For more : sales@inosaki.my | |
 |
Digimatic Cable, Straight, 2m |
| Digimatic/Digimatic 2/Digimatic S1 Interface | |
| 06AGL021 | |
| For more : sales@inosaki.my | |
 |
USB Input Tool Direct, Indicator Type |
| 2m Cable, Digimatic/Digimatic 2/Digimatic S1 Interface | |
| 06AGQ001F | |
| For more : sales@inosaki.my | |
 |
USB Input Tool Interface Box |
| Digimatic/Digimatic 2/Digimatic S1 Interface | |
| 264-020 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-623 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-622 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-627 | |
| For more : sales@inosaki.my | |
|
U-WAVE fit Bluetooth, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-626 | |
| For more : sales@inosaki.my | |
 |
Connection Unit Indicator |
| 12,7mm/0,5” Type, U-WAVE fit, U-WAVE fit Bluetooth | |
| 02AZF700 | |
| For more : sales@inosaki.my | |
 |
U-WAVE-T Connection Cable SF |
| for Digimatic S1 Interface | |
| 02AZG011 | |
| For more : sales@inosaki.my | |
 |
U-WAVE fit Transmitter Mounting Plate |
| for ID-C and ID-S Digital Indicator | |
| 02AZF670 | |
| For more : sales@inosaki.my | |
 |
Spindle Lifting Lever |
| for Digital Indicator, A-Type Dial Indicator Series 2/3/4 | |
| 21EZA198 | |
| More Info | |
 |
Spindle Lifting Cable |
| for Indicator, L=500mm | |
| 21JZA295 | |
| For more : sales@inosaki.my | |
 |
Spindle Lifting Cable with Auto Stop |
| for Indicator, L=300mm | |
| 21JZA301 | |
| More Info | |
 |
Spindle Lifting Knob |
| for 12,5mm, Metric | |
| 21EZA105 | |
| For more : sales@inosaki.my |
Standard accessories:
 |
Battery Case Opener |
| 21EAB049 | |
| For more : sales@inosaki.my |
Spare Parts
Consumable spares:
 |
Lithium battery CR-2032 |
| 1 pcs. | |
| 05SAA217D |
| Weight | 0.165 kg |
|---|
