Mitutoyo Digital ABS Height Gauge – Series 570 – 0-300 mm, with Handwheel

Name: Mitutoyo Digital ABS Height Gauge - Series 570 - 0-300 mm, with Handwheel
SKU: Mitutoyo 570-402
Price: 894.96 USD
Availability: InStock

~~$ 894.96~~ $ 760.72

SKU Mitutoyo 570-402 Category Mitutoyo Height Gauges

Description: Mitutoyo Digital ABS Height Gauge, Manufacturer Part Number 570-402

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:

Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
It comes with large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided.
A large display and buttons for easy operability.

Mitutoyo Digital ABS Height Gauge Feature:

Digital/Analog:	Digital
Range:	0 – 300 mm
Digital step:	0,01 mm
Max. Permissible Error E MPE:	±0,03 mm
Scale:	ABSOLUTE capacitance type linear encoder
Display:	LCD, character height 12 mm
Max. response speed:	Unlimited
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
ORIGIN (ABS-Zero):	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
Inch-Metric:	Metric
Delivered:	Including 1 battery, scriber and scriber clamp
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years under normal use
Mass:	4.6 kg

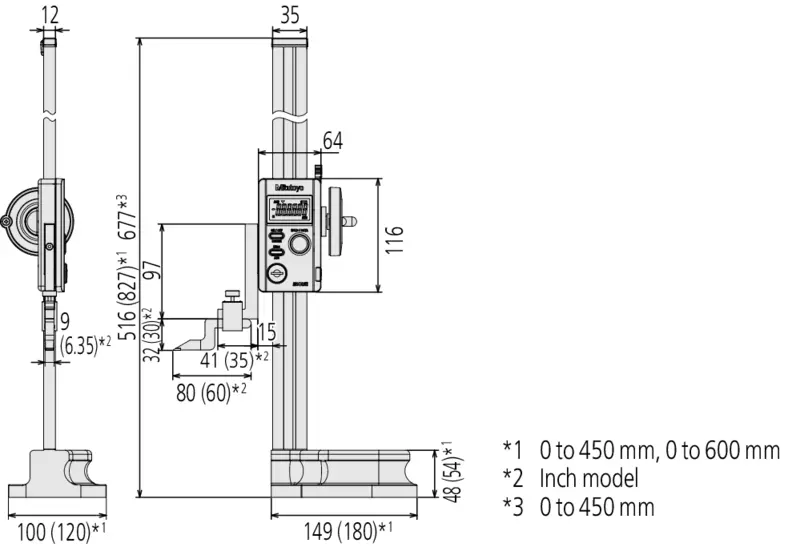

Mitutoyo Digital ABS Height Gauge Dimensions

Accessories

Optional accessories:

	Digimatic Cable, Flat Straight Type
	1m
	905338
	More Info
	Digimatic Cable, Flat Straight Type
	2m
	905409
	More Info
	USB Input Tool Direct (Digimatic USB)
	Digi/Digi2, Flat Straight Type
	06AFM380F
	More Info
	U-WAVE-T, Buzzer Type
	Wireless Transmitter
	02AZD880G
	For more : sales@inosaki.com
	U-WAVE-T, IP67 Type
	Wireless Transmitter
	02AZD730G
	For more : sales@inosaki.com
	U-WAVE-T Connection Cable F
	Flat Straight Type
	02AZD790F
	For more : sales@inosaki.com
	Holding Bar for Swivel Clamp
	9x9mm, 50mm Length
	953638
	For more : sales@inosaki.com
	Holding Bar for Swivel Clamp
	9x9mm, 100mm Length
	900209
	For more : sales@inosaki.com
	Swivel Clamp
	for D=4/8mm, Dovetail
	900321
	For more : sales@inosaki.com
	Center Master
	for 9x9mm
	951144
	For more : sales@inosaki.com
	Depth Gauge Attachment
	for 9×9 mm
	900764
	For more : sales@inosaki.com

Standard accessories:

	Scriber Clamp
	for 9x9mm Scriber
	05GZA033
	For more : sales@inosaki.com
	Carbide Tipped Scriber
	9x9mm, 80mm Length
	07GZA000
	For more : sales@inosaki.com
	Vinyl Cover Series 192
	300mm
	450291
	For more : sales@inosaki.com
