Mitutoyo Digital ABS Caliper CoolantProof IP67 – Series 500 – 0-300mm, Blade, Thumb Roller, w/o Output
$ 677.38 $ 541.90
SKU: Mitutoyo 500-704-20
Description: Mitutoyo Digital ABS Caliper CoolantProof, Manufacturer Part Number 500-704-20
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Mitutoyo Digital ABS Caliper CoolantProof Feature:
| Range: |
0 – 300 mm
|
| Depth bar: |
flat
|
| Thumb roller: |
Yes
|
| Data output: |
No
|
| Max. Permissible Error E MPE: |
±0,03 mm
|
| Max. Permissible Error S MPE: |
±0,05 mm
|
| Digital step: |
0,01 mm
|
| Max. response speed: |
Unlimited
|
| Display: |
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
|
| Delivered: |
In a case, including 1 SR-44 battery
|
| ORIGIN (ABS-Zero): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Low voltage alarm: |
Yes
|
| Battery life: |
Approx. 5 years under normal use
|
| Mass: |
350 g
|

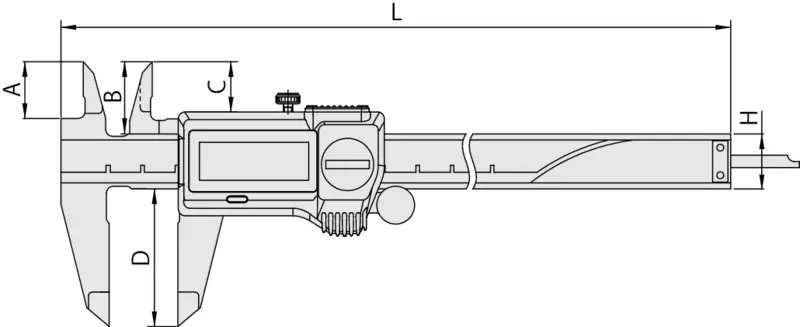

Mitutoyo Digital ABS Caliper CoolantProof Dimensions
| L: |
404 mm
|
| A: |
22 mm
|
| B: |
27.5 mm
|
| C: |
19.8 mm
|
| D: |
64 mm
|
| H: |
20 mm
|
Variants
All products of product family Series 500:
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Blade, w/o Data Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-706-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Rod, w/o Data Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-709-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Blade | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-716-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Blade, Thumb Roller, w/o Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-702-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Blade, Thumb Roller | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-712-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| 0-150mm, Rod | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-719-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-200mm, Blade, w/o Data Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-707-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-200mm, Blade | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-717-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-200mm, Blade, Thumb Roller, w/o Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-703-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-200mm, Blade, Thumb Roller | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-713-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-300mm, Blade, w/o Data Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-708-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-300mm, Blade | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-718-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| 0-300mm, Blade, Thumb Roller | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-714-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-6″, Thumb Ro., w/o Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-752-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-8″, Thumb Ro., w/o Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-753-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-12″, Thumb Ro, w/o Output” | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-754-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-6″, Thumb Roller | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-762-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-8″, Thumb Roller | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-763-20 | |
| For more : sales@inosaki.my | |
 |
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-12″, Thumb Roller” | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-764-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| In/Met, 0-6″, Thumb Ro, Rod, w/o Output | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-768-20 | |
| For more : sales@inosaki.my | |
|
Digital ABS Caliper CoolantProof IP67 |
| Inch/Metric, 0-6″, Thumb Roller, Rod | |
| Mitutoyo Digital ABS Caliper CoolantProof Part Number: 500-769-20 | |
| For more : sales@inosaki.my |
Accessories
Optional accessories:
 |
Depth Base Attachment for Caliper |
| 125mm width for 300mm Range | |
| 050085-10 | |
| For more : sales@inosaki.my |
Spare Parts
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
| Weight | 0.35 kg |
|---|
