$ 2,368.96 $ 2,013.62
This is a individual unit Three-Point Digimatic Snap Open Bore Gauge.
It offers you the following benefits:
| Inch-Metric: |
Metric
|
| Range: |
20 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±6 µm
|
| Display: |
LCD, character height: 11 mm
|
| Measuring face: |
Titanium coated hardened steel
taper: tungsten carbide |
| Measuring method: |
3-point
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 5000 hours
|
| Delivered: |
Including box, key, 1 battery, certificate of inspection
|
| ABS / INC (INC ZERO): |
Yes
|
| ON/OFF: |
Yes
|
| Function lock: |
Yes
|
| DATA (output with cable) / HOLD (display value): |
Yes
|
| 2 x PRESET: |
Yes
|
| Digital/Analog: |
Digital
|
| Data output: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Mass: |
540 g
|
| a: |
0.3 mm
|
| b: |
8.3 mm
|
| c: |
5.2 mm
|

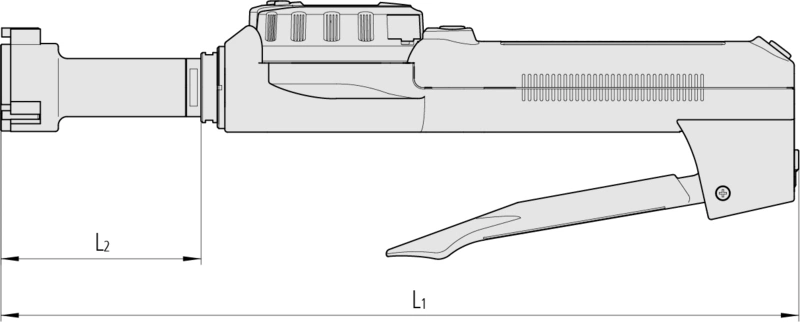

| L1: |
261 mm
|
| L2: |
59 mm
|
All products of product family ABSOLUTE Borematic Individual Unit:
 |
Digital ABS Borematic (Internal) |  |
Digital ABS Borematic (Internal) |
| 6-8mm | Inch/Metric, 0,35-0,425″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-361 | Mitutoyo Digital ABS Borematic Part Number: 568-462 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 8-10mm | Inch/Metric, 0,425-0,5″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-362 | Mitutoyo Digital ABS Borematic Part Number: 568-463 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) |  |
Digital ABS Borematic (Internal) |
| 10-12mm | Inch/Metric, 0,5-0,65″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-363 | Mitutoyo Digital ABS Borematic Part Number: 568-464 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 12-16mm | Inch/Metric, 0,65-0,8″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-364 | Mitutoyo Digital ABS Borematic Part Number: 568-465 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 16-20mm | Inch/Metric, 0,8-1″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-365 | Mitutoyo Digital ABS Borematic Part Number: 568-466 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 25-30mm | Inch/Metric, 1-1,2″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-367 | Mitutoyo Digital ABS Borematic Part Number: 568-467 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
 |
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 30-40mm | Inch/Metric, 1,2-1,6″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-368 | Mitutoyo Digital ABS Borematic Part Number: 568-468 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 40-50mm | Inch/Metric, 1,6-2″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-369 | Mitutoyo Digital ABS Borematic Part Number: 568-469 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
 |
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 50-63mm | Inch/Metric, 2-2,5″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-370 | Mitutoyo Digital ABS Borematic Part Number: 568-470 | ||
| More Info | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 62-75mm | Inch/Metric, 2,5-3″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-371 | Mitutoyo Digital ABS Borematic Part Number: 568-471 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 75-88mm | Inch/Metric, 3-3,5″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-372 | Mitutoyo Digital ABS Borematic Part Number: 568-472 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 87-100mm | Inch/Metric, 3,5-4″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-373 | Mitutoyo Digital ABS Borematic Part Number: 568-473 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 100-113mm | Inch/Metric, 4-4,5″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-374 | Mitutoyo Digital ABS Borematic Part Number: 568-474 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | |
Digital ABS Borematic (Internal) |
| 112-125mm | Inch/Metric, 4,5-5″ | ||
| Mitutoyo Digital ABS Borematic Part Number: 568-375 | Mitutoyo Digital ABS Borematic Part Number: 568-475 | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Digital ABS Borematic (Internal) | ||
| Inch/Metric, 0,275-0,35″ | |||
| Mitutoyo Digital ABS Borematic Part Number: 568-461 | |||
| For more : sales@inosaki.com | |||
Optional accessories:
 |
Digimatic Cable, Flat Straight Type |
| 1m | |
| 905338 | |
| For more : sales@inosaki.com | |
|
Digimatic Cable, Flat Straight Type |
| 2m | |
| 905409 | |
| For more : sales@inosaki.com | |
 |
U-WAVE-T Connection Cable F |
| Flat Straight Type | |
| 02AZD790F | |
| For more : sales@inosaki.com | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, Flat Straight Type | |
| 06ADV380F | |
| For more : sales@inosaki.com | |
 |
Holtest, Borematic Extension 150mm |
| for 50-300mm Measuring Range | |
| 952623 | |
| For more : sales@inosaki.com |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 |
| Weight | 0.540 kg |
|---|
