$ 329.12 $ 279.75
A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
| Range: |
0 – 8 “
|
| Depth bar: |
flat
|
| Thumb roller: |
Yes
|
| Data output: |
Yes
|
| Max. Permissible Error E MPE: |
±0,001″
|
| Max. Permissible Error S MPE: |
±0,002″
|
| Digital step: |
0,0005″/0,01 mm
|
| Max. response speed: |
Unlimited
|
| Display: |
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
|
| Delivered: |
In a case, including 1 SR-44 battery
|
| ORIGIN (ABS-Zero): |
Yes
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Low voltage alarm: |
Yes
|
| Battery life: |
Approx. 5 years under normal use
|
| Mass: |
194 g
|

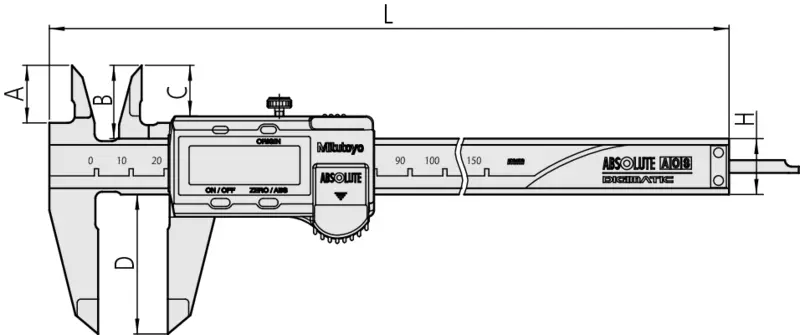

| A: |
20 mm
|
| B: |
24.5 mm
|
| C: |
18 mm
|
| D: |
50 mm
|
| H: |
16 mm
|
All products of product family Series 500:
 |
Digital ABS AOS Caliper |
| 0-100mm, Rod, w/o Data Output | |
| Mitutoyo Digital ABS AOS Caliper Part Number: 500-180-30 | |
| More Info | |
 |
Digital ABS AOS Caliper |
| Inch/Metric, 0-6″, Blade, Data Output | |
| Mitutoyo Digital ABS AOS Caliper Part Number: 500-202-30 | |
| For more : sales@inosaki.com |
Optional accessories:
 |
Digimatic Cable, Straight, Data Button, |
| 1m | |
| 959149 | |
| More Info | |
|
Digimatic Cable, Straight, Data Button, |
| 2m | |
| 959150 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, Straight, with Data Button | |
| 06AFM380C | |
| More Info | |
 |
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Caliper | |
| 264-620 | |
| For more : sales@inosaki.com | |
 |
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Caliper | |
| 264-621 | |
| For more : sales@inosaki.com | |
 |
U-WAVE fit Bluetooth, IP67 Type |
| Wireless Transmitter for Caliper | |
| 264-624 | |
| For more : sales@inosaki.com | |
|
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| Wireless Transmitter for Caliper | |
| 264-625 | |
| For more : sales@inosaki.com | |
 |
Connection Unit, U-WAVE fit |
| Standard Type | |
| 02AZF300 | |
| For more : sales@inosaki.com | |
 |
Data Hold Unit |
| 959143 | |
| For more : sales@inosaki.com | |
 |
Depth Base Attachment for Caliper, 75mm width |
| 75mm width for 100, 150, 200mm Range | |
| 050083-10 | |
| For more : sales@inosaki.com | |
 |
Depth Base Attachment for Caliper |
| 100mm width for 100, 150, 200mm Range | |
| 050084-10 | |
| For more : sales@inosaki.com |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : sales@inosaki.com |
| Weight | 0.194 kg |
|---|
