Mitutoyo Digit Outside Micrometer, Manufacturer Part Number 193-101

This Digit Outside Micrometer comes with a mechanical counter and offers you the following benefits:

Mechanical Digit counter
Quick and error-free reading

Mitutoyo Digit Outside Micrometer Features:

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	0 – 25 mm
Graduation:	0,01 mm
Maximum Permissible Error J MPE:	±2 µm
Flatness:	0,6 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish
Mass:	224 g
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 – 15 N
Delivered:	Including box, setting standard (from 25 mm upward), key

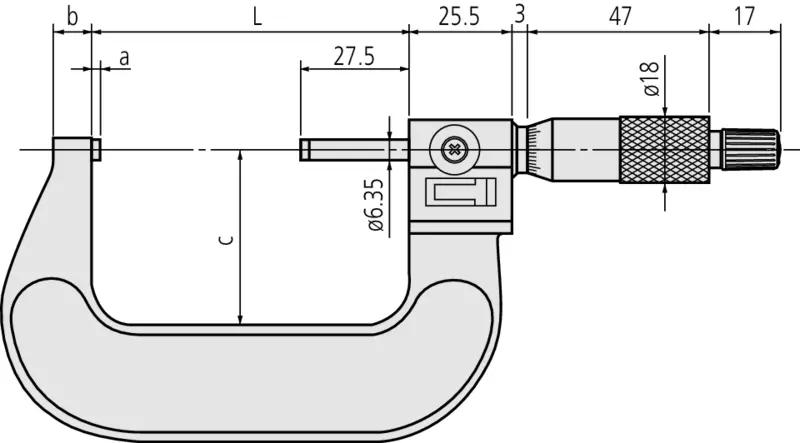

Mitutoyo Digit Outside Micrometer Dimensions

L:	30 mm
a:	2.5 mm
b:	5 mm
c:	26 mm

Variants

All products of product family Series 193:

	Digit Outside Micrometer		Digit Outside Micrometer
	0-25mm, 0,001mm		0-1″
	Mitutoyo Digit Outside Micrometer Part Number: 193-111		Mitutoyo Digit Outside Micrometer Part Number: 193-211
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer
	25-50mm		1-2″
	Mitutoyo Digit Outside Micrometer Part Number: 193-102		Mitutoyo Digit Outside Micrometer Part Number: 193-212
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer
	25-50mm, 0,001mm		2-3″
	Mitutoyo Digit Outside Micrometer Part Number: 193-112		Mitutoyo Digit Outside Micrometer Part Number: 193-213
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer
	50-75mm		3-4″
	Mitutoyo Digit Outside Micrometer Part Number: 193-103		Mitutoyo Digit Outside Micrometer Part Number: 193-214
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer Set
	50-75mm, 0,001mm		0-75mm (3 pcs.)
	Mitutoyo Digit Outside Micrometer Part Number: 193-113		Mitutoyo Digit Outside Micrometer Part Number: 193-901
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer Set
	75-100mm		0-100mm (4 pcs.)
	Mitutoyo Digit Outside Micrometer Part Number: 193-104		Mitutoyo Digit Outside Micrometer Part Number: 193-902
	MFor more : sales@inosaki.my		For more : sales@inosaki.my
	Digit Outside Micrometer		Digit Outside Micrometer Set
	75-100mm, 0,001mm		0-3″, (3 pcs.)
	Mitutoyo Digit Outside Micrometer Part Number: 193-114		Mitutoyo Digit Outside Micrometer Part Number: 193-923
	For more : sales@inosaki.my		For more : sales@inosaki.my

Accessories

Optional accessories:

	Micrometer Stand, 45° Angle Type
	for Micrometer 0-50mm/0-2″
	156-105-10
	For more : sales@inosaki.my
	Micrometer Stand, Adjustable Angle Type
	for Micrometer 0-100mm/0-4″
	156-101-10
