$ 195.73 Original price was: $ 195.73.$ 153.64Current price is: $ 153.64.
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
Digital/Analog: |
Analog
|
Inch-Metric: |
Metric
|
Range: |
0,8
|
Graduation: |
0.01 mm
|
Graduation: |
0.01
|
MPE any 10 scale divisions: |
5 µm
|
MPE any 1/2 revolution: |
6 µm
|
MPE measuring range: |
8 µm
|
H MPE (Hysteresis): |
3 µm
|
R MPE (Repeatability): |
3 µm
|
Carbide stylus tip ø2 mm No.: |
103006
|
Contact point: |
Thread M 1.7 x 0.35
|
Mass: |
46 g
|
Functions: |
Basic set
|

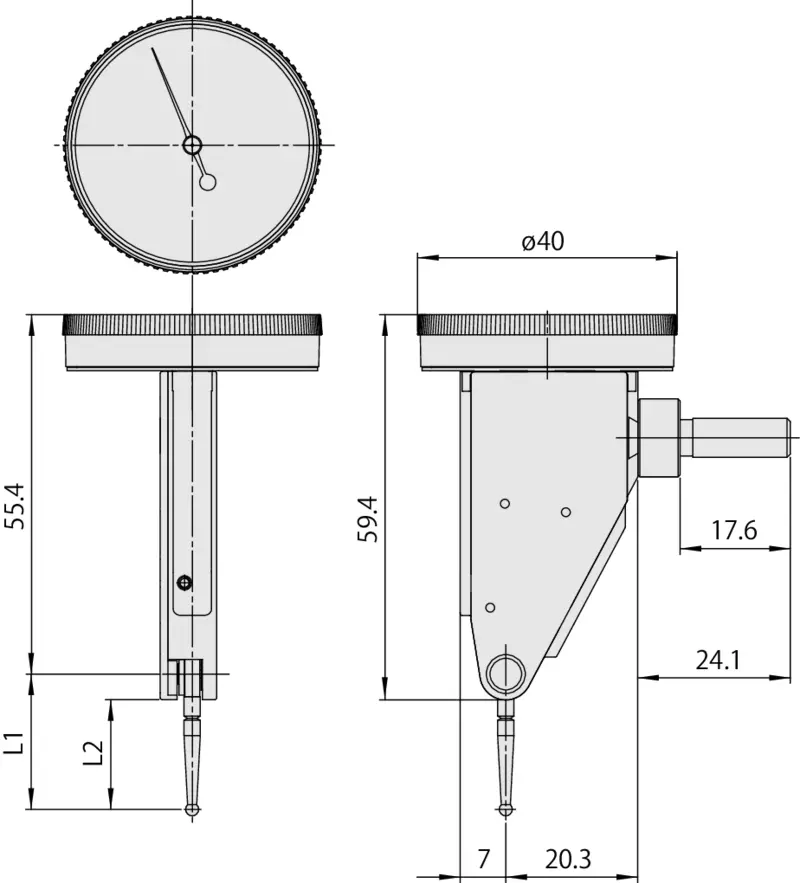

L1: |
20.9 mm
|
L2: |
17,4 mm
|
All products of product family Series 513:
![]() |
Dial Test Indicator, Horizontal Type |
![]() |
Dial Test Indicator, Horizontal Type |
0,8mm, 0,01mm, 8mm Stem | Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus | ||
Mitutoyo Dial Test Indicator Part Number: 513-404-10E | Mitutoyo Dial Test Indicator Part Number: 513-405-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horizontal Type | ![]() |
Dial Test Indicator, Horizontal Type |
Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus | Basic Set, 1mm, 0,01mm, 8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-414-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horizontal Type | ![]() |
Dial Test Indicator, Horizontal Type |
Full Set, 1mm, 0.01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp | Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus | ||
Mitutoyo Dial Test Indicator Part Number: 513-415-10T | Mitutoyo Dial Test Indicator Part Number: 513-424-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horizontal Type | ![]() |
Dial Test Indicator, Horizontal Type |
Basic Set, 0,6mm, 0,002mm, 8mm Stem | Basic Set, 1,5mm, 0,01mm, 8mm Stem, Stylus | ||
Mitutoyo Dial Test Indicator Part Number: 513-425-10E | Mitutoyo Dial Test Indicator Part Number: 513-426-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horiz. 20° Face |
![]() |
Dial Test Indicator, Vertical Type |
Basic Set, 0,4mm, 0,002mm, 8mm Stem, Stylus | Basic Set, 0,8mm, 0,01mm, 8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-445-10E | Mitutoyo Dial Test Indicator Part Number: 513-454-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horiz., Ruby Sty. |
![]() |
Dial Test Indicator, Horiz., Ruby Sty. |
Basic Set, 0,14mm, 0,001mm, 8mm Stem, Stylus | Basic Set, 0,8mm, 0,01mm, 8mm Stem, Stylus | ||
Mitutoyo Dial Test Indicator Part Number: 513-471-10E | Mitutoyo Dial Test Indicator Part Number: 513-474-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator, Horiz., Ruby Sty. |
![]() |
Dial Test Indicator, Horiz., Ruby Sty. |
Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus | Basic Set, 1mm, 0,01mm, 8mm Stem, Stylus | ||
Mitutoyo Dial Test Indicator Part Number: 513-475-10E | Mitutoyo Dial Test Indicator Part Number: 513-477-10E | ||
More Info | More Info | ||
![]() |
Dial Test Indicator Parallel Type |
![]() |
Dial Test Indicator, Vertical Type |
Basic Set, 0,8mm, 0,01, 8mm Stem, Stylus | 0,2mm, 0,002mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-484-10E | Mitutoyo Dial Test Indicator Part Number: 513-455-10T | ||
More Info | For more : Contact us | ||
![]() |
Dial Test Indicator, Vertical Type | ![]() |
Dial Test Indicator, Vertical Type |
0,03″, 0,0005″, 4/9,52mm Stem, Bracket | 0,8mm, 0,01mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-452-10T | Mitutoyo Dial Test Indicator Part Number: 513-454-10T | ||
For more : Contact us | For more : Contact us | ||
![]() |
Dial Test Indicator, Vertical Type | ![]() |
Dial Test Indicator, Vertical Type |
0,8mm, 0,01mm, 4/8mm Stem | 0,03″, 0,0005″, 9,52mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-454-10A | Mitutoyo Dial Test Indicator Part Number: 513-452-10E | ||
For more : Contact us | For more : Contact us | ||
![]() |
Dial Test Indicator, Vertical Type | ![]() |
Dial Test Indicator, Vertical Type |
0,2mm, 0,002mm, 4/8m Stem | 0,008″, 0,0001″, 4/9,52mm Stem, Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-455-10A | Mitutoyo Dial Test Indicator Part Number: 513-453-10T | ||
For more : Contact us | For more : Contact us | ||
![]() |
Dial Test Indicator, Vertical Type | ![]() |
Dial Test Indicator, Vertical Type |
0,2mm, 0,002mm, 8mm Stem | 0,008″, 0,0001″, 9,52mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-455-10E | Mitutoyo Dial Test Indicator Part Number: 513-453-10E | ||
For more : Contact us | For more : Contact us | ||
![]() |
Dial Test Indicator, Vertical Type | ||
0,5mm, 0,01mm, 8mm Stem | |||
Mitutoyo Dial Test Indicator Part Number: 513-456-10E | |||
For more : Contact us |
Optional accessories:
![]() |
Limit Hands (Green) 2 pcs. |
Dial Indicator Series 1, Test Indicator | |
Mitutoyo Part Number: 21AAB363 | |
For more : Contact us |
Consumable spares:
![]() |
Stylus for Series 513 |
D= 2mm, 17,4mm Length, Carbide | |
Mitutoyo Part Number: 103006 | |
For more : Contact us |
