Mitutoyo Dial Test Indicator, Horizontal Type – Series 513 – 0,8mm, 0,01mm, 8mm Stem
$ 110.17
SKU: Mitutoyo 513-404-10E
Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-404-10E
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
Mitutoyo Dial Test Indicator Feature:
Digital/Analog: |
Analog
|
Inch-Metric: |
Metric
|
Type: |
Basic set
|
Graduation: |
0.01 mm
|
Graduation: |
0.01
|
MPE any 10 scale divisions: |
5 µm
|
MPE any 1/2 revolution: |
6 µm
|
MPE measuring range: |
8 µm
|
H MPE (Hysteresis): |
3 µm
|
R MPE (Repeatability): |
3 µm
|
Measuring force: |
0.01-0.3 N
|
Carbide stylus tip ø2 mm No.: |
103006
|
Contact point: |
Thread M 1.7 x 0.35
|
Mass: |
45 g
|
Functions: |
Basic set
|

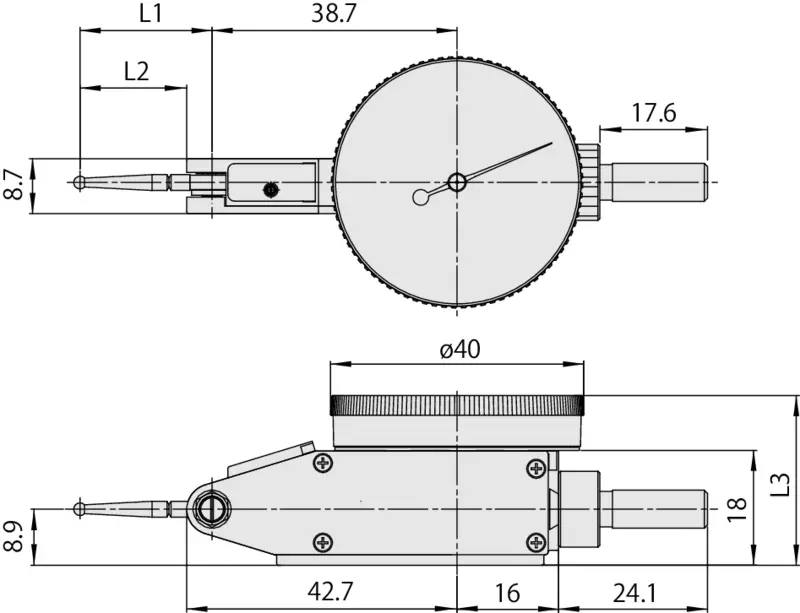

Mitutoyo Dial Test Indicator Dimensions
L1: |
20.9 mm
|
L2: |
17,4 mm
|
L3: |
27 mm
|
Variants
All products of product family Series 513:
Dial Test Indicator, Horizontal, Compact | Dial Test Indicator, Horizontal Type | ||
0,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-466-10E | Mitutoyo Dial Test Indicator Part Number: 513-424-10T | ||
For more : sales@inosaki.my | For more : sales@inosaki.my | ||
Dial Test Indicator, Horizontal Type
|
Dial Test Indicator, Horizontal Type | ||
0,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-424-10E | Mitutoyo Dial Test Indicator Part Number: 513-414-10T | ||
More Info | For more : sales@inosaki.my | ||
Dial Test Indicator, Horizontal Type | Dial Test Indicator, Horizontal Type | ||
0,5mm, 0,01mm, 8mm Stem | 0,8mm, 0,01mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-414-10E | Mitutoyo Dial Test Indicator Part Number: 513-404-10T | ||
More Info | For more : sales@inosaki.my | ||
Dial Test Indicator, Horizontal, Compact | Dial Test Indicator, Horizontal Type | ||
0,8mm, 0,01mm, 8mm Stem | 1mm, 0,01mm, 4/8mm Stem, with Bracket | ||
Mitutoyo Dial Test Indicator Part Number: 513-464-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10T | ||
For more : sales@inosaki.my | More Info | ||
Dial Test Indicator, Horizontal Type | Dial Test Indicator, Horizontal Type | ||
1mm, 0,01mm, 8mm Stem | 0,8mm, 0,01mm, 4/8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-415-10E | Mitutoyo Dial Test Indicator Part Number: 513-404-10A | ||
More Info | For more : sales@inosaki.my | ||
Dial Test Indicator, Horizontal Type | Dial Test Indicator, Horizontal Type | ||
1,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-426-10E | Mitutoyo Dial Test Indicator Part Number: 513-414-10A | ||
More Info | For more : sales@inosaki.my | ||
Dial Test Indicator, Horiz., Ruby Sty. | Dial Test Indicator, Horizontal Type | ||
0,5mm, 0,01mm, 8mm Stem | 1mm, 0,01mm, 4/8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-478-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10A | ||
For more : sales@inosaki.my | For more : sales@inosaki.my | ||
Dial Test Indicator, Horiz., Ruby Sty. | Dial Test Indicator, Horizontal Type | ||
0,8mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-474-10E | Mitutoyo Dial Test Indicator Part Number: 513-424-10A | ||
More Info | For more : sales@inosaki.my | ||
Dial Test Indicator, Horiz., Ruby Sty. | Dial Test Indicator, Horizontal Type | ||
1mm, 0,01mm, 8mm Stem | 1,5mm, 0,01mm, 4/8mm Stem | ||
Mitutoyo Dial Test Indicator Part Number: 513-477-10E | Mitutoyo Dial Test Indicator Part Number: 513-426-10A | ||
More Info | For more : sales@inosaki.my |
Accessories
Optional accessories:
Limit Hands (Green) 2 pcs. | |
Dial Indicator Series 1, Test Indicator | |
21AAB363 | |
For more : sales@inosaki.my |
Standard accessories:
Swivel Clamp | |
for D=4/8mm, Dovetail | |
900321 | |
For more : sales@inosaki.my | |
Holding Bar for Swivel Clamp | |
9x9mm, 100mm Length | |
900209 | |
For more : sales@inosaki.my |
Spare Parts
Consumable spares:
Stylus for Series 513 | |
D=2mm, 17,4mm Length, Carbide | |
103006 |
Weight | 0.045 kg |
---|
