Mitutoyo Dial Test Indicator, Horizontal Type – Series 513 – 0,6mm, 0,002mm, 8mm Stem

$ 177.10

SKU: Mitutoyo 513-425-10E

Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-425-10E

A versatile anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.



Mitutoyo Dial Test Indicator Feature:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
0,6
Graduation:
0.002 mm
Graduation:
0.002
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE any 1
revolution:
5 µm
MPE measuring range:
7 µm
H MPE (Hysteresis):
4 µm
R MPE (Repeatability):
1 µm
Measuring force:
0,01 – 0,4 N
Carbide stylus tip ø2 mm No.:
103011
Contact point:
Thread M 1.7 x 0.35
Mass:
45 g
Functions:
Basic set



Mitutoyo Dial Test Indicator Dimensions

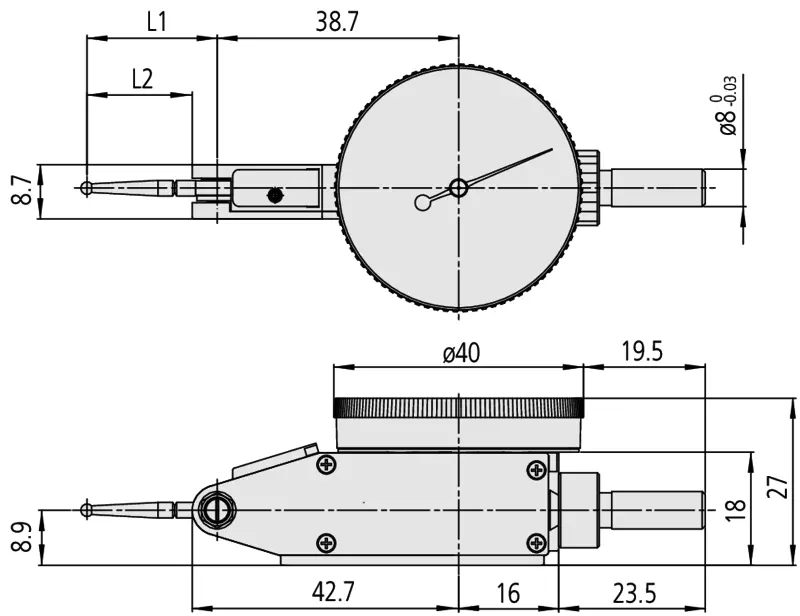

513-401-10h_d1.eps
L1:
18.7 mm
L2:
15,2 mm
L3:
28 mm























Variants

All products of product family Series 513:

Dial Test Indicator, Horizontal Type
0,14mm, 0,001mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-401-10E
For more : sales@inosaki.my
Dial Test Indicator, Horiz., Ruby Sty.
0,14mm, 0,001mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-471-10E
More Info
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-405-10E
More Info
Dial Test Indicator, Horiz., Ruby Sty.
0,2mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-475-10E
More Info
Dial Test Indicator, Horizontal, Compact
0,2mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-465-10E
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 4/8mm Stem, with Bracket
Mitutoyo Dial Test Indicator Part Number: 513-405-10T
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 4/8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-405-10A
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,6mm, 0,002mm, 4/8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-425-10A
For more : sales@inosaki.my



Accessories

Optional accessories:

21aab363_z1.webp Limit Hands (Green) 2 pcs.
Dial Indicator Series 1, Test Indicator
21AAB363
For more : sales@inosaki.my



Spare Parts

Consumable spares:

Stylus for Series 513
D=˜2mm, 15,2mm Length, Carbide
103011
Weight 0.045 kg
