Name: Mitutoyo Dial Test Indicator, Horizontal Type - Series 513 - 0,5mm, 0,01mm, 8mm Stem - INOSAKI Automation Components
SKU: Mitutoyo-513-414-10E
Price: 174.11 USD
Availability: InStock

Original price was: $ 202.17.Current price is: $ 174.11.

SKU Mitutoyo-513-414-10E Category Mitutoyo Lever Indicators

Product Description

Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-414-10E

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Mitutoyo Dial Test Indicator Feature:

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	Basic set
Type:	Basic set
Graduation:	0.01 mm
Graduation:	0.01
MPE any 10 scale divisions:	5 µm
MPE measuring range:	10 µm
H MPE (Hysteresis):	4 µm
R MPE (Repeatability):	3 µm
Measuring force:	0.01-0.2 N
Carbide stylus tip ø2 mm No.:	131324
Contact point:	Thread M 1.7 x 0.35
Mass:	45 g

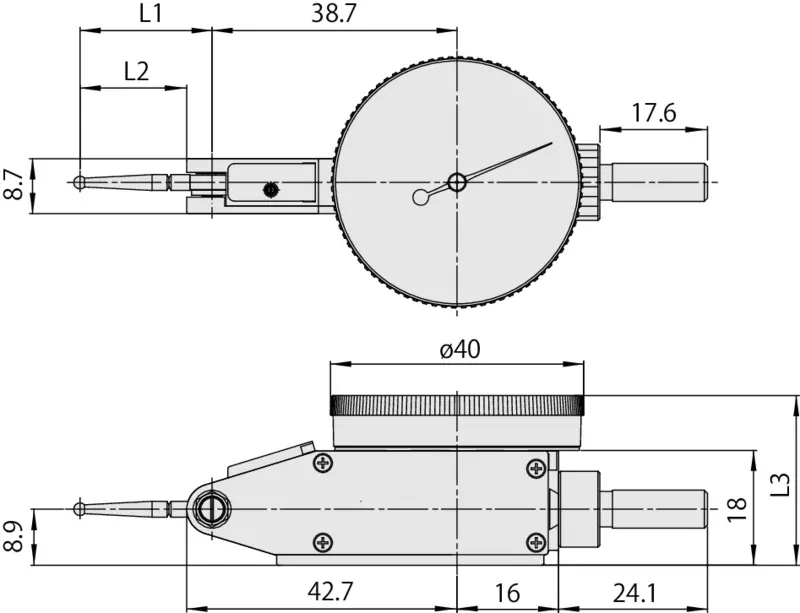

Mitutoyo Dial Test Indicator Dimensions

L1:	37.4 mm
L2:	33,9 mm
L3:	27 mm

Variants

All products of product family Series 513:

	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	0,8mm, 0,01mm, 8mm Stem		Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-404-10E		Mitutoyo Dial Test Indicator Part Number: 513-405-10E
	More Info		More Info
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus		Basic Set, 1mm, 0,01mm, 8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-414-10E		Mitutoyo Dial Test Indicator Part Number: 513-415-10E
	More Info		More Info
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Full Set, 1mm, 0.01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp		Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-415-10T		Mitutoyo Dial Test Indicator Part Number: 513-424-10E
	More Info		More Info
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Basic Set, 0,6mm, 0,002mm, 8mm Stem		Basic Set, 1,5mm, 0,01mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-425-10E		Mitutoyo Dial Test Indicator Part Number: 513-426-10E
	More Info		More Info
	Dial Test Indicator, Horiz. 20° Face		Dial Test Indicator, Vertical Type
	Basic Set, 0,4mm, 0,002mm, 8mm Stem, Stylus		Basic Set, 0,8mm, 0,01mm, 8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-445-10E		Mitutoyo Dial Test Indicator Part Number: 513-454-10E
	More Info		More Info
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horiz., Ruby Sty.
	Basic Set, 0,14mm, 0,001mm, 8mm Stem, Stylus		Basic Set, 0,8mm, 0,01mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-471-10E		Mitutoyo Dial Test Indicator Part Number: 513-474-10E
	More Info		More Info
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horiz., Ruby Sty.
	Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus		Basic Set, 1mm, 0,01mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-475-10E		Mitutoyo Dial Test Indicator Part Number: 513-477-10E
	More Info		More Info
	Dial Test Indicator Parallel Type		Dial Test Indicator, Horizontal, Compact
	Basic Set, 0,8mm, 0,01, 8mm Stem, Stylus		Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus
	Mitutoyo Dial Test Indicator Part Number: 513-484-10E		Mitutoyo Dial Test Indicator Part Number: 513-465-10E
	More Info		For more : Contact us
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Full Set, 0,2mm, 0,002mm, 4/8mm Stem, Styli, Bar, Swivel Clamp		Plus Set, 0,2mm, 0,002mm, 4/8mm Stem, 2 Styli
	Mitutoyo Dial Test Indicator Part Number: 513-405-10T		Mitutoyo Dial Test Indicator Part Number: 513-405-10A
			For more : Contact us
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Plus Set, 0,6mm, 0,002mm, 4/8mm Stem, 2 Styli		0,14mm, 0,001mm, 8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-425-10A		Mitutoyo Dial Test Indicator Part Number: 513-401-10E
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horizontal, Compact		Dial Test Indicator, Horizontal Type
	Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus		Full Set, 0,5mm, 0,01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp
	Mitutoyo Dial Test Indicator Part Number: 513-466-10E		Mitutoyo Dial Test Indicator Part Number: 513-424-10T
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Full Set, 0,5mm, 0,01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp		Full Set, 0,8mm, 0,01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp
	Mitutoyo Dial Test Indicator Part Number: 513-414-10T		Mitutoyo Dial Test Indicator Part Number: 513-404-10T
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horizontal, Compact		Dial Test Indicator, Horizontal Type
	Basic Set, 0,8mm, 0,01mm, 8mm Stem, Stylus		Plus Set, 0,8mm, 0,01mm, 4/8mm Stem, 2 Styli
	Mitutoyo Dial Test Indicator Part Number: 513-464-10E		Mitutoyo Dial Test Indicator Part Number: 513-404-10A
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	Plus Set, 0,5mm, 0,01mm, 4/8mm Stem, 2 Styli		Plus Set, 1mm, 0,01mm, 4/8mm Stem, 2 Styli
	Mitutoyo Dial Test Indicator Part Number: 513-414-10A		Mitutoyo Dial Test Indicator Part Number: 513-415-10A
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horizontal Type
	Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus		Plus Set, 0,5mm, 0,01mm, 4/8mm Stem, 2 Styli
	Mitutoyo Dial Test Indicator Part Number: 513-478-10E		Mitutoyo Dial Test Indicator Part Number: 513-424-10A
	For more : Contact us		For more : Contact us
	Dial Test Indicator, Horizontal Type
	Plus Set, 1,5mm, 0,01mm, 4/8mm Stem, 2 Styli
	Mitutoyo Dial Test Indicator Part Number: 513-426-10A
	For more : Contact us

Accessories

Optional accessories:

	Limit Hands (Green) 2 pcs.
	Dial Indicator Series 1, Test Indicator
	Mitutoyo Part Number: 21AAB363
	For more : Contact us

Standard accessories:

	Swivel Clamp
	for D= 4/8mm, Dovetail
	Mitutoyo Part Number: 900321
	For more : Contact us
	Holding Bar for Swivel Clamp
	9x9mm, 100mm Length
	Mitutoyo Part Number: 900209
	For more : Contact us

Spare Parts

Consumable spares:

	Stylus for Series 513
	D= 2mm, 33,9mm Length, Carbide
	Mitutoyo Part Number: 131324
	For more : Contact us
