Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-424-10E

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.



Mitutoyo Dial Test Indicator Feature:

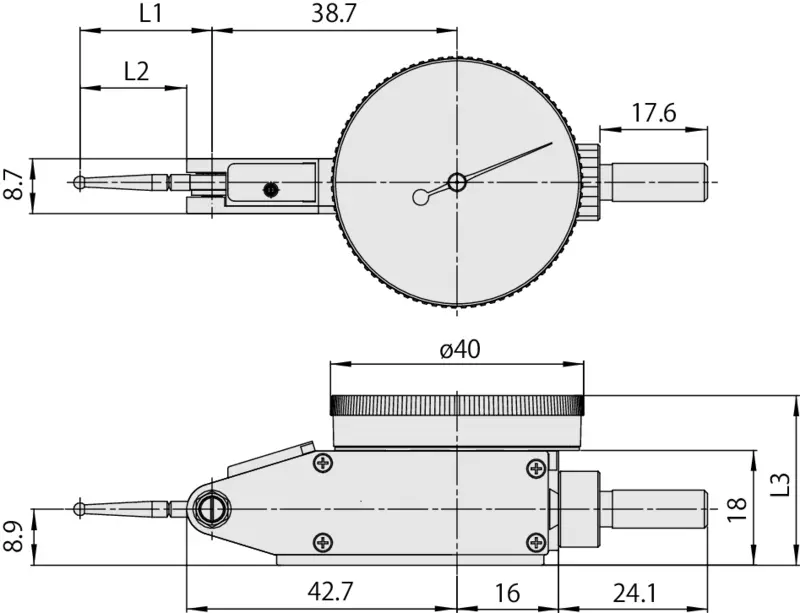

Mitutoyo Dial Test Indicator Dimensions























Variants

All products of product family Series 513:

	Dial Test Indicator, Horizontal, Compact		Dial Test Indicator, Horizontal Type
	0,5mm, 0,01mm, 8mm Stem		0,5mm, 0,01mm, 4/8mm Stem, with Bracket
	Mitutoyo Dial Test Indicator Part Number: 513-466-10E		Mitutoyo Dial Test Indicator Part Number: 513-424-10T
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	0,8mm, 0,01mm, 8mm Stem		0,5mm, 0,01mm, 4/8mm Stem, with Bracket
	Mitutoyo Dial Test Indicator Part Number: 513-404-10E		Mitutoyo Dial Test Indicator Part Number: 513-414-10T
	More Info		For more : sales@inosaki.my
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	0,5mm, 0,01mm, 8mm Stem		0,8mm, 0,01mm, 4/8mm Stem, with Bracket
	Mitutoyo Dial Test Indicator Part Number: 513-414-10E		Mitutoyo Dial Test Indicator Part Number: 513-404-10T
	More Info		More Info
	Dial Test Indicator, Horizontal, Compact		Dial Test Indicator, Horizontal Type
	0,8mm, 0,01mm, 8mm Stem		1mm, 0,01mm, 4/8mm Stem, with Bracket
	Mitutoyo Dial Test Indicator Part Number: 513-464-10E		Mitutoyo Dial Test Indicator Part Number: 513-415-10T
	For more : sales@inosaki.my		More Info
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	1mm, 0,01mm, 8mm Stem		0,8mm, 0,01mm, 4/8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-415-10E		Mitutoyo Dial Test Indicator Part Number: 513-404-10A
	More Info		For more : sales@inosaki.my
	Dial Test Indicator, Horizontal Type		Dial Test Indicator, Horizontal Type
	1,5mm, 0,01mm, 8mm Stem		0,5mm, 0,01mm, 4/8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-426-10E		Mitutoyo Dial Test Indicator Part Number: 513-414-10A
	More Info		For more : sales@inosaki.my
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horizontal Type
	0,5mm, 0,01mm, 8mm Stem		1mm, 0,01mm, 4/8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-478-10E		Mitutoyo Dial Test Indicator Part Number: 513-415-10A
	For more : sales@inosaki.my		For more : sales@inosaki.my
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horizontal Type
	0,8mm, 0,01mm, 8mm Stem		0,5mm, 0,01mm, 4/8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-474-10E		Mitutoyo Dial Test Indicator Part Number: 513-424-10A
	More Info		For more : sales@inosaki.my
	Dial Test Indicator, Horiz., Ruby Sty.		Dial Test Indicator, Horizontal Type
	1mm, 0,01mm, 8mm Stem		1,5mm, 0,01mm, 4/8mm Stem
	Mitutoyo Dial Test Indicator Part Number: 513-477-10E		Mitutoyo Dial Test Indicator Part Number: 513-426-10A
	More Info		For more : sales@inosaki.my



Accessories

Optional accessories:

	Limit Hands (Green) 2 pcs.
	Dial Indicator Series 1, Test Indicator
	21AAB363
	For more : sales@inosaki.my

Standard accessories:

	Swivel Clamp
	for D=˜4/8mm, Dovetail
	900321
	For more : sales@inosaki.my
	Holding Bar for Swivel Clamp
	9x9mm, 100mm Length
	900209
	For more : sales@inosaki.my



Spare Parts

Consumable spares:

	Stylus for Series 513
	D=˜2mm, 18,7mm Length, Carbide
	137557
