Mitutoyo Dial Test Indicator, Horizontal Type – Series 513 – 0,2mm, 0,002mm, 8mm Stem

$ 156.17

SKU: Mitutoyo 513-405-10E

Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-405-10E

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.



Mitutoyo Dial Test Indicator Feature:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
0,2
Graduation:
0.002 mm
Graduation:
0.002
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE measuring range:
3 µm
H MPE (Hysteresis):
2 µm
R MPE (Repeatability):
1 µm
Measuring force:
0,01 – 0,3 N
Carbide stylus tip ø2 mm No.:
103011
Contact point:
Thread M 1.7 x 0.35
Mass:
45 g
Functions:
Basic set

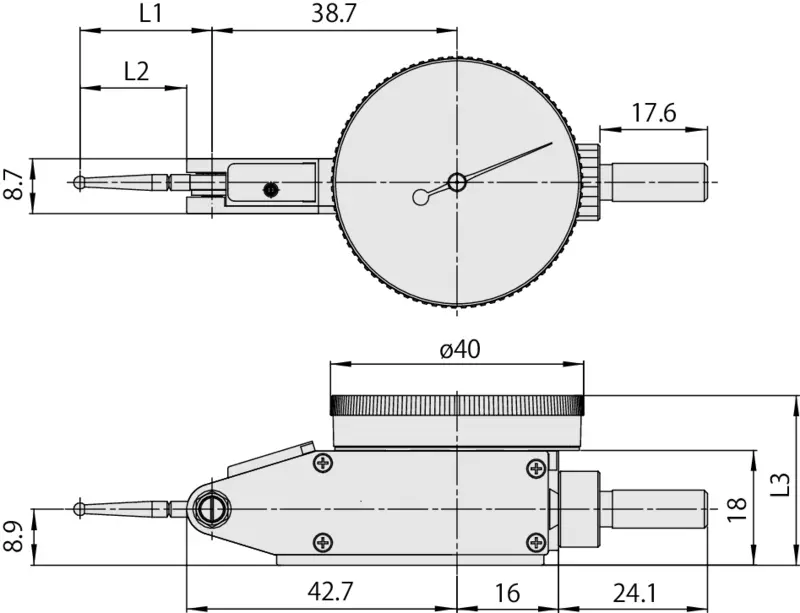

Mitutoyo Dial Test Indicator Dimensions

dimensions_series_513_horizontal_type.eps
L1:
18.7 mm
L2:
15,2 mm
L3:
27 mm





Accessories

Optional accessories:

21aab363_z1.webp Limit Hands (Green) 2 pcs.
Dial Indicator Series 1, Test Indicator
21AAB363
For more : sales@inosaki.my



Spare Parts

Consumable spares:

Stylus for Series 513
D=˜2mm, 15,2mm Length, Carbide
103011
Weight 0.045 kg
