A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories and a ruby contact-point stylus.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Type: |
Basic set – Ruby contact point
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| MPE any 10 scale divisions: |
5 µm
|
| MPE any 1/2 revolution: |
6 µm
|
| MPE measuring range: |
8 µm
|
| H MPE (Hysteresis): |
3 µm
|
| R MPE (Repeatability): |
3 µm
|
| Measuring force: |
0.01-0.3 N
|
| Ruby stylus tip ø2 mm No.: |
21CZA201
|
| Contact point: |
Thread M 1.7 x 0.35
|
| Mass: |
45 g
|
| Functions: |
Basic set – ruby contact point
|

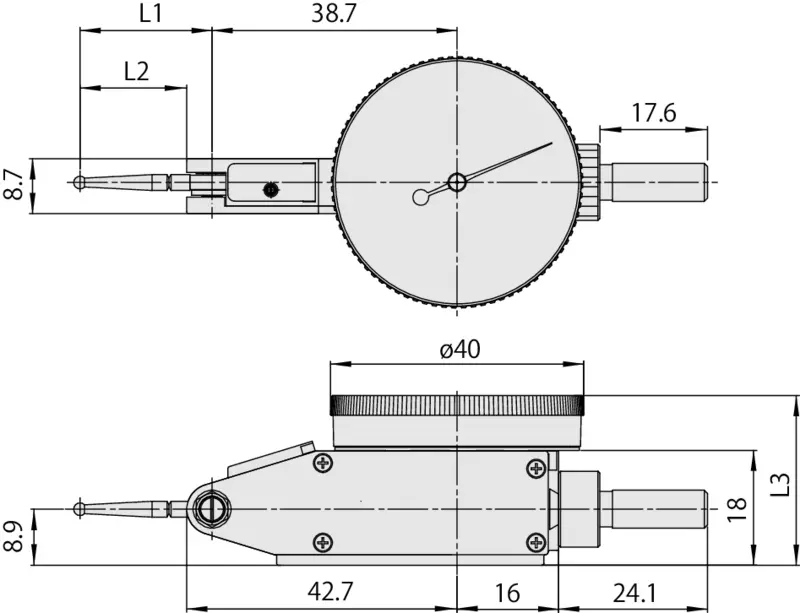

| L1: |
20.9 mm
|
| L2: |
17,4 mm
|
| L3: |
27 mm
|
All products of product family Series 513:
 |
Dial Test Indicator, Horizontal, Compact |  |
Dial Test Indicator, Horizontal Type |
| 0,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem, with Bracket | ||
| Mitutoyo Dial Test Indicator Part Number: 513-466-10E | Mitutoyo Dial Test Indicator Part Number: 513-424-10T | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
|
Dial Test Indicator, Horizontal Type
|
 |
Dial Test Indicator, Horizontal Type |
| 0,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem, with Bracket | ||
| Mitutoyo Dial Test Indicator Part Number: 513-424-10E | Mitutoyo Dial Test Indicator Part Number: 513-414-10T | ||
| More Info | For more : sales@inosaki.com | ||
|
Dial Test Indicator, Horizontal Type | |
Dial Test Indicator, Horizontal Type |
| 0,5mm, 0,01mm, 8mm Stem | 0,8mm, 0,01mm, 4/8mm Stem, with Bracket | ||
| Mitutoyo Dial Test Indicator Part Number: 513-414-10E | Mitutoyo Dial Test Indicator Part Number: 513-404-10T | ||
| More Info | More Info | ||
|
Dial Test Indicator, Horizontal, Compact |  |
Dial Test Indicator, Horizontal Type |
| 0,8mm, 0,01mm, 8mm Stem | 1mm, 0,01mm, 4/8mm Stem, with Bracket | ||
| Mitutoyo Dial Test Indicator Part Number: 513-464-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10T | ||
| For more : sales@inosaki.com | More Info | ||
 |
Dial Test Indicator, Horizontal Type | |
Dial Test Indicator, Horizontal Type |
| 0,8mm, 0,01mm, 8mm Stem | 0,8mm, 0,01mm, 4/8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-404-10E | Mitutoyo Dial Test Indicator Part Number: 513-404-10A | ||
| More Info | For more : sales@inosaki.com | ||
|
Dial Test Indicator, Horizontal Type | |
Dial Test Indicator, Horizontal Type |
| 1mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-415-10E | Mitutoyo Dial Test Indicator Part Number: 513-414-10A | ||
| More Info | For more : sales@inosaki.com | ||
 |
Dial Test Indicator, Horizontal Type | |
Dial Test Indicator, Horizontal Type |
| 1,5mm, 0,01mm, 8mm Stem | 1mm, 0,01mm, 4/8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-426-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10A | ||
| More Info | For more : sales@inosaki.com | ||
 |
Dial Test Indicator, Horiz., Ruby Sty. | |
Dial Test Indicator, Horizontal Type |
| 0,5mm, 0,01mm, 8mm Stem | 0,5mm, 0,01mm, 4/8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-478-10E | Mitutoyo Dial Test Indicator Part Number: 513-424-10A | ||
| For more : sales@inosaki.com | For more : sales@inosaki.com | ||
 |
Dial Test Indicator, Horiz., Ruby Sty. |  |
Dial Test Indicator, Horizontal Type |
| 1mm, 0,01mm, 8mm Stem | 1,5mm, 0,01mm, 4/8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-477-10E | Mitutoyo Dial Test Indicator Part Number: 513-426-10A | ||
| More Info | For more : sales@inosaki.com |
Optional accessories:
 |
Limit Hands (Green) 2 pcs. |
| Dial Indicator Series 1, Test Indicator | |
| 21AAB363 | |
| For more : sales@inosaki.com |
Standard accessories:
 |
Swivel Clamp |
| for D=4/8mm, Dovetail | |
| 900321 | |
| For more : sales@inosaki.com | |
 |
Holding Bar for Swivel Clamp |
| 9x9mm, 100mm Length | |
| 900209 | |
| For more : sales@inosaki.com |
Consumable spares:
 |
Stylus for Series 513 |
| D=2mm, 17,4mm Length, Ruby | |
| 21CZA201 |
| Weight | 0.045 kg |
|---|
