Mitutoyo Dial Test Indicator, Horiz, Ruby Sty – Series 513 – 0,2mm, 0,002mm, 8mm Stem

$ 141.24

SKU: Mitutoyo 513-475-10E

Description: Mitutoyo Dial Test Indicator, Manufacturer Part Number 513-475-10E

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.



Mitutoyo Dial Test Indicator Feature:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
0,2
Graduation:
0.002 mm
Graduation:
0.002
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE measuring range:
3 µm
H MPE (Hysteresis):
2 µm
R MPE (Repeatability):
1 µm
Measuring force:
0,01 – 0,3 N
Ruby stylus tip ø2 mm No.:
21CZB068
Contact point:
Thread M 1.7 x 0.35
Mass:
45 g
Functions:
Basic set – ruby contact point

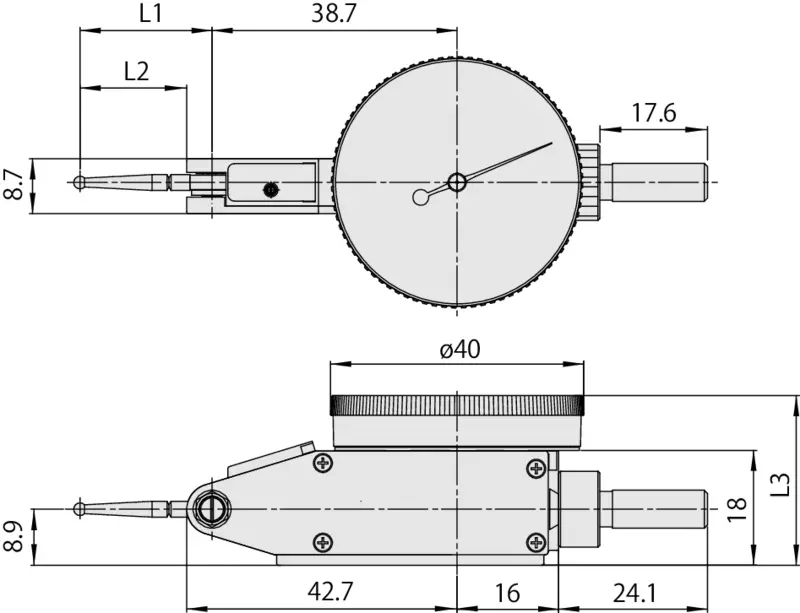

Mitutoyo Dial Test Indicator Dimensions

dimensions_series_513_horizontal_type.eps
L1:
18.7 mm
L2:
15,2 mm
L3:
27 mm























Variants

All products of product family Series 513:

Dial Test Indicator, Horizontal Type
0,14mm, 0,001mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-401-10E
For more : sales@inosaki.my
Dial Test Indicator, Horiz., Ruby Sty.
0,14mm, 0,001mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-471-10E
More Info
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-405-10E
More Info
Dial Test Indicator, Horizontal, Compact
0,2mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-465-10E
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,6mm, 0,002mm, 8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-425-10E
More Info
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 4/8mm Stem, with Bracket
Mitutoyo Dial Test Indicator Part Number: 513-405-10T
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,2mm, 0,002mm, 4/8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-405-10A
For more : sales@inosaki.my
Dial Test Indicator, Horizontal Type
0,6mm, 0,002mm, 4/8mm Stem
Mitutoyo Dial Test Indicator Part Number: 513-425-10A
For more : sales@inosaki.my



Accessories

Optional accessories:

21aab363_z1.webp Limit Hands (Green) 2 pcs.
Dial Indicator Series 1, Test Indicator
21AAB363
For more : sales@inosaki.my



Spare Parts

Consumable spares:

Stylus for Series 513
D=2mm, 15,2mm Length, Ruby
21CZB068
Weight 0.045 kg
