Original price was: $ 295.09.$ 231.15Current price is: $ 231.15.
This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Type: |
Basic set
|
| Range: |
0,4
|
| Graduation: |
0.002 mm
|
| Graduation: |
0.002
|
| MPE any 10 scale divisions: |
2 µm
|
| MPE any 1/2 revolution: |
3 µm
|
| MPE any 1 revolution: |
5 µm
|
| MPE measuring range: |
6 µm
|
| H MPE (Hysteresis): |
4 µm
|
| R MPE (Repeatability): |
1 µm
|
| Measuring force: |
0,01-0,3 N
|
| Carbide stylus tip ø2 mm No.: |
103011
|
| Contact point: |
Thread M 1.7 x 0.35
|
| Mass: |
48 g
|
| Functions: |
Basic set
|

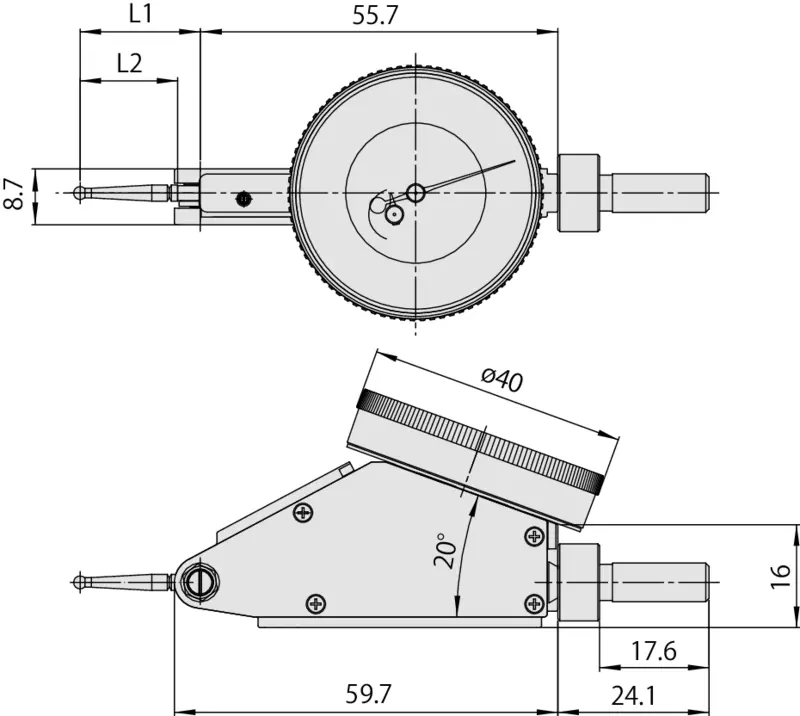

| L1: |
18.7 mm
|
| L2: |
15,2 mm
|
All products of product family Series 513:
 |
Dial Test Indicator, Horizontal Type |
 |
Dial Test Indicator, Horizontal Type |
| 0,8mm, 0,01mm, 8mm Stem | Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-404-10E | Mitutoyo Dial Test Indicator Part Number: 513-405-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horizontal Type |  |
Dial Test Indicator, Horizontal Type |
| Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus | Basic Set, 1mm, 0,01mm, 8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-414-10E | Mitutoyo Dial Test Indicator Part Number: 513-415-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horizontal Type |  |
Dial Test Indicator, Horizontal Type |
| Full Set, 1mm, 0.01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp | Basic Set, 0,5mm, 0,01mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-415-10T | Mitutoyo Dial Test Indicator Part Number: 513-424-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horizontal Type |  |
Dial Test Indicator, Horizontal Type |
| Basic Set, 0,6mm, 0,002mm, 8mm Stem | Basic Set, 1,5mm, 0,01mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-425-10E | Mitutoyo Dial Test Indicator Part Number: 513-426-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Vertical Type |
| Basic Set, 0,4mm, 0,002mm, 8mm Stem, Stylus | Basic Set, 0,8mm, 0,01mm, 8mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-445-10E | Mitutoyo Dial Test Indicator Part Number: 513-454-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horiz., Ruby Sty. |
 |
Dial Test Indicator, Horiz., Ruby Sty. |
| Basic Set, 0,14mm, 0,001mm, 8mm Stem, Stylus | Basic Set, 0,8mm, 0,01mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-471-10E | Mitutoyo Dial Test Indicator Part Number: 513-474-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator, Horiz., Ruby Sty. |
 |
Dial Test Indicator, Horiz., Ruby Sty. |
| Basic Set, 0,2mm, 0,002mm, 8mm Stem, Stylus | Basic Set, 1mm, 0,01mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-475-10E | Mitutoyo Dial Test Indicator Part Number: 513-477-10E | ||
| More Info | More Info | ||
 |
Dial Test Indicator Parallel Type |
 |
Dial Test Indicator, Horiz. 20° Face |
| Basic Set, 0,8mm, 0,01, 8mm Stem, Stylus | Basic Set, 1,6mm, 0,01mm, 8mm Stem, Stylus | ||
| Mitutoyo Dial Test Indicator Part Number: 513-484-10E | Mitutoyo Dial Test Indicator Part Number: 513-444-10E | ||
| More Info | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 0,06″, 0,0005″, 4/9,52mm Stem, 2 Styli | Full Set, 0,4mm, 0,002mm, 4/8mm Stem, Styli, Bar, Swivel Clamp | ||
| Mitutoyo Dial Test Indicator Part Number: 513-446-10A | Mitutoyo Dial Test Indicator Part Number: 513-445-10T | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 0,06″, 0,0005″, 4/9,52mm Stem | Full Set, 1,6mm, 0,01mm, 4/8mm Stem, Styli, Bar, Swivel Clamp | ||
| Mitutoyo Dial Test Indicator Part Number: 513-446-16A | Mitutoyo Dial Test Indicator Part Number: 513-444-10T | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Full Set, 0,06″, 0,0005″, 4/9,52mm Stem, Styli, Bar, Swivel Clamp | Plus Set, 0,06″, 0,0005″, 4/9,52mm Stem, 2 Styli | ||
| Mitutoyo Dial Test Indicator Part Number: 513-442-10T | Mitutoyo Dial Test Indicator Part Number: 513-442-10A | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 0,016″, 0,0001″, 4/9,52mm Stem, 2 Styli | Plus Set, 0,06″, 0,0005″, 4/9,52mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-443-10A | Mitutoyo Dial Test Indicator Part Number: 513-442-16A | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Full Set, 0.06″, 0.0005″, 4/9.52mm Stem | Full Set, 0,06″, 0,0005″, 4/9,52mm Stem, Styli, Bar, Swivel Clamp | ||
| Mitutoyo Dial Test Indicator Part Number: 513-442-16T | Mitutoyo Dial Test Indicator Part Number: 513-446-10T | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 0,016″, 0,0001″, 4/9,52mm Stem, Black Dial | Full Set, 0,06″, 0,0005″, 4/9,52mm Stem | ||
| Mitutoyo Dial Test Indicator Part Number: 513-443-16A | Mitutoyo Dial Test Indicator Part Number: 513-446-16T | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 1,6mm, 0,01mm, 4/8mm Stem, 2 Styli | Full Set, 0.016″, 0.0001″, 4/9.52mm Stem, Styli, Bar, Swivel Clamp | ||
| Mitutoyo Dial Test Indicator Part Number: 513-444-10A | Mitutoyo Dial Test Indicator Part Number: 513-443-10T | ||
| For more : Contact us | For more : Contact us | ||
 |
Dial Test Indicator, Horiz. 20° Face |
 |
Dial Test Indicator, Horiz. 20° Face |
| Plus Set, 0,4mm, 0,002mm, 4/8m Stem, 2 Styli | Full Set, 0,016″, 0,0001″, 4/9,52mm Stem, Bracket, Black Dial | ||
| Mitutoyo Dial Test Indicator Part Number: 513-445-10A | Mitutoyo Dial Test Indicator Part Number: 513-443-16T | ||
| For more : Contact us | For more : Contact us |
Optional accessories:
 |
Limit Hands (Green) 2 pcs. |
| Dial Indicator Series 1, Test Indicator | |
| 21AAB363 | |
| For more : Contact us |
Consumable spares:
 |
Stylus for Series 513 |
| D= 2mm, 15,2mm Length, Carbide | |
| 103011 | |
| For more : Contact us |
| Weight | 0.048 kg |
|---|
