Mitutoyo Dial Indicator Thickness Gauge – Series 7 – 0-10mm, 0,01mm, Groove Depth, Blade Contact Elements

$ 203.94 $ 163.15

SKU: Mitutoyo 7315A

Description: Mitutoyo Dial Indicator Thickness Gauge, Manufacturer Part Number 7315A

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Mitutoyo Dial Indicator Thickness Gauge Feature:

Inch-Metric:
Metric
Functions:
Knife-edge contact point
Range:
0 – 10
Graduation:
0.01 mm
Graduation:
0.01
Accuracy:
±0,015 mm
Measuring force:
≤ 1,4 N
Parallelism:
5 µm
Indicator No.:
2,046AB
Max. measuring depth:
30 mm
Contact point:
Thread M 2.5 x 0.45 mm
Mass:
220 g
Type:
Knife-edge contact point

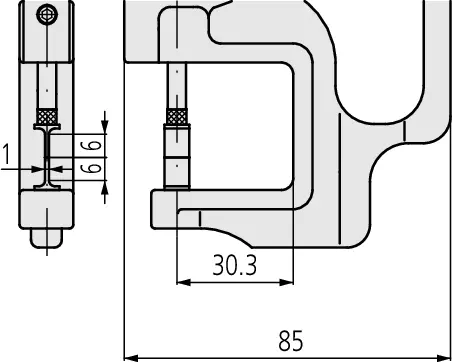

Mitutoyo Dial Indicator Thickness Gauge Dimensions

7315_d1.eps





Variants

All products of product family Series 7:
7327a_z.webp Dial Indicator Thickness Gauge 7326s_z.webp Dial Indicator Thickness Gauge
0-1mm, 0,001mm, Standard, Ceramic Contact Elements 0-0,05″, 0,0001″, Standard
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7327A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7326S
More Info For more : sales@inosaki.my
MITUTOYO DIAL THICKNESS GAUGE 7301A, 0 - 10 mm at Rs 3800/piece in Gurgaon | ID: 25455950691 Dial Indicator Thickness Gauge Mitutoyo 7300A Thickness Gauge with Dial, 0 to 0.5" Dial Indicator Thickness Gauge
0-10mm, 0,01mm, Standard, Ceramic Contact Elements 0-0,5″, 0,001″, Standard, Ceramic Contact Elements
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7301A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7300A
More Info For more : sales@inosaki.my
7321_z.eps Dial Indicator Thickness Gauge 7304A Mitutoyo Standard Dial Thickness Gage: 0-1" - Call 800-469-0132 or Buy Online Dial Indicator Thickness Gauge
0-10mm, 0,01mm, 120mm Throat, Ceramic Contact Elements 0-1″, 0,001″, Standard, Ceramic Contact Elements
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7321A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7304A
More Info For more : sales@inosaki.my
Dial Indicator Thickness Gauge Mitutoyo 7322A Thickness Gauge, Dial, Deep Throat, 0-1", .001", Ceramic Spindle/Anvil, 7 Series | Techni-Tool Dial Indicator Thickness Gauge
0-20mm, 0,01mm, 120mm Throat, Ceramic Contact Elements 0-1″, 0,001″ 4,72″ Throat, Ceramic Contact Elements
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7323A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7322A
More Info For more : sales@inosaki.my
Dial Indicator Thickness Gauge 7312A Mitutoyo Dial Thickness Gage .5" – GreatGages Dial Indicator Thickness Gauge
0-20mm, 0,01mm, Standard, Ceramic Contact Elements 0-0,5″, 0,001″, Lens Thickness
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7305A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7312A
More Info For more : sales@inosaki.my
7313_z.eps Dial Indicator Thickness Gauge Dial Indicator Thickness Gauge
0-10mm, 0,01mm, Lens Thickness 0-0,5″”, 0,001, Groove Depth, Blade Contact Elements
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7313A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7316A
More Info For more : sales@inosaki.my
Dial Indicator Thickness Gauge Dial Indicator Thickness Gauge
0-10mm, 0,01mm, Tube Thickness 0-0,4″, 0,001″, Tube Thickness
Mitutoyo Dial Indicator Thickness Gauge Part Number: 7360A Mitutoyo Dial Indicator Thickness Gauge Part Number: 7361S
More Info For more : sales@inosaki.my



Accessories

Optional accessories:

21azb195.webp Limit Hands (green) 2pcs
Dial Indicator Series 2/3/4
21AZB195
For more : sales@inosaki.my
21azb148_1.webp Bezel Clamp for Dial Gauge
Metric, Series 2/3/4
21AZB148
For more : sales@inosaki.my



Spare parts

Consumable spares:

21azb149_z.webp Spindle Lifting Lever
for S-Type Series 2,3,4 up to 10mm/0,4″
21AZB149
More Info
21azb149_z.webp Spindle Lifting Lever
for S-Type Series 2,3 >10/0,4″ up to 20mm/0,8″
21AZB150
More Info
Weight 0.22 kg
