Name: Mitutoyo Dial Indicator Thickness Gauge - Series 7 - 0-10mm, 0,01mm, 120mm Throat, Ceramic Contact Elements
SKU: Mitutoyo 7321A
Price: 130.68 USD
Availability: InStock

~~$ 130.68~~ $ 111.08

SKU Mitutoyo 7321A Category Mitutoyo Dial Indicator Thickness Gauges

Description: Mitutoyo Dial Indicator Thickness Gauge, Manufacturer Part Number 7321A

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Mitutoyo Dial Indicator Thickness Gauge Feature:

Inch-Metric:	Metric
Functions:	Large jaw capacity and ceramic disc contact points
Range:	0 – 10
Graduation:	0.01 mm
Graduation:	0.01
Accuracy:	±0,015 mm
Measuring force:	≤ 1,4 N
Parallelism:	5 µm
Indicator No.:	2,046AB
Max. measuring depth:	120 mm
Contact point:	Thread M 2.5 x 0.45 mm
Mass:	355 g
Type:	Large jaw capacity and ceramic disc contact points

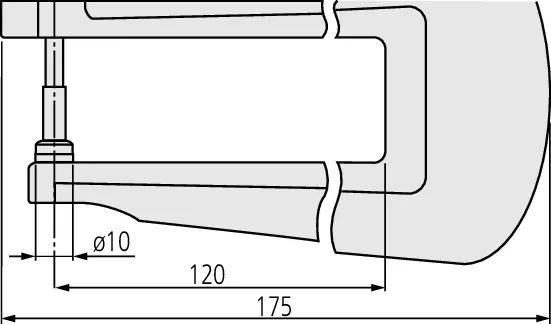

Mitutoyo Dial Indicator Thickness Gauge Dimensions

Variants

All products of product family Series 7:

	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-10mm, 0,01mm, Tube Thickness		0-0,05″, 0,0001″, Standard
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7360A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7326S
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-10mm, 0,01mm, Standard, Ceramic Contact Elements		0-0,5″, 0,001″, Standard, Ceramic Contact Elements
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7301A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7300A
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-1mm, 0,001mm, Standard, Ceramic Contact Elements		0-1″, 0,001″, Standard, Ceramic Contact Elements
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7327A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7304A
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-20mm, 0,01mm, 120mm Throat, Ceramic Contact Elements		0-1″, 0,001″ 4,72″ Throat, Ceramic Contact Elements
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7323A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7322A
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-20mm, 0,01mm, Standard, Ceramic Contact Elements		0-0,5″, 0,001″, Lens Thickness
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7305A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7312A
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-10mm, 0,01mm, Lens Thickness		0-0,5″”, 0,001, Groove Depth, Blade Contact Elements
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7313A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7316A
	More Info		For more : sales@inosaki.com
	Dial Indicator Thickness Gauge		Dial Indicator Thickness Gauge
	0-10mm, 0,01mm, Groove Depth, Blade Contact Elements		0-0,4″, 0,001″, Tube Thickness
	Mitutoyo Dial Indicator Thickness Gauge Part Number: 7315A		Mitutoyo Dial Indicator Thickness Gauge Part Number: 7361S
	More Info		For more : sales@inosaki.com
