Mitutoyo ABS Digital Thickness Gauge – Series 547 – 0-10mm, 0,01mm, Groove Depth
$ 668.38 $ 534.70
SKU: Mitutoyo 547-315
Description: Mitutoyo ABS Digital Thickness Gauge, Manufacturer Part Number 547-315
A Mitutoyo digital-indicator based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for measuring the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.
Mitutoyo ABS Digital Thickness Gauge Feature:
| Inch-Metric: |
Metric
|
| Functions: |
With indicator ID-C No. 543-400BS
|
| Range: |
0-10 mm
|
| Digital step: |
0,01 mm
|
| Accuracy: |
±20 µm
|
| Measuring force: |
≤ 1,5 N
|
| Parallelism: |
10 µm
|
| Indicator No.: |
543-400BS (ID-C)
|
| Max. measuring depth: |
30 mm
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
|
| Contact point: |
Thread M 2.5 x 0.45 mm
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 7000 hours
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Calculation function (with formula): |
Yes
|
| Counting direction switchable: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Customizing keys: |
Yes
|
| Inch/Metric switchable: |
Yes
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
Yes
|
| Type: |
Blade steel contact point
|

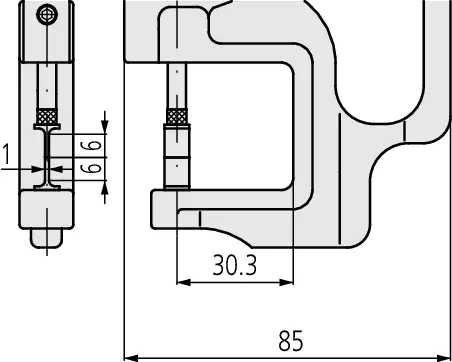

Mitutoyo ABS Digital Thickness Gauge, Dimensions
