Mitutoyo ABS Digital Thickness Gauge – Series 547 – 0-10mm, 0,01mm, 120mm Throat
$ 488.84 $ 391.07
SKU: Mitutoyo 547-321
Description: Mitutoyo ABS Digital Thickness Gauge, Manufacturer Part Number 547-321
This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
Mitutoyo ABS Digital Thickness Gauge Feature:
| Inch-Metric: |
Metric
|
| Functions: |
With indicator ID-C No. 543-400BS
|
| Range: |
0-10 mm
|
| Digital step: |
0,01 mm
|
| Accuracy: |
±20 µm
|
| Measuring force: |
≤ 1,5 N
|
| Parallelism: |
10 µm
|
| Indicator No.: |
543-400BS (ID-C)
|
| Max. measuring depth: |
120 mm
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
|
| Contact point: |
Thread M 2.5 x 0.45 mm
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 7000 hours
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Calculation function (with formula): |
Yes
|
| Counting direction switchable: |
Yes
|
| Digimatic S1 Bidirectional interface: |
Yes
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Customizing keys: |
Yes
|
| Inch/Metric switchable: |
Yes
|
| Calibration warning function: |
Yes
|
| Digital step switchable: |
Yes
|
| Type: |
Ceramic disc contact points and large jaw capacity
|

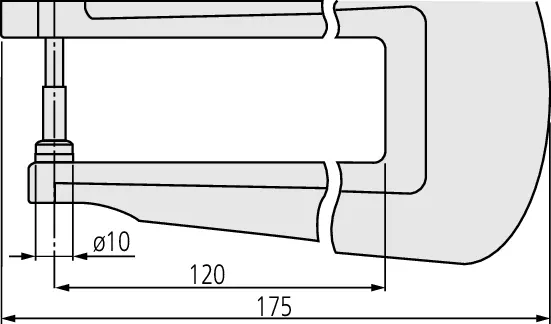

Mitutoyo ABS Digital Thickness Gauge, Dimensions
Variants
All products of product family Series 547:
 |
Digital Thickness Gauge, Flat Type |  |
ABS Digital Thickness Gauge with ID-S |
| 0-10mm, 0,01mm | Inch/Metric, 0-0,47″, 0,0005″, 4,72″ Throat | ||
| Mitutoyo Digital Thickness Gauge Part Number: 547-301A | Mitutoyo ABS Digital Thickness Gauge Part Number: 547-520S | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
ABS Digital Thickness Gauge |  |
ABS Digital Thickness Gauge |
| 0-10mm, , 0,01mm, Groove Depth | Inch/Metric, 0-0,4″, 0,0005″, Lens Thickness | ||
| Mitutoyo ABS Digital Thickness Gauge Part Number: 547-315 | Mitutoyo ABS Digital Thickness Gauge Part Number: 547-312S | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Thickness Gauge, Deep Throad | |
Digital Thickness Gauge, Flat Type |
| 0-10mm, 0,01mm | Inch/Metric, 0-0,4″, 0,0005″ | ||
| Mitutoyo Digital Thickness Gauge Part Number: 547-321A | Mitutoyo Digital Thickness Gauge Part Number: 547-300A | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Thickness Gauge, Lens Thickness |  |
Digital Thickness Gauge, Blade Type |
| 0-10mm, 0,01mm | Inch/Metric, 0-0,4″, 0,0005″ | ||
| Mitutoyo Digital Thickness Gauge Part Number: 547-313A | Mitutoyo Digital Thickness Gauge Part Number: 547-316A | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
ABS Digital Thickness Gauge with ID-S |  |
Digital Thickness Gauge, Lens Thickness |
| Inch/Metric, 0-0,47″, 0,0001″, Standard | Inch/Metric, 0-0,47″, 0,0005″ | ||
| Mitutoyo ABS Digital Thickness Gauge Part Number: 547-526S | Mitutoyo Digital Thickness Gauge Part Number: 547-512A | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
ABS Digital Thickness Gauge with ID-S |  |
Digital Thickness Gauge, Blade Type |
| Inch/Metric, 0-0,47″, 0,0005″, Standard | Inch/Metric, 0-0,47″, 0,0005″ | ||
| Mitutoyo ABS Digital Thickness Gauge Part Number: 547-500S | Mitutoyo Digital Thickness Gauge Part Number: 547-516A | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
Digital Thickness Gauge, Deep Throad | ||
| Inch/Metric, 0-0,4″, 0,0005″ | |||
| Mitutoyo Digital Thickness Gauge Part Number: 547-320A | |||
| For more : sales@inosaki.my | |||
Accessories
Optional accessories:
 |
Digimatic Cable, Flat Straight Type |  |
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| 1m | Wireless Transmitter for Micrometer | ||
| 905338 | 264-627 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
|
Digimatic Cable, Flat Straight Type |  |
U-WAVE fit Bluetooth, IP67 Type |
| 2m | Wireless Transmitter for Micrometer | ||
| 905409 | 264-626 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
USB Input Tool Direct (Digimatic USB) |  |
U-WAVE fit Transmitter Mounting Plate |
| Digi/Digi2, Flat Straight Type | for ID-C and ID-S Digital Indicator | ||
| 06AFM380F | 02AZF670 | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
U-WAVE fit, Buzzer Type (not IP rated) |  |
U-WAVE-T Connection Cable F |
| Wireless Transmitter for Micrometer | Flat Straight Type | ||
| 264-623 | 02AZD790F | ||
| For more : sales@inosaki.my | For more : sales@inosaki.my | ||
 |
U-WAVE fit, IP67 Type | ||
| Wireless Transmitter for Micrometer | |||
| 264-622 | |||
| For more : sales@inosaki.my | |||
Standard accessories:
 |
Spindle Lifting Lever |
| for S-Type Series 2,3,4 up to 10mm/0,4″ | |
| 21AZB149 | |
| For more : sales@inosaki.my |
Spare parts
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : sales@inosaki.my |
