Original price was: $ 320.62.$ 275.54Current price is: $ 275.54.

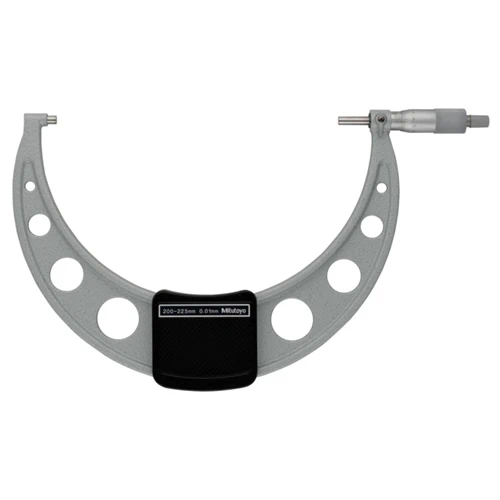

Mitutoyo 103-145-10 Outside Micrometer Economy Design, analog 200-225 mm, ±4 µm accuracy, carbide-tipped faces, satin chrome finish, reliable precision.
The Mitutoyo 103-145-10 Outside Micrometer Economy Design is a durable, cost-effective precision tool engineered for professionals who demand accurate external measurements. With a measuring range of 200–225 mm and a fine 0.01 mm graduation, it ensures consistent, repeatable readings. The carbide-tipped measuring faces provide long-lasting performance, while the satin chrome finish thimble and sleeve enhance readability. Delivered in a complete set with box, key, and setting standard, it’s designed for reliable everyday use.
The Mitutoyo 103-145-10 is an analog outside micrometer featuring a 200–225 mm measuring range, ±4 µm maximum permissible error, and 0.6 µm flatness accuracy. Equipped with a ratchet stop for repeatability, spindle lock, and carbide-tipped, micro-lapped measuring faces, it provides precision in a rugged, easy-to-handle design. The spindle pitch of 0.5 mm ensures smooth operation, while its satin chrome finish prevents glare and improves visibility. Lightweight for its size at 1080 g, this micrometer is suitable for workshop and inspection room applications.
Choose the Mitutoyo 103-145-10 for its unbeatable balance of affordability and performance. It offers precision measuring capabilities without compromising durability, making it ideal for both entry-level users and seasoned professionals. Its proven economy design ensures you get trusted Mitutoyo accuracy at a cost-effective price point. With robust carbide-tipped measuring faces and reliable ratchet-stop functionality, this micrometer is built to deliver consistent results across demanding industrial environments.
The Mitutoyo 103-145-10 solves the challenge of achieving reliable, repeatable external measurements in the 200–225 mm range without the expense of high-end digital instruments. In environments where accuracy, cost control, and durability matter, this micrometer bridges the gap by offering precision at an economical price. It helps eliminate errors from inconsistent measuring force with its ratchet-stop mechanism and ensures long-term performance through wear-resistant carbide-tipped anvils—making it an essential tool for manufacturing, inspection, and quality assurance tasks.
During final turning or grinding, operators verify large shafts and rollers before release to assembly. The ratchet mechanism ensures consistent measuring force, reducing variation between shifts. Carbide‑tipped faces resist wear from coolant residue and micro‑chips, while the satin chrome scale stays readable under bright task lights. A quick lock on the spindle lets inspectors record values hands‑free, improving traceability and first‑pass yield.
Fabricators check outside diameters of heavy-gauge tubes after weld and cleanup to confirm fit with sleeves or bushings. The analog scale avoids battery dependency in hot, high‑vibration bays, and the included setting standard helps crews confirm zero at the start of each shift. The tool’s robust frame and micro‑lapped faces maintain accuracy despite thermal fluctuation, helping prevent rework from mismatched joints and out‑of‑round parts.
Assembly teams validate bearing seats and housings to ensure interference/clearance targets are met. Consistent force from the ratchet stop reduces operator‑to‑operator differences, tightening Cp/Cpk. The spindle lock enables repeat checks at reference points without losing position, useful for gauge studies or GR&R. Durable carbide faces minimize drift over long runs, while analog readability accelerates spot checks where fast, reliable decisions matter more than data logging.
QA labs use the micrometer as a stable analog reference to cross‑check digital instruments when diagnosing measurement disputes. The fine graduation supports comparative studies, while the setting standard streamlines quick verification before gauge issue. Its rugged build and predictable feel help isolate technique errors versus instrument errors. As a battery‑free backup, it keeps inspection moving during unexpected downtime, protecting schedules and preventing bottlenecks.
| Feature | Details | Benefit |
|---|---|---|
| Measuring Range | 200 – 225 mm | Covers larger external dimensions, ideal for shafts, tubes, and housings. |
| Graduation | 0.01 mm | Ensures fine resolution for accurate readings in critical tolerance applications. |
| Maximum Permissible Error (J MPE) | ±4 µm | Provides reliable measurement confidence for quality assurance. |
| Flatness | 0.6 µm | Guarantees precise contact and improved accuracy across the measuring faces. |
| Parallelism | 4 µm | Maintains alignment consistency, reducing errors in repeat measurements. |
| Measuring Faces | Carbide-tipped, micro-lapped finish | Wear resistance for long service life and consistent performance. |
| Spindle | Ø6.35 mm with spindle lock, pitch 0.5 mm | Smooth operation with secure locking to hold measurements. |
| Scale | Satin chrome finish, Ø18 mm thimble and sleeve | Easy-to-read scale with reduced glare in bright lighting conditions. |
| Measuring Force | 5 – 10 N, ratchet stop | Ensures repeatable results by eliminating operator-dependent force variation. |
| Delivered Items | Supplied with box, key, and setting standard | Ready-to-use kit for immediate deployment and calibration. |
| Weight | 1080 g | Sturdy build for stability while remaining manageable for regular use. |

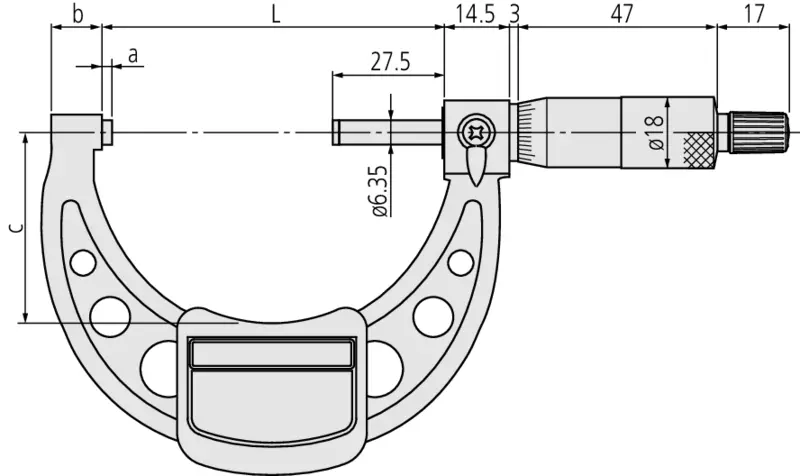

| Dimensions | 234.2 × 6.7 × 18 × 127 mm (L × a × b × c) | Compact yet robust design for workshop and inspection environments. |
| Standard Accessories | Setting Standard (Art. No. 167-108) | Facilitates quick zero-setting and calibration. |
| Optional Accessories | Micrometer Stand (Art. No. 156-102) | Enhances stability for long inspection sessions. |
| L: |
234.2 mm
|
| a: |
6.7 mm
|
| b: |
18 mm
|
| c: |
127 mm
|
 |
Outside Micrometer Economy Design |
 |
Outside Micrometer Economy Design |
 |
Outside Micrometer Economy Design |
