1. Pneumatic Cylinder Control in High-Speed Packaging Lines

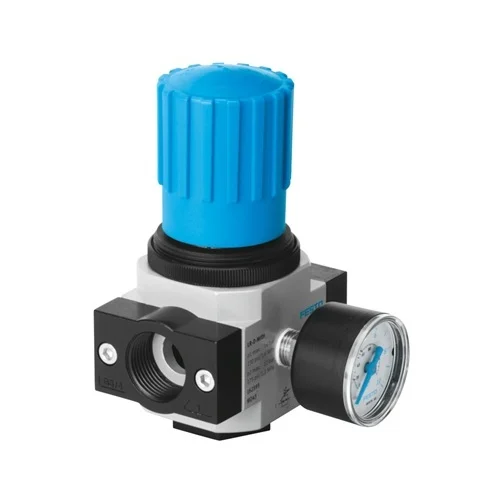

Utilizing the Festo LR-1/2-D-7-I-MIDI pressure regulator to regulate compressed air for heavy-duty pneumatic actuators in automated packaging machinery. The regulator effortlessly handles simultaneous actuation across the line thanks to its high flow capacity, providing stable downstream pressure even if the main plant compressor supply fluctuates.
Problem SolvedEliminates inconsistent cylinder actuation force and speeds caused by upstream pressure drops, preventing defective packaging seals or misaligned cuts during high-speed production cycles.
4000 l/min standard nominal flow ratePrimary pressure compensationPressure regulation range 0.5 bar ... 7 barDirectly actuated diaphragm regulator
2. Atomization Air Supply for Industrial Paint Spraying Systems
Deploying the regulator to control the air supply for automated spray nozzles in automotive or heavy-machinery coating booths. The unit's secondary venting and tight hysteresis ensure the atomization pressure remains strictly constant, while its die-cast zinc housing and NBR seals provide durability in challenging industrial environments.
Problem SolvedPrevents uneven paint coating thickness, overspray, or sputtering issues caused by pressure surges or minor hysteresis in the air supply during intermittent automated spraying operations.
Max. pressure hysteresis 0.2 barOutput pressure constantWith secondary ventingDie-cast zinc housingMaterial seals NBR
3. Robotic Pick-and-Place End Effector Force Regulation
Serving as the primary pneumatic control module for robotic assembly stations. The regulator uses its standard G1/2 pneumatic ports to integrate easily into the factory air network, while its lockable adjustment mechanism guarantees the pressure settings for pneumatic grippers remain untampered and precise.
Problem SolvedSolves the critical issue of varying gripping strengths in robotic end effectors, preventing the accidental crushing of delicate components or the dropping of heavy parts due to accidental pressure shifts.
G1/2 pneumatic connectionRotary knob with detentWith return flow functionOperating pressure 0 bar ... 16 bar
