1. Pneumatic Actuation Supply for High-Speed Packaging Lines

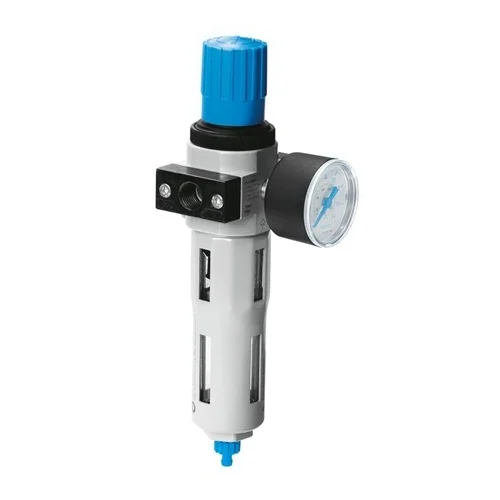

Utilizing the Festo LFR filter regulator to condition compressed air supplied to multi-cylinder pneumatic networks in secondary packaging equipment. It steps down fluctuating factory line pressure and removes particulates before the air reaches sensitive solenoid valves and cylinders.
Problem SolvedPrevents premature wear of downstream pneumatic actuators by filtering out 40 µm particles and manually draining accumulated condensate. The robust 3400 l/min standard nominal flow rate ensures zero pressure drops even when multiple high-speed cylinders actuate simultaneously.
3400 l/min flow rate40 µm filtration0.5 bar ... 12 bar regulation rangeG1/2 port connection
2. Inert Gas Pressure Regulation for Chemical Tank Blanketing
Deploying the LFR-1/2-D-MIDI-MPA to regulate the flow of inert gases used for blanketing storage tanks. The regulator provides a steady, controlled-pressure gas layer (e.g., nitrogen) over volatile chemicals or food products to prevent oxidation, spoilage, or combustion.
Problem SolvedSafely and reliably reduces high supply line pressures (up to 1.6 MPa / 16 bar) down to precise operating levels to prevent tank overpressurization. Its specific certification for 'Inert gases' ensures material compatibility and safe operation in process engineering environments.
Inert gases compatibility16 bar max operating pressureDie-cast zinc housingRotary knob with detent actuator lock
3. Main Air Drop Conditioning for Automotive Robotic Assembly Cells
Installing the filter regulator at the point-of-use compressed air drop for an automotive robotic cell. It guarantees that pneumatic clamps, end-of-arm tooling, and blow-off nozzles receive clean, accurately pressurized air in harsh factory environments prone to mechanical stress and moderate corrosion.
Problem SolvedMitigates standard factory air pressure hysteresis (kept to max 0.2 bar) and protects fragile end-effectors from debris. The metal bowl guard and CRC 2 (Moderate corrosion stress) rating ensure operational survivability against accidental physical impacts and ambient factory moisture.
Metal bowl guardCRC 2 moderate corrosion stress0.2 bar max pressure hysteresisManually rotating condensate drain
