1. Flexible End-of-Line Palletizing Gripper

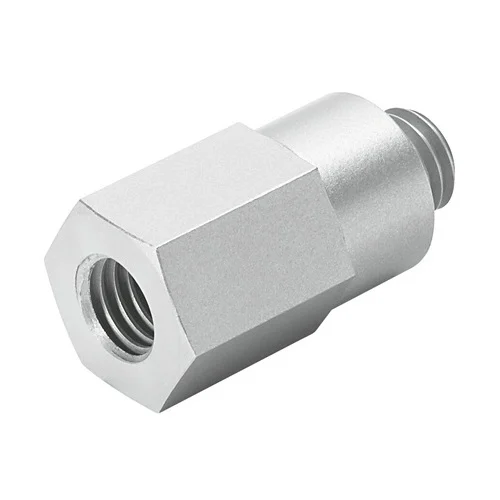

Integration of the ISV-M6 into a large-area vacuum gripping system for palletizing varying box sizes and layer patterns in logistics centers. The valve is installed directly at the M6 port of each individual suction cup within the gripper matrix.
Problem SolvedIn standard palletizing, changing box sizes or incomplete layers leave some suction cups exposed to open air, causing immediate system vacuum loss and dropped loads. The ISV-M6 automatically closes off these unsealed cups based on airflow velocity, allowing a single gripper tool to handle mixed SKUs and random patterns without complex valving or tool changes.
Vacuum security valvePassive flow switchingM6 pneumatic connectionFlow rate > 2 l/min triggerParallel suction cup arrangement
2. High-Speed Electronics Component Tray Unloader
Use in robotic pick-and-place end-effectors for handling batches of PCBs or electronic components (e.g., battery cells) from trays. The lightweight (14g) valve mounts inline with miniature suction cups to minimize robot arm inertia.
Problem SolvedWhen picking components from partially filled trays or if a component is missing, open suction cups would normally deplete the vacuum level for the successfully gripped parts. The ISV-M6 isolates the open lines, ensuring the remaining components are held securely at -0.95 bar, reducing scrap rates and eliminating the need for camera-based individual cup control.
Pick and place automationVacuum retention-0.95 bar operating pressure14g lightweight designEjector pulse ≤ 8 bar
3. Stamped Sheet Metal Transfer System
Application in press shop automation for transferring sheet metal parts with irregular cutouts or holes. The ISV-M6 is screwed directly into the suction cup holders on the transfer spider.
Problem SolvedSuction cups often land on holes, die-cuts, or edges of stamped metal parts, creating massive leaks that compromise the grip on the metal panel. The valve's sintered bronze filter protects against oily environments while the float mechanism instantly seals leak paths. The 8 bar ejector pulse compatibility ensures rapid, forceful part release during high-speed press cycles.
Sheet metal handlingLeak compensationSintered bronze filterEjector pulse compatibilityScrew-in mounting
