Discover the IDS U3-36P2XLE Rev.1.2, a 20 MP USB3 industrial camera delivering high-resolution imaging, low power use, and compact design for precision vision.

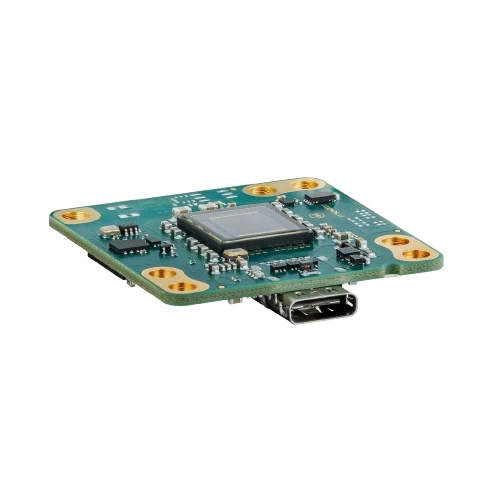

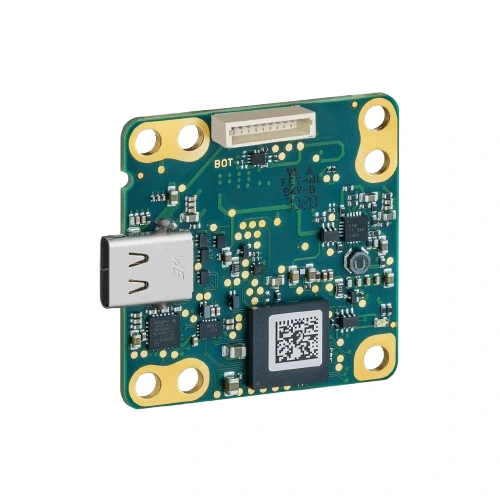

The IDS U3-36P2XLE Rev.1.2 is a 20 MP USB3 industrial camera built for applications requiring sharp detail and reliability in a small form factor. Equipped with the Onsemi AR2020 CMOS sensor, it captures images at 5136 × 3856 resolution with a 1.4 µm pixel size, ensuring accurate detail reproduction. Operating at up to 14 frames per second in free-run or triggered modes, it offers the precision needed for inspection, measurement, and high-quality image acquisition. Its lightweight 36 × 36 × 8 mm design makes it an ideal choice for integration where space and performance are equally critical.
The U3-36P2XLE Rev.1.2 series, available in both color and monochrome models, combines high-resolution output with a compact, lightweight design. With low power consumption, USB Type-C interface, and flexible triggering options, the camera is easy to integrate into new or existing systems. Features such as region of interest adjustment, 2×2 binning, and upgradable firmware enhance adaptability across projects. Whether in quality inspection, laboratory analysis, or precision metrology, it delivers consistent and accurate results. This makes it a reliable imaging solution for engineers, researchers, and manufacturers who need dependable high-resolution performance in a compact footprint.
Why IDS U3-36P2XLE Rev.1.2?
Because it delivers the power of a 20 MP high-resolution sensor in a design no larger than a matchbox, the IDS U3-36P2XLE Rev.1.2 is a perfect balance of performance and flexibility. It offers crystal-clear detail, efficient USB3 connectivity, and ultra-lightweight integration, making it the go-to choice for system builders and engineers who demand compact precision without compromising quality.
What problem does it solve?
The U3-36P2XLE Rev.1.2 addresses the challenge of capturing ultra-detailed images in space-limited setups where traditional cameras are too bulky or power-hungry. By combining high pixel density with energy efficiency and easy plug-and-play integration, it eliminates bottlenecks in industrial inspection, scientific analysis, and metrology — ensuring reliable imaging performance in environments where accuracy and compactness are essential.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Onsemi AR2020 CMOS (Color / Mono) | High-quality 20 MP imaging with precise detail capture |
| Interface | USB Type-C | Easy integration with modern systems |
| Interface Speed | USB 3.0 (SuperSpeed) | Fast data transfer for real-time imaging |
| Resolution (HxV) | 5136 × 3856 pixels (19.8 MP) | Ultra-high resolution for detailed inspections |
| Optical Area (HxV) | 7.168 mm × 5.376 mm | Large sensor surface for improved light sensitivity |
| Optical Format | 1/1.8″ (Diagonal 8.96 mm) | Standardized format for broad lens compatibility |
| Lens Mount | Board-level (no lens mount pre-installed) | Flexible system design and lens adaptation |
| Pixel Size | 1.4 µm | Fine pixel pitch for high-precision imaging |
| Image Memory | On-host via IDS peak software | Optimized processing and storage efficiency |
| Frame Rate @ Max. Resolution | 14 fps | Smooth image capture at full resolution |
| Shutter | Rolling shutter | High-quality imaging for static and semi-dynamic scenes |
| Exposure Time | 0.017 ms – 1144 ms | Wide exposure range for diverse lighting conditions |
| Trigger & Flash I/O | 1× trigger input, 1× flash output, 2× GPIO | Reliable synchronization with external devices |
| Power Supply | 5 V via USB, max. 400 mA | Simple, low-power consumption (0.5 – 1.1 W) |
| Software Tools | IDS peak SDK support | Advanced image control, processing, and flexibility |
| Environmental Tolerance | Operating: 0 °C – 60 °C; Storage: -20 °C – 80 °C; Humidity: 20% – non-condensing | Reliable operation in industrial and laboratory environments |
| Housing Protection | Open board-level (no IP rating) | Ultra-lightweight design for embedded applications |
| Size & Weight | 36 × 36 × 8 mm, 7 g | Extremely compact and lightweight for space-limited setups |
Download U3-36P2XLE-C Rev.1.2 Datasheet (1011200)
Download U3-36P2XLE-M Rev.1.2 Datasheet (1011201)
Download U3-36P2XLE Rev.1.2 Technical Drawing
Modern electronic assemblies pack thousands of micro-scale features into small areas, making defect detection increasingly difficult. With its 20 MP resolution, the U3-36P2XLE captures intricate solder joints, fine traces, and connector pins in remarkable clarity. Engineers can apply region-of-interest scanning to speed up image capture while still preserving overall context for traceability. The sensor’s sensitivity helps balance reflective pads and dark components, ensuring consistent results even with complex lighting conditions. By combining high detail with compact dimensions, this camera enables automated optical inspection stations to identify flaws such as lifted pads, solder bridges, and micro-cracks that could compromise product reliability.
For applications requiring accurate 3D modeling or dimensional measurement, image density is critical. The U3-36P2XLE provides a dense pixel grid that improves the precision of structured-light scanning or photogrammetry workflows. Even small surface textures and fine geometries are captured with accuracy, allowing for cleaner mesh creation and reliable CAD comparisons. The broad resolution reduces the need for excessive magnification, preserving depth of field while maintaining accuracy on complex parts. This balance makes the camera well-suited for inline metrology, reverse engineering, and automated measurement tasks, ensuring consistent quality control and precise validation across production environments and research applications.
Autonomous robots require dependable vision systems that combine compact size with rich image data. The U3-36P2XLE delivers high-resolution frames that enhance object recognition, localization, and feature tracking, which are essential for simultaneous mapping and navigation. Its lightweight design and low power requirements make it ideal for multi-camera setups in mobile platforms where efficiency matters. Engineers benefit from the ability to synchronize multiple units, providing robots with wide field coverage while retaining fine detail for obstacle avoidance and grasping tasks. By improving the accuracy of environmental mapping and decision-making, the camera strengthens robotic reliability in logistics, manufacturing, and service robotics.
Security and identification systems rely on clear, detailed images to perform accurate biometric matching. The U3-36P2XLE’s 20 MP sensor captures subtle facial features and fine eye details from a single shot, reducing the need for repeated scans. Its strong response across varied lighting conditions ensures reliable results in environments such as access gates, border checkpoints, and enrollment kiosks. Compact integration allows designers to build slim, modern terminals without sacrificing image quality. By combining high resolution with advanced triggering options, the camera provides consistent performance for identity verification and authentication, improving both security accuracy and user throughput in high-traffic settings.
Urban monitoring systems must capture both broad scenes and fine details like license plates or pedestrian movement. The U3-36P2XLE’s high pixel density allows operators to digitally zoom into specific areas while maintaining overall context. Its wide dynamic capability supports environments with harsh lighting contrasts, such as roadways with bright skies and shaded lanes. Low power draw makes it suitable for solar-powered or PoE-enabled enclosures, reducing installation complexity. Integrators can rely on this model for applications such as traffic flow analysis, perimeter security, and smart city surveillance, where both accuracy and reliability are essential for safety, enforcement, and operational planning.
