$ 315.79 $ 338.33Price range: $ 315.79 through $ 338.33

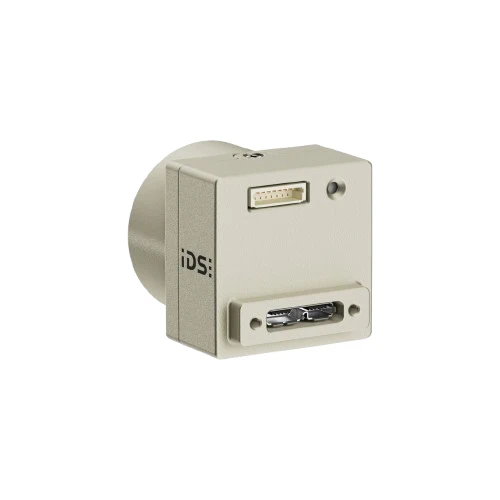

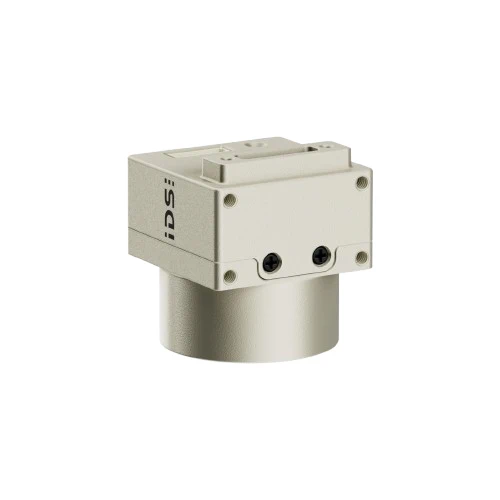

IDS U3-33D0XCP: 3.2 MP Sony IMX900 global shutter, 67 fps, 29×29 mm C‑mount. Sharp imaging for inspection, robotics, and embedded vision.
Product Overview
The IDS U3-33D0XCP series delivers high-speed 3.2 MP imaging in a compact 29 × 29 mm C-mount form factor, making it ideal for demanding machine vision and embedded applications. Powered by Sony’s advanced IMX900 global shutter CMOS sensor, it captures sharp, distortion-free images at up to 67 fps over a USB 3.0 interface. With a rugged zinc-nickel plated housing, IP30 protection, and low power consumption, the camera performs reliably in industrial environments from 0°C to 55°C. Multiple variants, including monochrome, color, and glass/no-glass protective cover options, allow precise adaptation to application needs while maintaining consistent high-quality image output.
Product Description & Real-World Benefits
Engineered for precision imaging, the IDS U3-33D0XCP series excels in applications requiring high frame rates, accurate detail capture, and reliable synchronization. The global shutter ensures sharp imaging of moving objects, while the small 2.25 μm pixels deliver fine resolution in a compact optical format. Its robust trigger and I/O options, combined with USB 3.0 micro-B connectivity, make integration straightforward for automation, inspection, and embedded vision projects. With on-board image processing, ROI selection, and 12-bit depth, users gain flexibility for both high-contrast and low-light conditions. This series empowers OEMs and system integrators to build fast, space-efficient, and dependable imaging solutions.
Why IDS U3-33D0XCP Series?
Because it blends cutting-edge Sony IMX900 sensor technology with compact, rugged design, delivering high-speed, high-fidelity images where precision matters most.
What Problem Does It Solve?
The IDS U3-33D0XCP series eliminates motion blur, bulky camera setups, and integration headaches by offering sharp global-shutter imaging at 67 fps in a space-saving 29 mm housing—perfect for capturing fast-moving details without sacrificing clarity or installation flexibility.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX900 (Mono: AMR-C, Color: AQR-C) | Industry-leading global shutter sensor for distortion-free imaging of moving objects. |
| Interface | USB 3.0 Micro-B, screw-locking | High-speed data transfer with secure industrial connection. |
| Interface Speed | Up to 5 Gbps | Ensures smooth transmission of full-resolution images at high frame rates. |
| Resolution (HxV) | 2064 × 1552 pixels (3.20 MP) | Captures fine details for inspection, robotics, and measurement tasks. |
| Optical Area (HxV) | 4.644 mm × 3.492 mm | Optimal field of view for compact optical systems. |
| Optical Format | 1/3.1″ (Diagonal 5.81 mm, 1/2.75″) | Fits a wide range of industrial C-mount lenses. |
| Lens Mount | C-Mount | Broad compatibility with high-quality industrial optics. |
| Pixel Size | 2.25 µm | High resolution in a small optical footprint, ideal for space-constrained designs. |
| Image Memory | On-host via IDS peak software | Flexible storage and processing on connected system. |
| Frame Rate @ Max. Resolution | 67 fps | High-speed capture for dynamic scenes and real-time inspection. |
| Shutter | Global Shutter | Eliminates motion blur for fast-moving objects. |
| Exposure Time | 0 ms to 1999 ms | Wide exposure range for both bright and low-light environments. |
| Trigger & Flash I/O | 8-pin Wuerth connector: Trigger in, Flash out, 2× GPIO, 3.3V output | Supports precise synchronization in automated setups. |
| Power Supply | USB bus-powered (5 V, max. 400 mA) | Simplifies integration—no external power required. |
| Software Tools | IDS peak SDK & drivers | Streamlined setup, control, and image processing tools. |
| Environmental Tolerance | Operating: 0°C to 55°C; Storage: −20°C to 60°C; Humidity: 20–80% non-condensing | Reliable operation in diverse industrial conditions. |
| Housing Protection | IP30, zinc-nickel plated housing | Durable and resistant to environmental wear in indoor applications. |
| Size & Weight | 29 × 29 × 17 mm; 62 g | Ultra-compact for easy integration into tight spaces. |
High-Speed Barcode & Direct Part Mark Verification
The U3-33D0XCP with Sony IMX900 captures sharp, high-resolution images even on fast conveyor lines. Its 67 fps frame rate and global shutter freeze motion, ensuring barcodes and engraved part marks remain crisp. By using region-of-interest settings, processing speeds up while focusing only on code areas. The small optical format enables close mounting to products without losing depth of field, reducing read errors and maintaining consistent production throughput, even when items are vibrating or positioned at slight angles.
Robotic Bin-Picking and Docking Assistance
Compact and lightweight, the U3-33D0XCP fits easily onto robotic arms or mobile robots. The IMX900’s global shutter freezes movement during fast pick-and-place operations, while its small pixel size captures fine object details for precise positioning. The camera’s size and C-mount design allow integration into tight spaces, and high-speed USB3 transfer minimizes data lag. This results in more accurate robotic guidance, reduced docking errors, and improved efficiency in busy industrial or warehouse environments.
Inline Inspection of Small Components
Ideal for electronics and precision manufacturing, the U3-33D0XCP detects fine details such as solder joints, connector pins, or micro-scratches. Its global shutter ensures distortion-free images during fast-moving assembly lines, while high-resolution capture supports precise measurement and defect detection. Using short exposure times under controlled lighting prevents blur, enabling stable and reliable inspection. This allows manufacturers to maintain high quality standards while keeping production speeds optimized.
Motion Tracking in Traffic and Sports Analysis
The U3-33D0XCP’s ability to maintain geometric accuracy with its global shutter makes it perfect for tracking high-speed subjects like vehicles or athletes. Its high frame rate reduces motion artifacts, while strong low-light performance supports nighttime or indoor events. The small optical size works well with long focal length lenses, making the camera suitable for fixed roadside monitoring or discreet sports analytics setups. The result is consistent, clear image data for accurate speed measurement and movement analysis.
Embedded Vision for Smart Devices
For OEMs developing compact imaging systems, the U3-33D0XCP offers consistent image quality in a small footprint. Its compatibility with industrial C-mount lenses and high-speed USB3 interface allows quick integration into embedded systems such as inspection kiosks, compact quality control units, or portable machine vision devices. With global shutter performance and support for precise triggering, it enables dependable image capture in space-constrained, high-demand environments.
IDS Accessories (Recommended)
C-Mount Lenses (IDS Approved) – Optimized for 1/3.1″ sensors
USB 3.0 Industrial Cables – Screw-locking for secure data transfer
GPIO/Trigger Interface Boards – Enable precise flash and trigger control
Tripod Mount Adapters – For stable and flexible camera positioning
Protective Lens Covers – For sensor and lens protection in harsh environments
IDS Imaging Cameras
U3-33D0XCP-M-NO – 3.2 MP Mono Global Shutter, No Protective Glass
U3-33D0XCP-M-GL – 3.2 MP Mono Global Shutter, Protective Glass
U3-33D0XCP-C-HQ – 3.2 MP Color Global Shutter, High Quality Color Output
U3-3271LE Series – 3.2 MP IMX265 in Compact USB3 Format
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS Imaging U3-33D0XCP camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
