Key Features & Specifications – IDS GV-54L2LE Rev.2: Color: 1011618, Mono: 1011620
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX676 (Color: IMX676-AACR1-C, Mono: IMX676-AAMR1-C) | Delivers exceptional image clarity with high sensitivity and low noise. |
| Interface | GigE Vision (RJ45) | Enables fast, reliable data transfer over long distances with standard Ethernet. |
| Interface Speed | 1 Gbps | Supports smooth image streaming without frame loss. |
| Resolution (HxV) | 3552 × 3552 pixels (12.62 MP) | Captures ultra-detailed images with a square 1:1 aspect ratio. |
| Optical Area (HxV) | 7.104 mm × 7.104 mm | Provides precise imaging area for accurate measurements. |
| Optical Format | 1/1.7″ (Diagonal 10.05 mm) | Balances field of view and magnification for various lenses. |
| Lens Mount | Board-level (no fixed mount) | Offers flexibility to integrate into custom optical systems. |
| Pixel Size | 2 µm | Resolves fine textures and small defects with high precision. |
| Image Memory | Managed via host system (IDS peak software) | Efficient handling of large image data without camera slowdown. |
| Frame Rate @ Max. Resolution | 9.9 fps (max. 11 fps with trigger) | Ensures high-quality captures without sacrificing detail. |
| Shutter | Rolling Shutter | Provides high resolution while minimizing motion blur in controlled scenes. |
| Exposure Time | 0.047 ms – 1999 ms (up to 119.977 s long exposure) | Suitable for both fast captures and long-duration low-light imaging. |
| Trigger & Flash I/O | 1× trigger input, 1× flash output, 2× GPIO, I²C | Flexible synchronization with other devices in automation setups. |
| Power Supply | 12–24 V DC | Compatible with a wide range of industrial power sources. |
| Software Tools | IDS peak software suite | Offers image processing, bandwidth control, and firmware updates. |
| Environmental Tolerance | Operating temp: 0°C to 40°C; Humidity: 20–80% | Reliable performance in diverse industrial environments. |

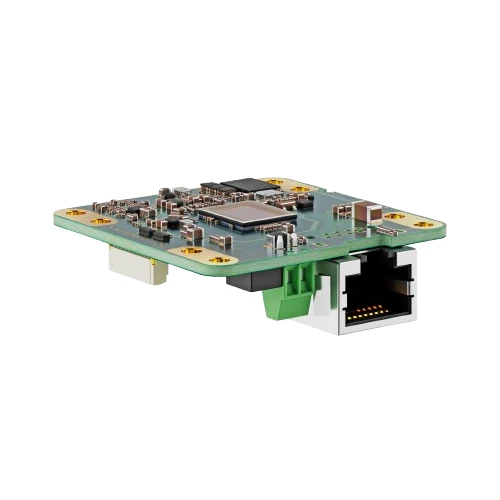

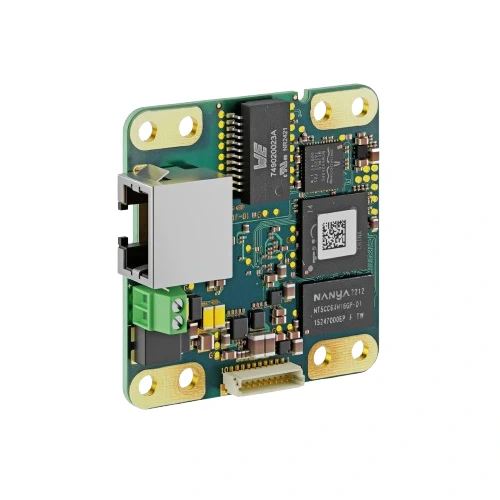

| Housing Protection | Board-level, no housing (integration-ready) | Ideal for embedded systems and OEM applications. |
| Size & Weight | 45 × 45 × 15 mm; 15 g | Compact and lightweight for space-limited installations. |
Download GV-54L2LE-M Rev.2 1011620 Datasheet
Download GV-54L2LE-C Rev.2 1011621 Datasheet
Download GV-54L2LE Rev.2 Technical Drawing
IDS GV-54L2LE Rev.2 Real-World Applications Powered by Sony IMX676
1. Long-Range Vehicle Recognition in Toll Systems
High-speed toll collection systems benefit from the IMX676’s ability to capture crisp, high-resolution images using a narrow-angle lens setup. Even at long distances, license plates and vehicle identification tags remain clear and legible. Its strong low-light performance ensures reliable imaging at night or in shaded areas like tunnels, reducing errors and improving automation efficiency in traffic management.
2. Wide-Area Surveillance for Smart Cities
In urban monitoring, the IMX676 can be paired with ultra-wide or fisheye optics to capture expansive, panoramic scenes in a single frame. The square sensor format reduces distortion while retaining fine detail across the image. This allows authorities to monitor public spaces, events, or intersections with fewer cameras, improving coverage while minimizing blind spots.
3. Vision Systems for Robotics and Drones
Autonomous robots and drones use the IMX676 to achieve detailed, real-time imaging while keeping hardware lightweight. With high frame rates at full resolution, the sensor provides smooth video for navigation and mapping in fast-changing environments. Its compact size and low power usage make it well-suited for aerial devices where weight and battery life are critical constraints.
4. Night-Time and Low-Light Security Imaging
The IMX676’s advanced sensor technology excels in capturing scenes in near darkness, using both visible and near-infrared light. This allows security cameras to maintain high image quality at night without heavy reliance on artificial lighting. It can capture subtle details and textures even in challenging lighting, helping improve identification and monitoring accuracy.
5. Microscopy and High-Precision Scientific Imaging
The square resolution of the IMX676 matches well with circular microscope optics, avoiding unnecessary cropping and making full use of the imaging area. Its small pixel size delivers sharp, high-magnification images of specimens or materials, while strong light sensitivity ensures clear results under varying illumination. This makes it a valuable tool for biological research, material inspection, and advanced laboratory work.
