$ 311.19
IDS GV-54J1LE Rev.2: 8 MP GigE S-Mount camera with Sony IMX678, up to 17 fps and long-exposure support. Compact, color or mono for precise industrial imaging.
Product Overview

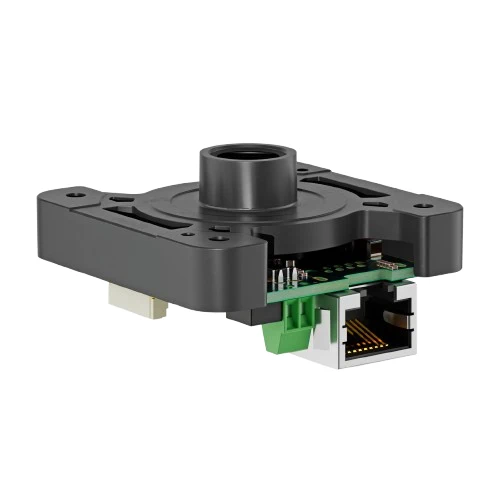

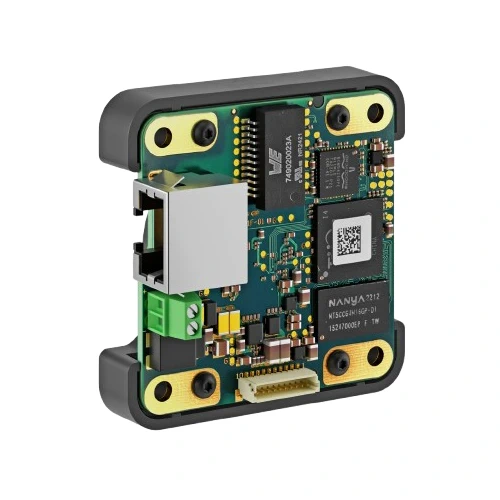

The IDS GV-54J1LE Rev.2 is a compact GigE vision camera designed for industrial applications that demand high-resolution performance. Featuring the advanced Sony IMX678 CMOS sensor, it captures 8.39 MP images at up to 17 frames per second. Available in both color and monochrome versions, it offers precise imaging in a space-saving 50 × 50 × 28.5 mm housing. With its S-Mount lens interface, low power requirements, and broad operating temperature range, the GV-54J1LE Rev.2 is a reliable choice for inspection, measurement, and embedded vision tasks, ensuring consistent quality and long-term deployment in demanding environments.
Product Description
This model blends cutting-edge sensor technology with a robust GigE interface to deliver clear, finely detailed images across a wide range of industrial uses. Its small form factor allows easy integration into tight spaces or multi-camera systems, while the extended exposure capability supports low-light imaging. Multiple trigger modes enable accurate timing in synchronized setups, and the high pixel density ensures sharp detail for defect detection, dimensional analysis, and process automation. Built with stability and efficiency in mind, the GV-54J1LE Rev.2 provides dependable operation and image consistency in fast-paced production workflows.
Why IDS GV-54J1LE Rev.2?
Because it delivers exceptional image clarity in a compact, industrial-grade design. This 8 MP GigE camera blends cutting-edge Sony sensor technology with flexible S-Mount optics, giving engineers the freedom to capture fine details in even the most space-limited systems. It’s built for speed, accuracy, and long-term reliability in demanding environments.
What Problem Does It Solve?
It removes the compromise between size, performance, and precision. The GV-54J1LE Rev.2 enables high-resolution imaging where space is tight, light is limited, or timing is critical. From detecting microscopic defects to capturing fast-moving processes, it ensures every frame delivers actionable detail for smarter decision-making and higher production quality.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX678 CMOS (Color: IMX678-AAQR1-C, Mono: IMX678-AAMR1-C) | High sensitivity and sharp image quality for industrial vision tasks |
| Interface | Gigabit Ethernet (GigE) RJ45 | Long cable runs and reliable, high-speed data transfer |
| Interface Speed | 1 Gbps | Smooth transmission of high-resolution images |
| Resolution (HxV) | 3856 × 2176 (8.39 MP) | Captures fine details for precise inspection and analysis |
| Optical Area (HxV) | 7.712 mm × 4.352 mm | Wide field of view with high pixel density |
| Optical Format | 1/1.8″ (Diagonal 8.86 mm) | Supports a range of compact lenses for flexible setups |
| Lens Mount | S-Mount | Lightweight, space-saving integration for embedded systems |
| Pixel Size | 2 µm | High detail capture, even with small optics |
| Image Memory | Managed via host PC using IDS peak software | Flexible image processing without on-board memory constraints |
| Frame Rate @ Max. Resolution | Up to 17 fps (triggered mode) | Adequate speed for production-line inspection |
| Shutter | Rolling shutter | Cost-effective, high-resolution imaging |
| Exposure Time | 0.026 ms to ~1999 ms (up to ~120 s long exposure) | Handles both high-speed and low-light applications |
| Trigger & Flash I/O | Hardware & software trigger, GPIO, flash output | Precise synchronization in multi-camera setups |
| Power Supply | 12 V – 24 V DC | Flexible integration with various system power sources |
| Software Tools | IDS peak software suite | Easy configuration, image optimization, and integration |
| Environmental Tolerance | Operating: 0 °C to 40 °C, Storage: –20 °C to 60 °C, Humidity: 20–80% non-condensing | Stable performance across typical industrial conditions |
| Housing Protection | — (PCB and housing follow IDS design specs) | Suitable for integration into protected enclosures |
| Size & Weight | 50 × 50 × 28.5 mm, 30 g | Compact, lightweight, easy to mount in tight spaces |
| Additional Features | Long exposure mode, bandwidth management, PTP time synchronization | Enhanced performance in specialized vision tasks |
Download GV-54J1LE-C (1011657) Datasheet
Download GV-54J1LE-M (1011659) Datasheet
Download GV-54J1LE Rev.2 Technical Drawing
Urban monitoring systems can use IMX678-powered cameras to deliver sharp, detailed footage in both bright daylight and dimly lit streets. The sensor’s enhanced low-light sensitivity ensures that street-level activities remain visible at night, while its wide dynamic range balances shadows and highlights. This combination helps improve safety, traffic monitoring, and rapid incident response for city infrastructure.
In automotive vision systems, the IMX678 provides the clarity and detail needed for recognizing road signs, detecting lane markings, and spotting obstacles at various distances. Its ability to handle high-contrast scenes—such as headlights against a dark road—ensures that advanced driver assistance and autonomous navigation systems can operate reliably in challenging conditions.
Manufacturing lines benefit from the IMX678’s high resolution when inspecting products for defects or alignment issues. The detailed imagery allows even the smallest imperfections to be detected early in the process. This capability supports quality control, dimensional measurement, and robot guidance, ensuring consistent product standards and minimizing costly errors.
When integrated into ruggedized cameras, the IMX678 excels in perimeter security and infrastructure monitoring. Its robust imaging performance withstands variable outdoor lighting, from bright sun to deep shadows, and its dynamic range ensures details are preserved in every frame. This makes it an excellent fit for long-term deployment in critical facilities or public spaces.
Researchers and creators can take advantage of the IMX678’s sensitivity for applications such as astronomy, microscopy, or wildlife observation at night. The sensor captures fine detail in low-light conditions, enabling clear images without excessive noise. Its high resolution also allows for cropping and zooming without losing important image quality, making it versatile for scientific studies and creative projects alike.
IDS Accessories (Recommended)
S-Mount Lenses (IDS Approved) – Optimized for 1/1.8″ sensors, ensuring sharp edge-to-edge image quality
GigE Hubs and Cables – Designed for stable, high-speed data transfer over long distances
GPIO Interface Boards – Enable precise trigger and flash synchronization with breakout access
Power Supply Units (12–24 V DC) – Reliable and compatible with industrial camera systems
Mounting Brackets and Tripods – Secure and flexible positioning for diverse setups
IDS Imaging Cameras
GV-51A2SE Series – 3.2 MP Sony IMX265 GigE Camera for compact industrial imaging
U3-3271LE Series – 3.2 MP Sony IMX265 in USB3 format for embedded vision applications
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS Imaging GV-54J1LE Rev.2 – 8 MP camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
